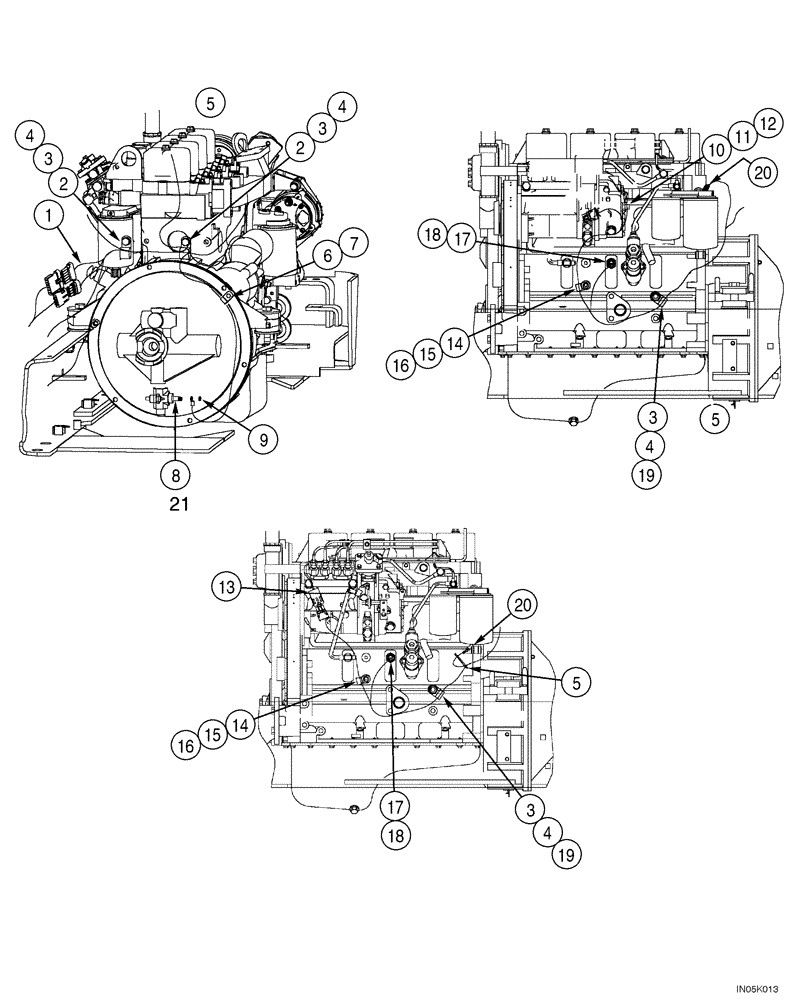

Запчасти Case 550H-IND (04-10) - HARNESS, FRONT, ENGINE LEFT HAND SIDE AND REAR (04) - ELECTRICAL SYSTEMS

1

338943A1

HARNESS

Front; No Longer Available, Order 338943A2 Ref. 1A

1шт.

1a

338943A2

HARNESS

Front, Not Illustrated See Figure(s): 04-06, 04-07

1шт.

2

515-25286

CLAMP,1 1/8", Insul, 3/8" Bolt

2шт.

3

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

3шт.

4

892-11012

LOCK WASHER,M12

4шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 Inch, Nylon

1шт.

6

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

(7.9 mm)

1шт.

7

R54620

BOLT,Hex, Flange, M10 x 35mm CL 10.9

Special

1шт.

8

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Sender

1шт.

9

193-1000

NUT,Keps, w/LW,#10-32

No. 10 NF

1шт.

10

REF

INSTRUCTION

Harness Models With Naturally Asperated Engine Supplied With Engine See Page(s) : 03-13

1шт.

11

REF

INSTRUCTION

Solenoid Models With Naturally Asperated Engine Supplied With Engine See Figure(s) : 03-13

1шт.

12

REF

INSTRUCTION

Switch Models With Naturally Asperated Engine Supplied With Engine See Page(s) : 03-13

1шт.

13

REF

INSTRUCTION

Solenoid Models With Turbocharger Supplied With Engine See Figure(s) : 03-14

1шт.

14

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

15

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

16

892-11008

LOCK WASHER,8mm ID

1шт.

17

277016A1

PRESSURE SWITCH

Engine Oil, M10, Includes 18

1шт.

18

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

19

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

1шт.

20

A172117

SWITCH

Ether Temperature

1шт.

21

892-11005

LOCK WASHER,M5

1шт.
