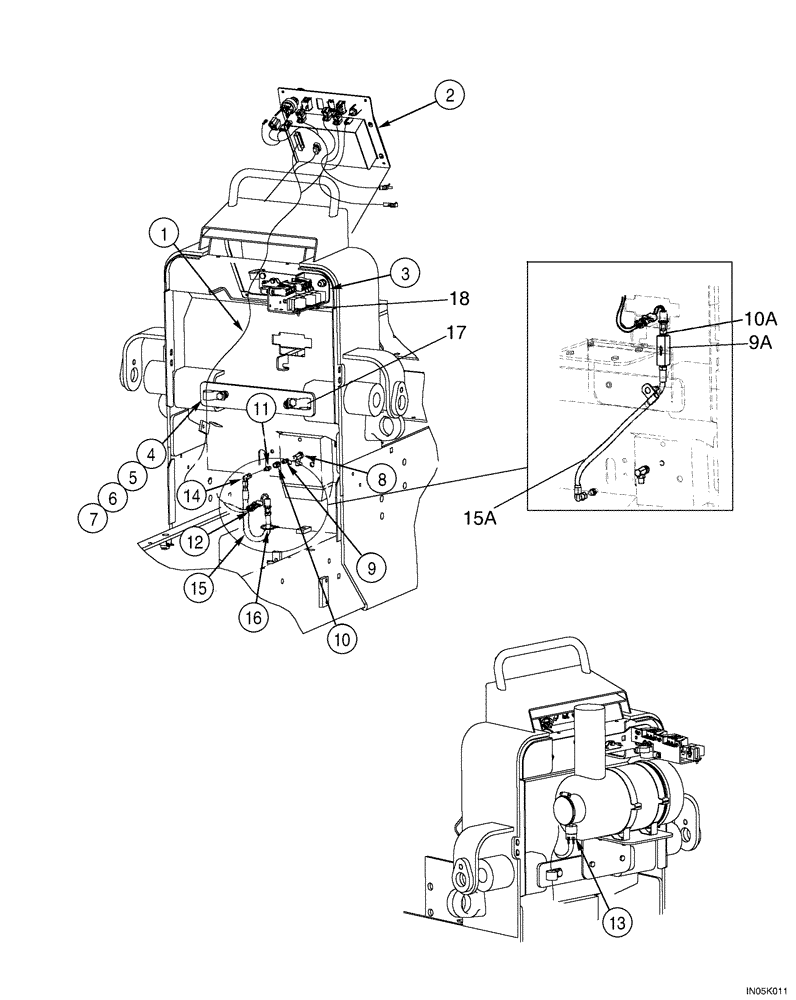

Запчасти Case 550H-IND (04-08) - HARNESS, FRONT, FRONT HARNESS AT COWL (04) - ELECTRICAL SYSTEMS

1

338943A1

HARNESS

Front; No Longer Available, Order 338943A2, Ref.1A

1шт.

1a

338943A2

HARNESS

Front, Not Illustrated See Figure(s): 04-06, 04-07

1шт.

2

REF

INSTRUCTION

Panel, Instrument See Figure(s) : 04-04, 04-05

1шт.

3

REF

INSTRUCTION

Mount Fuse and Relay See Figure(s) : 04-06, 04-07

1шт.

4

D34033

CLAMP

1-3/16 ID; If Used

1шт.

4

515-25286

CLAMP,1 1/8", Insul, 3/8" Bolt

28.6 mm, M12 Bolt ZND; If Used

1шт.

5

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

7

425-108

NUT,1/2" - 13, Gr 5

1шт.

8

REF

INSTRUCTION

Tee See Figure(s) : 07-02

1шт.

9

D36264

FITTING

Used With Ref. 15

1шт.

9a

116195A1

CHECK VALVE

Used With Ref. 15A

1шт.

10

217-1100

UNION,1/8" - 27 NPT x 1/8" - 27 NPT

1/8 PT; Used With Ref. 15

1шт.

10a

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

37 FL 1/4 Tube x 1/4 - 18 NPTF; Used With Ref. 15A

1шт.

11

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

7/16 fl x 1/8 PT

1шт.

12

336005A1

SWITCH

Transmission Pressure; No Longer Available, Order 405018A1, Ref. 12A

1шт.

12a

405018A1

SWITCH

Pressure With Delay, Not Illustrated

1шт.

13

292740A1

RESTRICTION SWITCH

Air Restriction See Figure(s) : 02-06

1шт.

14

218-5228

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

90 7/16 fl x sw; If Used

1шт.

15

370148A1

HOSE

305 mm (12 in), Incl. Ref. 9,10; No Longer Available, Order 398130A1 Ref. 15A

1шт.

15a

398130A1

HOSE

250 mm, Incl. Ref. 9A,10A

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP Nnylon, 15 Inch

1шт.

17

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

(12.7 mm, M12 Bolt)

1шт.

18

344575A1

HARNESS

Front-Turbo

1шт.
