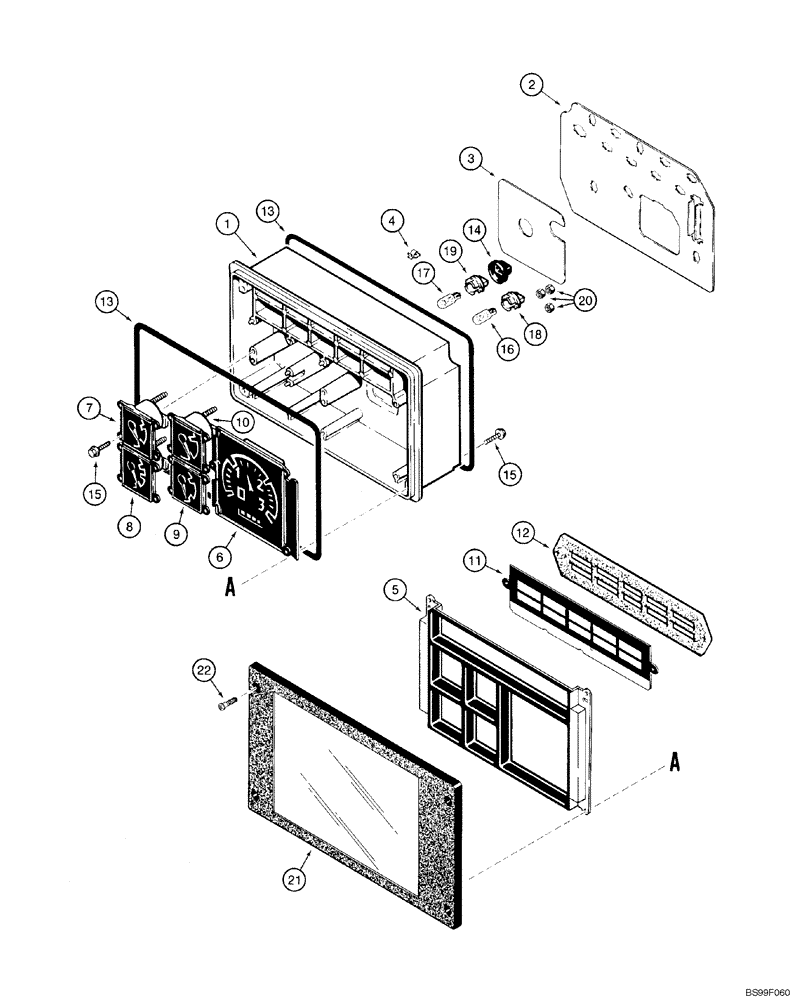

Запчасти Case 550H-IND (04-05) - INSTRUMENT CLUSTER, CONSISTS OF : 1 - 21 (04) - ELECTRICAL SYSTEMS

A191114

HOUSING

Consists Of : 1 - 4

1шт.

1

N13545

INSTRUMENT PANEL

1шт.

2

H422774

BOARD, PRINTED CIRCU

IT

1шт.

3

H422758

GASKET,1.52mm Thk

Housing

1шт.

4

H422766

CLIP, SPRING

Electrical Gauge

12шт.

5

A45007

LENS

Cover Instrument Cluster

1шт.

6

N13543

TACHOMETER

Electrical Tachometer Includes Hourmeter

1шт.

7

N13542

GAUGE

Electrical Water Temp

1шт.

8

347638A1

GAUGE

Electrical Fuel Level

1шт.

9

N6807

ELECTRICAL GAUGE

Voltmeter

1шт.

10

371046A1

GAUGE

Electrical Oil Temperature

1шт.

11

347304A1

LENS

Warning Lamp

1шт.

12

D71342

GASKET,3.05mm Thk

Mounting Lens

1шт.

13

D71343

GASKET,4.45mm Thk x 249.68mm ID

Mounting Instrument Cluster

2шт.

337514A2

CLUSTER

Instr.

1шт.

14

D71344

COVER

Boot Rubber Lamp Socket

11шт.

15

A45093

SCREW,Hex Slotted, 12.70"

Special

12шт.

16

D71346

TAIL LAMP,12V

Bulb No. 168

8шт.

17

W10478

LAMP

Bulb No. 194

3шт.

18

A47123

SOCKET/RECEPTACLE

Bulb

8шт.

19

A47125

PEDESTAL

Socket, Bulb Green

3шт.

20

225-14106

NUT,#6-32

3шт.

21

N14225

SHIELD

Instrument Cluster

1шт.

22

190-103

SCREW,Cross Pan Hd, #10 - 32 x 1"

4шт.
