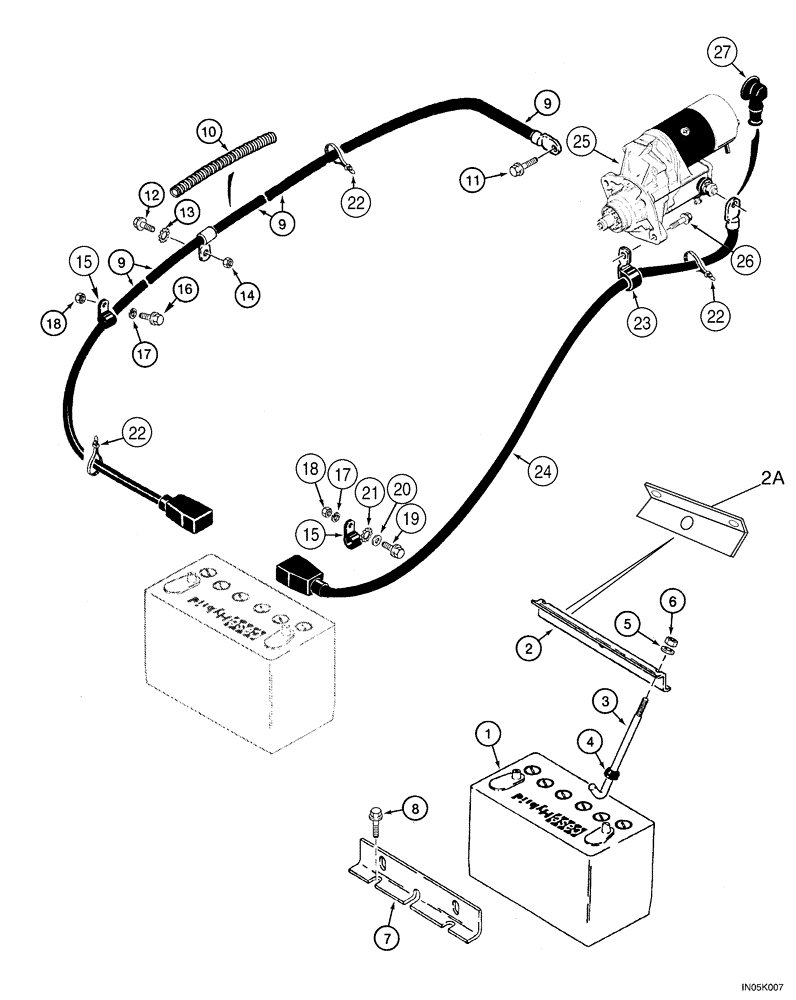

Запчасти Case 550H-IND (04-03) - BATTERY AND BATTERY CABLES - STARTER (04) - ELECTRICAL SYSTEMS

1

BMF31E

DRY BATTERY

Dry 12V

1шт.

2

R51648

LARGE PLATE

PLATE, LARGE Bracket; If Used

1шт.

2a

86993151

LARGE PLATE

PLATE, LARGE Bracket; If Used

1шт.

3

D59707

BOLT

Special

2шт.

4

248-2198

GROMMET,3/8" ID x 5/8" Groove Dia

2шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

6

231-1446

NUT,3/8" - 16, Gr 5

2шт.

7

R50652

ANGLE

Plate

1шт.

8

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

2шт.

9

R57999

NEG BATTERY CABLE

Includes Clamp

1шт.

10

R42370

CABLE SHEATH

Conduit, 1778 mm (70 in) Cut From : R44806

1шт.

11

R54620

BOLT,Hex, Flange, M10 x 35mm CL 10.9

Special

1шт.

12

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

1шт.

13

493-11052

LOCK WASHER,Ext-Int Tooth, 1/2"

Lock 1/2

1шт.

14

425-108

NUT,1/2" - 13, Gr 5

1шт.

15

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

2шт.

16

160-103

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

1шт.

17

492-11038

LOCK WASHER,3/8"

2шт.

18

425-106

NUT,3/8"-16, Cl 5

2шт.

19

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

20

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

21

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP Tie, 15 Inch, Nylon

1шт.

23

R45966

CLAMP,0.94mm, Coat, 90 Degree Twist

1шт.

24

R57564

CABLE

Includes Conduit

1шт.

25

86982709

STARTER MOTOR,12V, 2.5kW

See Figure(s) : 04-01, Replaces 1987559C1

1шт.

25

86982709R

REMAN-STARTER,12V, 2.5kW

See Figure(s) : 04-01, Replaces 1987559C1

1шт.

25

86982709C

CORE-STARTER,12V, 2.5kW

Return Number

1шт.

26

R54620

BOLT,Hex, Flange, M10 x 35mm CL 10.9

Special

2шт.

27

L126713

BOOT

1шт.
