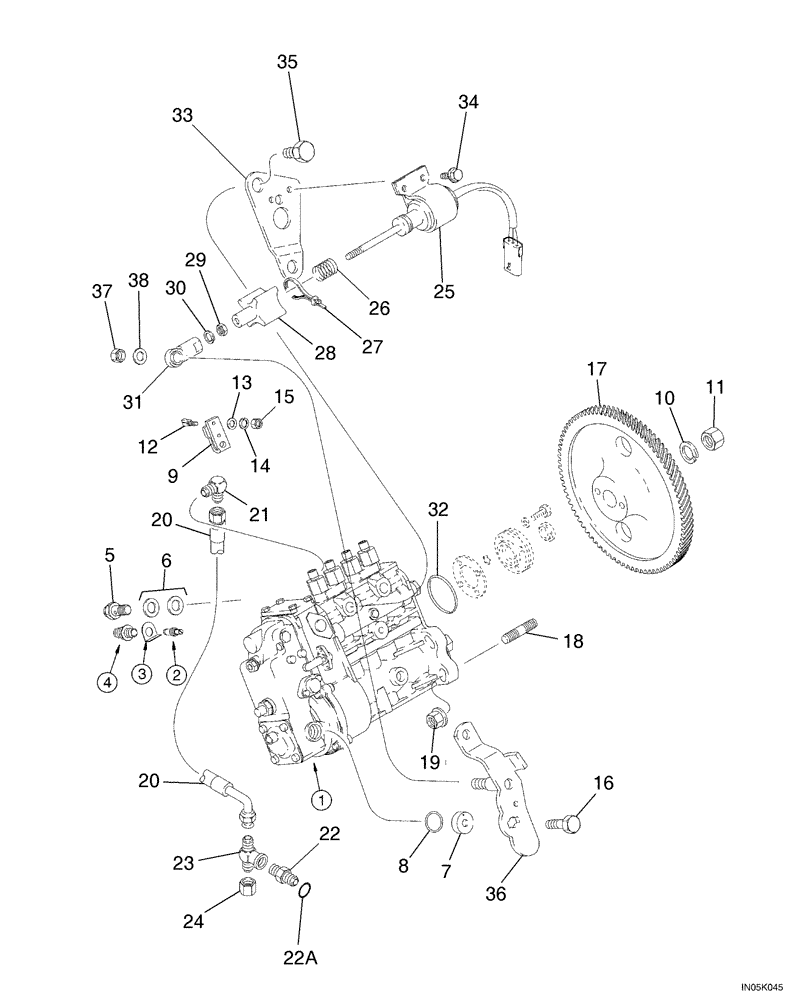

Запчасти Case 550H-IND (03-14) - FUEL INJECTION, PUMP AND DRIVE, 4T-390 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

1

J930147

PUMP, FUEL INJECTION

PUMP, INJECTION Consists Of : 2 - 16

1шт.

1

JR930147

REMAN-INJECTION PUMP

Remanufactured Pump Assy

1шт.

1

JC930147

CORE-INJECTION PUMP

Return Number

1шт.

2

A77720

PIN

1шт.

3

J928981

LOCK WASHER

1шт.

4

J912888

PLUG

1шт.

5

J932096

VALVE

Fitting

1шт.

6

933697R1

SEALING RING,M10 x 13.5 x 1

Washer

2шт.

7

691292C1

RETAINER

Housing

1шт.

8

680187C1

O-RING,2.5mm Thk x 9mm ID

1шт.

9

1808728C1

LEVER

1шт.

10

A77775

LOCK WASHER

1шт.

11

A41852

LOCK NUT

1шт.

12

1808822C1

THUMB SCREW,M6 x 26mm

1шт.

13

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

14

892-11006

LOCK WASHER,M6

1шт.

15

829-1306

NUT,M6, Cl 10

1шт.

16

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

1шт.

17

J934636

PINION

Gear

1шт.

18

J915036

STUD

55 mm (2-5/32 in)

4шт.

19

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

20

J918536

FLEXIBLE HOSE,295.00 mm

1шт.

21

A77512

ELBOW

90 male

1шт.

22

J932321

UNION

Includes : 22A

1шт.

22a

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

23

J924346

TEE

1/8 PT x 7/16

1шт.

23a

J906619

PLUG,1/8" - 27

Hex. 1/8 PT Cylinder Block Not Illustrated

1шт.

24

218-752

CAP,37 Degree, 7/16"-20

1шт.

25

J932529

SOLENOID

12V Consists Of : 26-31

1шт.

26

311100A1

SPRING

1шт.

27

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

1шт.

28

J925171

BOOT

1шт.

29

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

30

492-11025

LOCK WASHER,1/4"

1шт.

31

311099A1

JOINT

Ball

1шт.

32

J935032

SEAL

80 mm ID

1шт.

33

J930590

SUPPORT

Bracket

1шт.

34

845-6012

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8

2шт.

35

J929456

SCREW,Hex, M16 x 1.5 x 12mm, Gr 8.8

2шт.

J802998

PACKAGE,SERVICE

Consists Of : 36-38

1шт.

36

NSS

NOT SOLD SEPARAT

Lever

1шт.

37

832-41306

NUT,M6 x 1, Cl 10

1шт.

38

J934022

WASHER

1шт.
