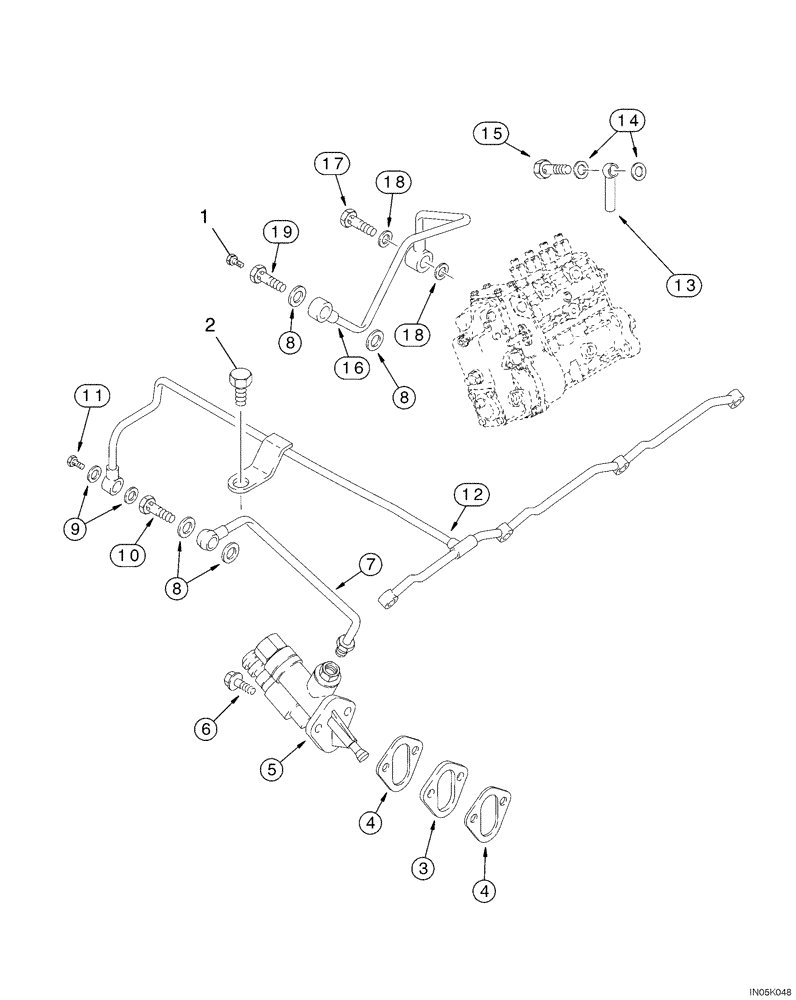

Запчасти Case 550H-IND (03-12) - FUEL FILTER, PUMP, TRANSFER, 4T-390 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

1

J905403

CAPTIVE WASHER SCREW,Hex, M6 x 1 x 10mm, Cl 8.8

1шт.

2

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

1шт.

3

J914284

SPACER

1шт.

4

J931059

GASKET

Mounting

2шт.

5

J936318

PUMP

1шт.

6

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

2шт.

7

J917280

FUEL TUBE,8 mm OD x 231 mm L

1шт.

8

J935171

SEALING WASHER

12 x 19 x 1.5 mm

4шт.

9

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

2шт.

10

J916361

BANJO BOLT

M12 x 24

1шт.

11

J924726

BANJO BOLT

Check

1шт.

12

J927633

TUBE

1шт.

13

J933250

FITTING

Connector

1шт.

14

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

Washer 14 x 20 x 1 mm

2шт.

15

J932096

VALVE

Fitting

1шт.

16

J935023

FUEL TUBE,8 mm OD

1шт.

17

J924725

BANJO BOLT,M14 x 1.5 x 26mm

1шт.

18

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

Washer 14 x 20 x 1 mm

2шт.

J905860

BANJO BOLT

Consists Of : 1, 19

1шт.

19

J911446

BANJO BOLT,M12 x 1.5 x 24mm

1шт.
