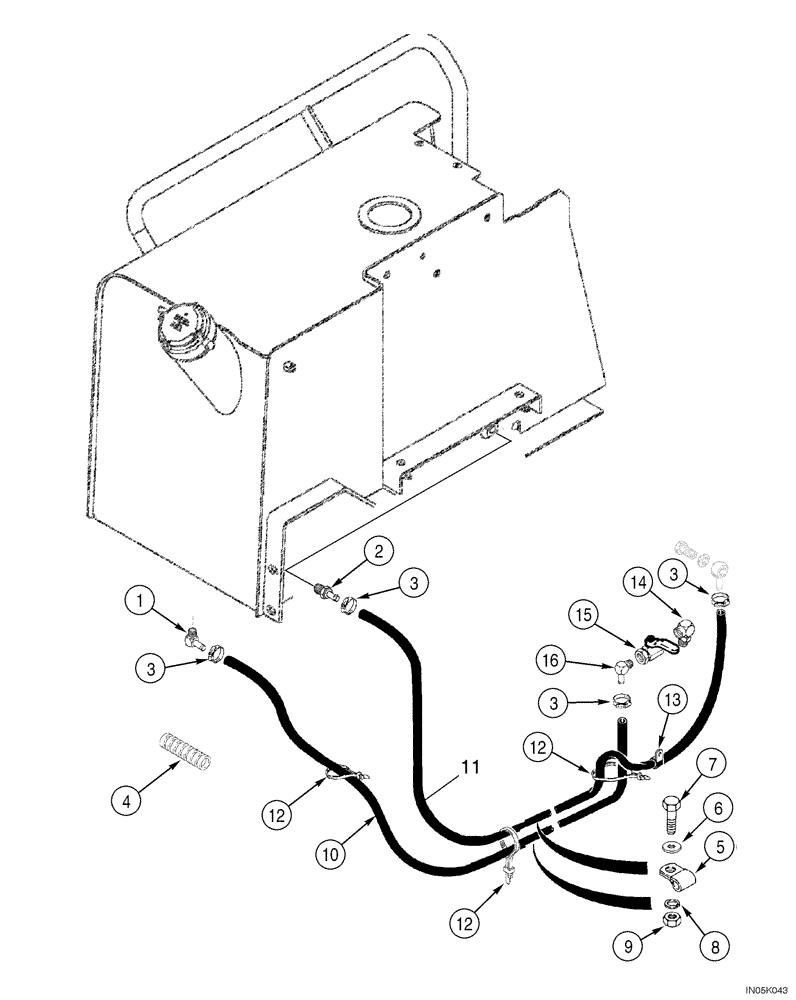

Запчасти Case 550H-IND (03-08) - FUEL LINES, MODELS WITH TURBOCHARGER (03) - FUEL SYSTEM

1

217-290

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

1шт.

2

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

1шт.

3

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

1/2 - 29/32

4шт.

4

R12586

TAPE

Strip, Protection Supply Hose

1шт.

5

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

2шт.

6

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

8

492-11038

LOCK WASHER,3/8"

2шт.

9

425-106

NUT,3/8"-16, Cl 5

2шт.

10

256728A1

FUEL HOSE

2000 mm (78-3/4 in) Supply Cut From : S118466X

1шт.

11

257085A1

FUEL HOSE

2220 mm (87-1/2 in) Return Cut From : S118400X

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP Tie, 15 Inch, Nylon

3шт.

13

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

14

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

1шт.

15

113092A1

VALVE

Shut-Off

1шт.

16

217-372

FITTING,90 Degree Elbow, 1/2" Hose Barb x 1/4" Male NPTF

90 12 Stem x 1/4 PT

1шт.
