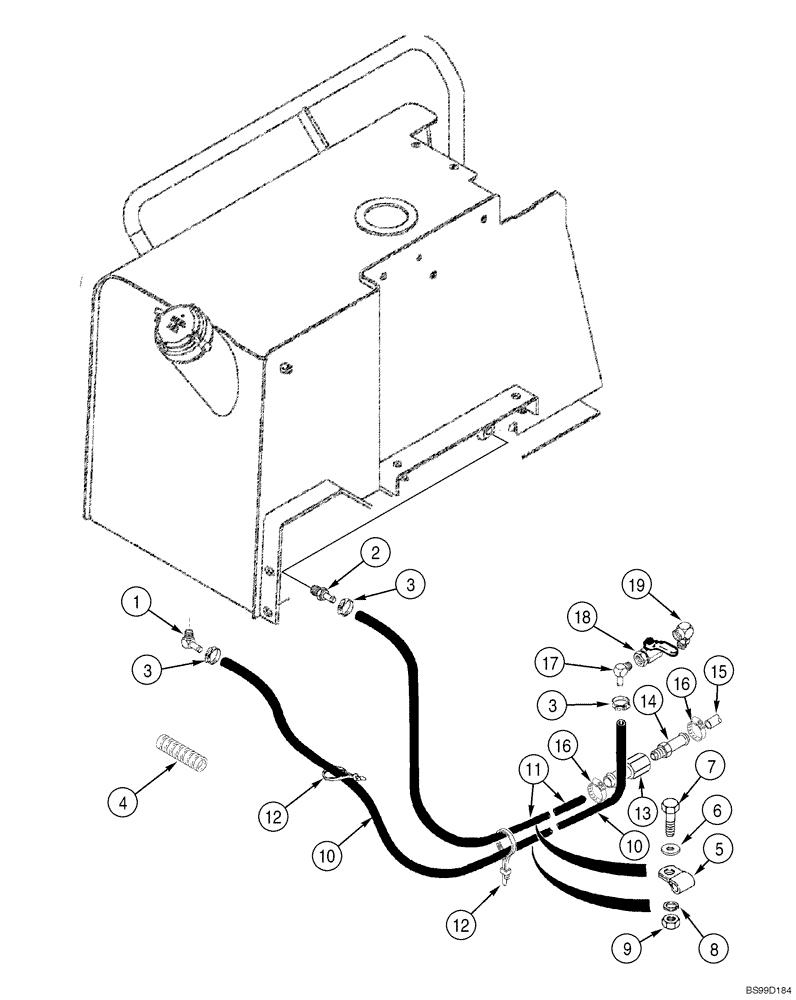

Запчасти Case 550H-IND (03-07) - FUEL LINES, MODELS WITHOUT TURBOCHARGER (03) - FUEL SYSTEM

1

217-290

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

1шт.

2

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

1шт.

3

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

1/2 - 29/32

4шт.

4

R12586

TAPE

Supply Hose

1шт.

5

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

2шт.

6

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

8

492-11038

LOCK WASHER,3/8"

2шт.

9

425-106

NUT,3/8"-16, Cl 5

2шт.

10

336224A1

FUEL HOSE,12.70 mm ID x 2137.00 mm, SAE 30R2

Supply Cut From : S118466X

1шт.

11

336223A1

FUEL HOSE,9.52 mm ID x 1631.00 mm, SAE 30R2

Return Cut From : S118400X

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP Tie, 15 Inch, Nylon

3шт.

13

217-180

FITTING,3/8" Hose Barb x 1/4" Female NPTF

3/8 Barb x 1/4 fem PT

1шт.

14

217-126

FITTING,3/16" Hose Barb x 1/4" Male NPTF

3/16 x 1/4/PT

1шт.

15

336182A1

FUEL HOSE,4.78 mm ID x 262.00 mm, SAE 30R2

Return

1шт.

16

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

17

217-372

FITTING,90 Degree Elbow, 1/2" Hose Barb x 1/4" Male NPTF

90 12 Stem x 1/4 PT

1шт.

18

113092A1

VALVE

Shut-Off

1шт.

19

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

1шт.
