(03-04) - CONTROLS, THROTTLE - PEDAL, ACCELERATOR, MODELS WITHOUT DECELERATOR

Запчасти Case 550H-IND (03-04) - CONTROLS, THROTTLE - PEDAL, ACCELERATOR, MODELS WITHOUT DECELERATOR (03) - FUEL SYSTEM

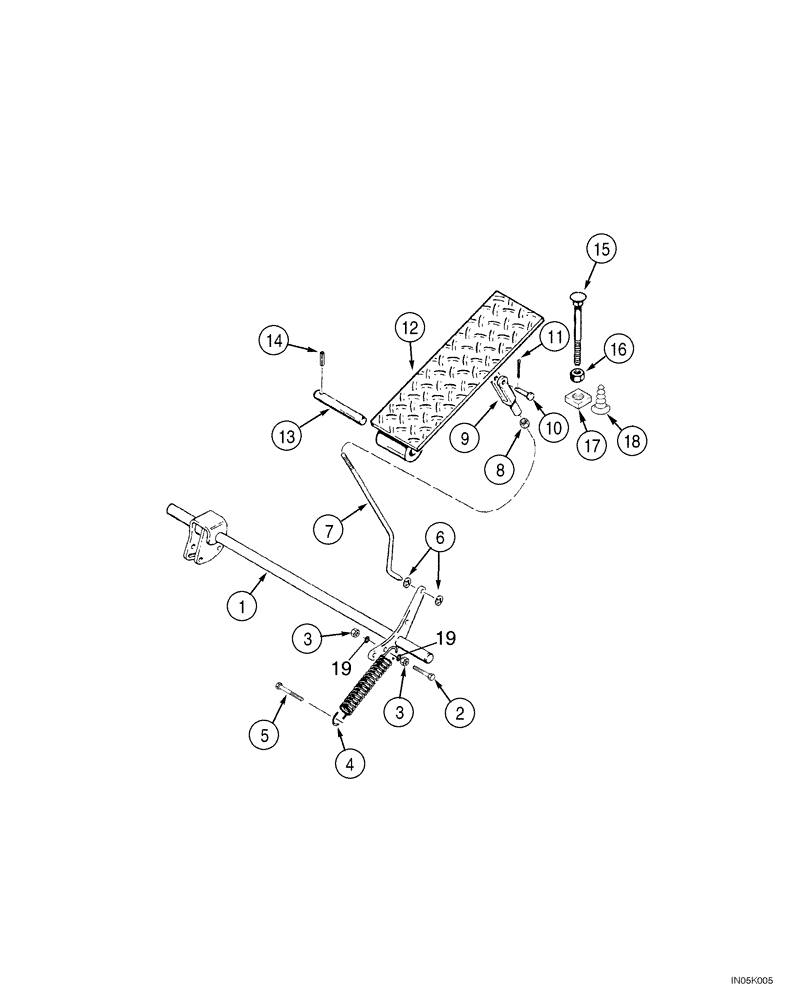

Схема запчастей Case 550H-IND - (03-04) - CONTROLS, THROTTLE - PEDAL, ACCELERATOR, MODELS WITHOUT DECELERATOR (03) - FUEL SYSTEM
16
6
15
13
11
12
5
9
7
2
14
10
17
19
4
1
8
18
3
19
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R58612

SHAFT

Cross

1шт.

2

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1шт.

3

425-104

NUT,1/4"-20, Cl 5

2шт.

4

R36912

SPRING

1шт.

5

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

6

100-1431

SNAP RING,#31, Ext

2шт.

7

R58645

ROD

1шт.

8

425-115

NUT,5/16"-24, G5

1шт.

9

213-125

ADJUSTABLE CLEVIS,5/16" - 32

1шт.

10

D149287

PIN,7.9mm OD x 26.72mm L

Clevis

1шт.

11

432-612

COTTER PIN,3/32" x 3/4"

1шт.

12

R26937

PEDAL

Accelerator

1шт.

13

R17364

SHAFT

1шт.

14

38-11016

LOCK PIN,5/32" x 1", Slotted

1шт.

15

411-864

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 4", Gr 2

Bolt, Carriage 1/2 x 4; 2

1шт.

16

425-108

NUT,1/2" - 13, Gr 5

1шт.

17

224-2808

SQUARE NUT,Sq, 1/2"-13, G2, Hvy

Models without Turbocharger

1шт.

18

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer Models Without Turbocharger

1шт.

19

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

2шт.
