(03-03) - CONTROLS, THROTTLE - SHAFT, CROSS AND CONTROL ROD, MODELS WITH TURBOCHARGER

Запчасти Case 550H-IND (03-03) - CONTROLS, THROTTLE - SHAFT, CROSS AND CONTROL ROD, MODELS WITH TURBOCHARGER (03) - FUEL SYSTEM

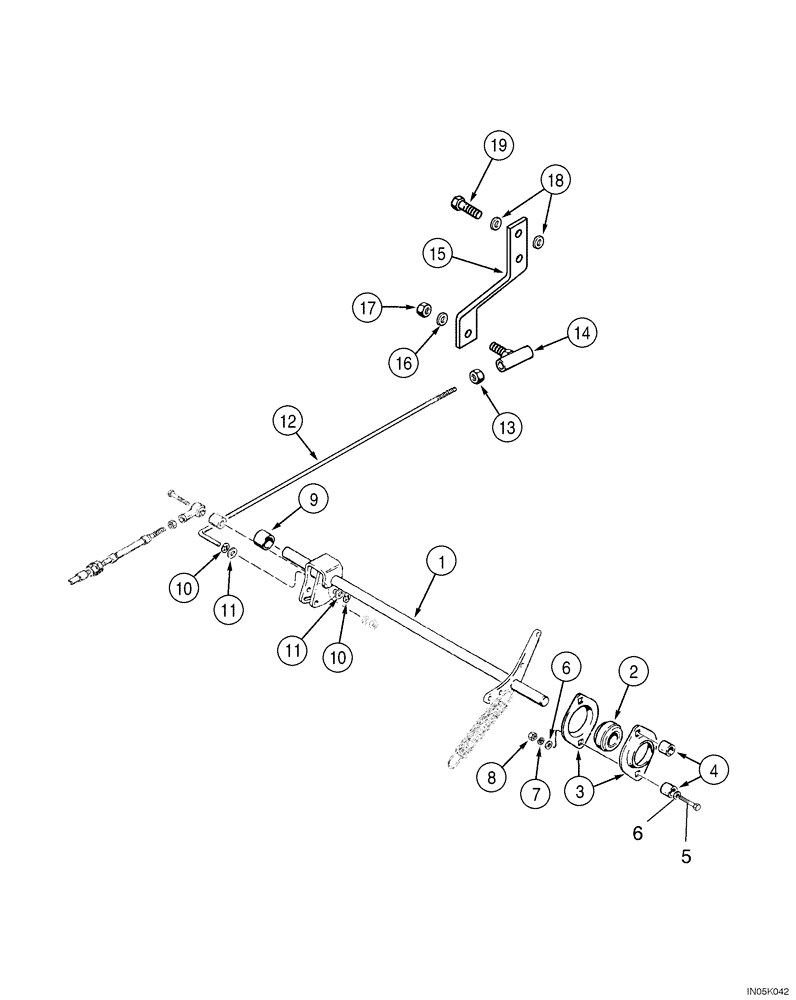

Схема запчастей Case 550H-IND - (03-03) - CONTROLS, THROTTLE - SHAFT, CROSS AND CONTROL ROD, MODELS WITH TURBOCHARGER (03) - FUEL SYSTEM
1
12
6
13
4
8
11
5
19
7
9
15
18
2
10
11
16
14
10
17
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R58612

SHAFT

Cross

1шт.

2

468390R92

BALL BEARING,0.6255" ID x 40 mm OD x 0.75"

Ball

2шт.

3

F13526

FLANGED BEARING

4шт.

4

D34162

SPACER

Spacer

4шт.

5

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

4шт.

6

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

6шт.

7

492-11025

LOCK WASHER,1/4"

4шт.

8

425-104

NUT,1/4"-20, Cl 5

4шт.

9

1334638C1

SPACER

1шт.

10

100-1425

SNAP RING,#25, Ext

2шт.

11

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

2шт.

12

257302A1

ROD

Control Accelerator Shaft to Injection Pump

1шт.

13

425-114

NUT,1/4"-28, G5

1шт.

14

225619A1

BALL JOINT

1шт.

15

257861A1

LEVEL

1шт.

16

492-11025

LOCK WASHER,1/4"

1шт.

17

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

18

892-11006

LOCK WASHER,M6

4шт.

19

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.
