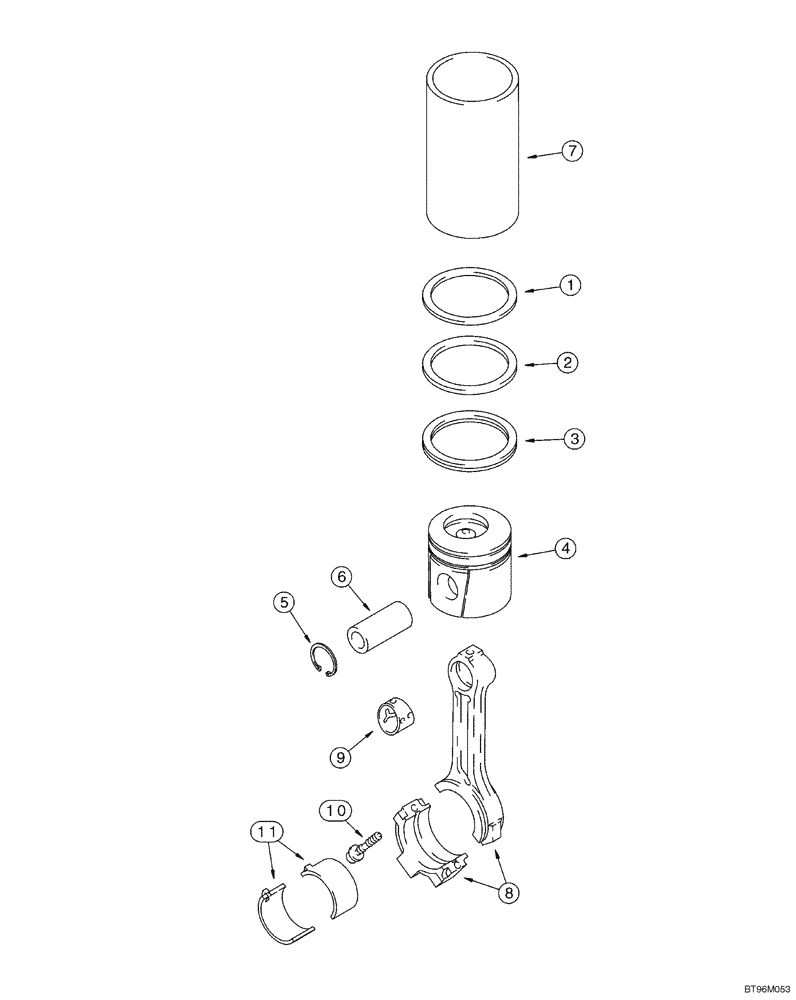

Запчасти Case 550H-IND (02-27) - PISTONS, CONNECTING RODS, 4T-390 EMISSIONS CERTIFIED ENGINE, CONNECTING ROD (02) - ENGINE

J802747

PISTON & RINGS KIT,100MM PISTON DIAMETER

Standard Consists Of : J802746, 1 - 5

4шт.

J802746

PISTON RING SET

Consists Of : 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Ring Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring Bottom

1шт.

4

NSS

NOT SOLD SEPARAT

Piston Standard

1шт.

5

J901706

RING

2шт.

6

J919053

PISTON PIN

1шт.

J802764

PISTON & RINGS KIT

0.5 mm Oversize : 0.5 mm Consists Of : J802422, 1 - 5

4шт.

J802422

PISTON RING SET

0.5 mm Consists Of : 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Ring Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring Bottom

1шт.

4

NSS

NOT SOLD SEPARAT

Piston Oversize : 0.5 mm

1шт.

5

J901706

RING

2шт.

6

J919053

PISTON PIN

1шт.

J802765

PISTON & RINGS KIT

1.0 mm Oversize : 1.0 mm Consists Of : J802423, 1 - 5

4шт.

J802423

PISTON RING SET

1.0 mm Consists Of : 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Ring Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring Bottom

1шт.

4

NSS

NOT SOLD SEPARAT

Piston Oversize : 1.0 mm

1шт.

5

J901706

RING

2шт.

6

J919053

PISTON PIN

1шт.

7

J904166

SLEEVE

Used With J802747

1шт.

J942581

ROD, CONNECTING

Consists Of : 8 - 10

4шт.

JR942581

REMAN-CONNECTING ROD

Reman for New PN J942581

4шт.

JC901569

CORE-ROD CONNECTING

Core-Connecting Rod, Return Number

4шт.

8

NSS

NOT SOLD SEPARAT

Rod, Connecting

1шт.

9

J941476

BUSHING

Connecting Rod

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

Bolt M11 x 59, Connecting Rod

2шт.

11

A77465

BEARING SET

Standard

4шт.

11

A77466

BEARING SET

Undersize : 0.25 mm

4шт.

11

A77467

BEARING LINER

Undersize : 0.50 mm

4шт.

11

A77468

BEARING SET

Undersize : 0.75 mm

4шт.

11

A77469

BEARING SET

Undersize : 1.00 mm

4шт.
