Запчасти Case 550H-IND (02-24) - CRANKSHAFT, 4-390/4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

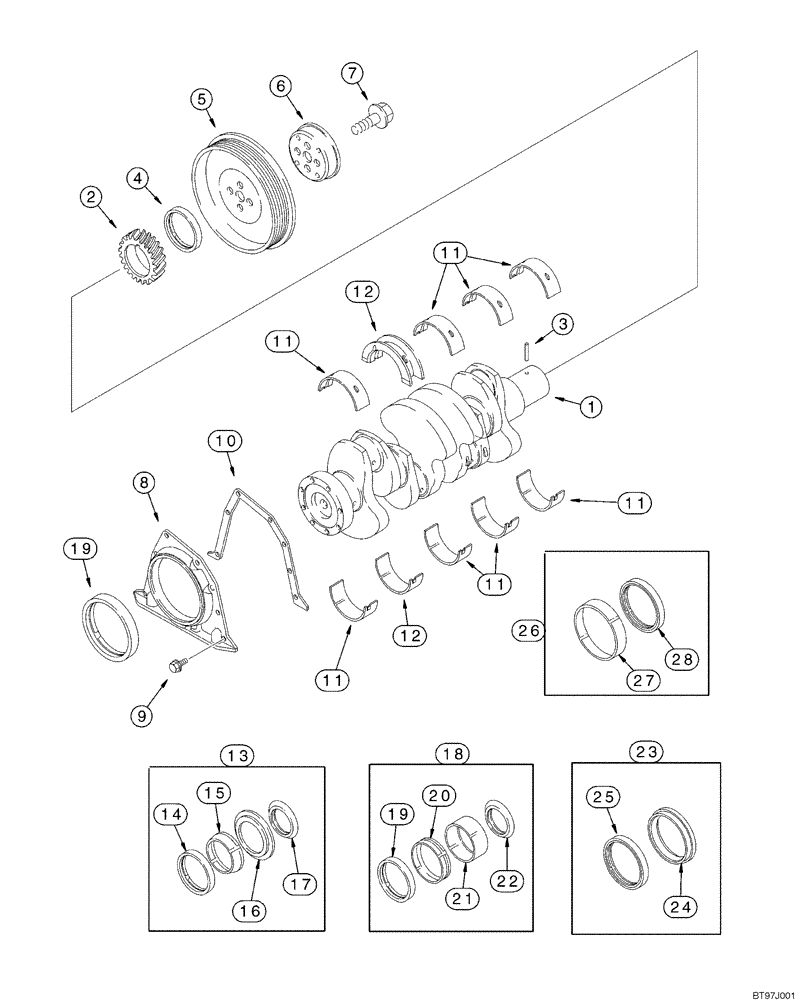

Схема запчастей Case 550H-IND - (02-24) - CRANKSHAFT, 4-390/4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
2
27
19
11
4
9
20
19
12
23
28
16
18
21
3
6
11
12
25
26
1
11
8
7
5
22
14
24
13
10
11
15
11
17

Артикул

Название

Примечание

Количество

JR908031

CRANKCASE

Remanufactured North America Only

1шт.

JC908031

CORE-CRANKSHAFT

Return Number

1шт.

1

J908031

CRANKSHAFT

Consists Of : 2, 3

1шт.

2

J929027

PINION

Gear

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

Dowel

1шт.

4

NSS

NOT SOLD SEPARAT

Seal Order : A77889

1шт.

5

J914494

PULLEY,181.25mm OD

1шт.

6

J905820

ADAPTER

Flange

1шт.

7

J903857

BOLT,Hex, M12 x 1.25 x 36mm

Flange M12 x 36

4шт.

8

J921043

REAR COVER

Retainer

1шт.

9

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

10

J928493

GASKET

Mounting

1шт.

11

J804940

BEARING SET

4-390 Standard

4шт.

11

A77405

CRANKSHAFT BEARING

4T-390 Standard

4шт.

11

A77472

BEARING SET

Undersize : 0.25 mm

4шт.

11

A77474

BEARING SET

Undersize : 0.50 mm

4шт.

11

A77476

BEARING SET

Undersize : 0.75 mm

4шт.

11

A77478

BEARING SET

Undersize : 1.00 mm

1шт.

12

A77895

THRUST BEARING,KIT

4-390 Standard

1шт.

12

A77896

BEARING SET

Crankshaft 4T-390 Standard

1шт.

12

A77473

THRUST BEARING

Crankshaft Undersize : 0.25 mm

1шт.

12

A77475

THRUST BEARING

Crankshaft Undersize : 0.50 mm

1шт.

12

A77477

THRUST BEARING

Crankshaft Undersize : 0.75 mm

1шт.

12

A77479

THRUST BEARING

Crankshaft Undersize : 1.00 mm

1шт.

12

A77841

THRUST BEARING

Crankshaft Undersize : 0.50 mm Oversize : 0.50 mm

1шт.

12

A77840

THRUST BEARING

Crankshaft Undersize : 1.00 mm Oversize : 1.00 mm

1шт.

13

A77889

SEAL PACKAGE

Crankshaft Front Consists Of : 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

Seal

1шт.

15

NSS

NOT SOLD SEPARAT

Tool

1шт.

16

NSS

NOT SOLD SEPARAT

Tool

1шт.

17

NSS

NOT SOLD SEPARAT

Shield

1шт.

18

A77890

SEAL PACKAGE

Crankshaft Front Consists Of : 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

Seal

1шт.

20

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

21

NSS

NOT SOLD SEPARAT

Tool

1шт.

22

NSS

NOT SOLD SEPARAT

Shield

1шт.

23

J934486

SERVICE KIT

Seals Crankshaft Rear Consists Of : 24, 25

1шт.

24

NSS

NOT SOLD SEPARAT

Tool

1шт.

25

NSS

NOT SOLD SEPARAT

Seal

1шт.

26

A77810

SERVICE KIT

Sleeve Crankshaft Rear Consists Of : 27, 28

1шт.

27

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

28

NSS

NOT SOLD SEPARAT

Seal

1шт.

Выбрано товаров: 42
