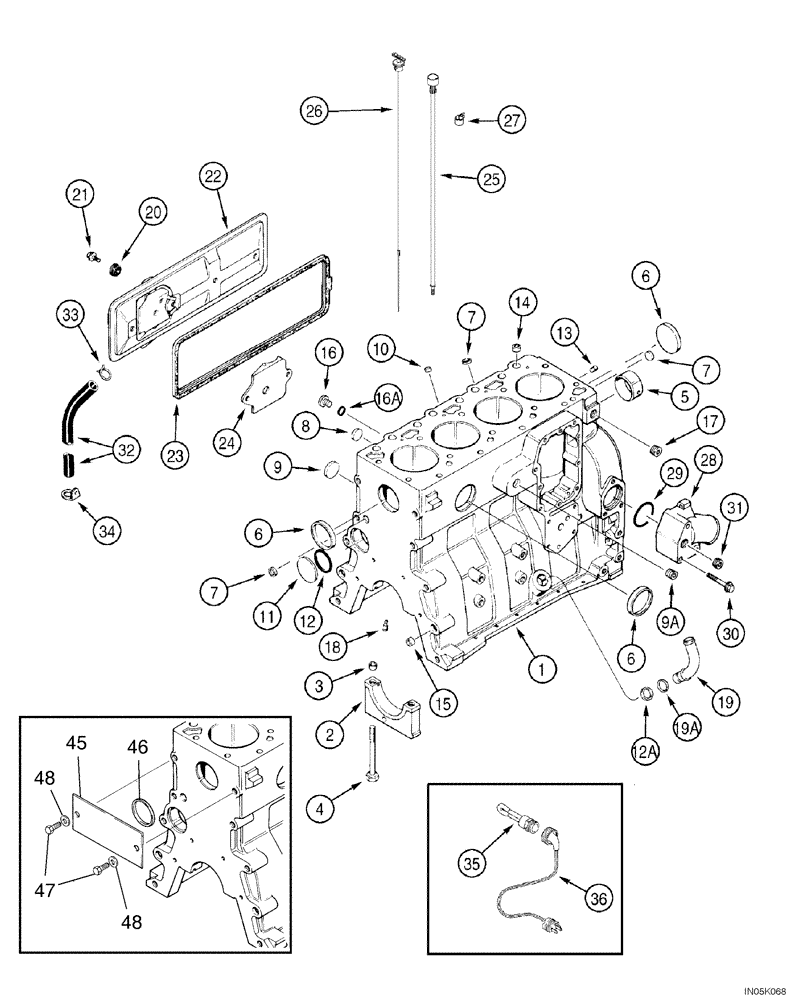

Запчасти Case 550H-IND (02-23) - CYLINDER BLOCK, 4T-390 EMISSIONS CERTIFIED ENGINE, ENGINE BLOCK HEATER 120V, 240V, REPAIR KIT (02) - ENGINE

348711A2

ENGINE

Assy. Complete Grey; Replaces 348711A1 Tan, Less : Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe Order : 234277A2 Used On Some Models

1шт.

234277A2

BASIC ENGINE

Less : Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley, Belt Tensioner, Turbocharger and Aftercooler; See Note

1шт.

J933236

SHORT ENGINE

With: Stripped Block, Pistons, Connecting Rods and Bearings Crankshaft and Bearings Consists Of : 1 - 8

1шт.

JR933236

REMAN-SHORT ENGINE

Stripped Block, Pistons, Connecting Rods and Bearings Crankshaft and Bearings

1шт.

JC933236

CORE-SHORT ENGINE

Return Number

1шт.

1

87444172

BLOCK ASSY.

Stripped Consists Of : 2 - 8 Order : J933220

1шт.

2

J903492

BEARING CAP

Cap, Includes : J900068

5шт.

3

J900068

BEARING WASHER

18 mm OD

10шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

10шт.

5

REF

INSTRUCTION

Bushing Front See Figure (s) : 02-21

1шт.

6

A77782

PLUG

Expansion 58 mm

1шт.

7

J900956

PLUG

18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

2шт.

J933220

PACKAGE,SERVICE

Block Consists Of : 9 - 18

1шт.

9

J900958

PLUG

32 mm OD

2шт.

9a

A77505

PLUG

3/4 PT

1шт.

10

J900955

PLUG

10 mm OD

3шт.

11

172599

PLUG,Exp, 2 3/8"

60 mm OD, Includes : 12

1шт.

12

J926047

O-RING,0.07" Thk x 2.239" ID

O-Ring 57 mm ID

1шт.

12a

J920706

PLUG

Expansion, 22 mm Not Used In This Application.

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

14

J902343

DOWEL

Ring 16 mm OD

2шт.

15

J900068

BEARING WASHER

Ring 18 mm OD

2шт.

16

J678923

PLUG,M10 x 1

Hex Socket, 10 mm, Includes : 16A

3шт.

16a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

17

A77429

PLUG

1/2 PT

1шт.

17a

J678921

PLUG

Hex Socket, 14 mm Not Used In This Application Includes : 17B Not Illustrated

1шт.

17b

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

17c

J932296

PLUG

Not Used In This Application Includes : 17D Not Illustrated

1шт.

17d

J330478

O-RING,0.07" Thk x 0.676" ID

1шт.

17e

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

Not Used In This Application; Not Illustrated

1шт.

18

J930139

NOZZLE CAP

4шт.

19

J931973

TUBE,0.875" OD

Used With 19A

1шт.

19a

J931824

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

O-Ring

1шт.

20

J928759

SEALING WASHER

4шт.

21

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

22

J925680

COVER

1шт.

23

J283767

GASKET,7.4mm Thk

Cover

1шт.

24

J907586

BAFFLE

1шт.

25

319805A2

TUBE,12.7 mm OD, 907.5 mm Length

Tube

1шт.

26

319806A2

DIPSTICK

1шт.

27

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

28

J934877

HYD CONNECTOR

1шт.

29

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-Ring 50 mm ID

1шт.

30

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

3шт.

31

A77429

PLUG

1/2 PT

2шт.

32

J918612

TUBE,360.00 mm

1шт.

33

J904230

CLAMP,25.4mm

1шт.

34

J928989

CLIP

1шт.

309651A1

KIT

Coolant Heater, 120V Consists Of : 35, 36, Engine Block

1шт.

35

NSS

NOT SOLD SEPARAT

Element, Replaces : A77505, Engine Block Heater 120 Volt

1шт.

36

196466A1

ELECTRIC CABLE

1829 mm (72 in), Engine Block Heater 120 Volt

1шт.

309652A1

KIT

Coolant Heater, 240V Consists Of : 35, 36, Engine Block 120 Volt

1шт.

35

NSS

NOT SOLD SEPARAT

Element, Replaces : A77505, Engine Block Heater 120 Volt

1шт.

36

J905114

ELECTRIC CABLE

1829 mm (72 in), Engine Block Heater 120 Volt

1шт.

A77887

PACKAGE,SERVICE

Consists Of : 37 - 44 Not Illustrated, Engine Block Heater 120 Volt

1шт.

37

J802747

PISTON & RINGS KIT,100MM PISTON DIAMETER

See Figure(s) : 02-27, Engine Block Heater 120 Volt

4шт.

38

J919053

PISTON PIN

See Figure(s): 02-27, Engine Block Heater 120 Volt

4шт.

39

A77465

BEARING SET

See Figure(s) : 02-27, Engine Block Heater 120 Volt

4шт.

40

A77405

CRANKSHAFT BEARING

See Figure(s) : 02-24, Engine Block Heater 120 Volt

4шт.

41

A77896

BEARING SET

See Figure(s) : 02-24, Engine Block Heater 120 Volt

1шт.

42

A77870

SEAL PACKAGE

See Figure(s) : 02-29, Engine Block Heater 120 Volt

1шт.

43

J283333

CYLINDER HEAD GASKET,2.32mm Thk

Cyl. Head See Figure(s) : 02-18, Engine Block Heater 120 Volt

1шт.

44

A77673

GASKET KIT

See Figure(s) : 02-17, Engine Block Heater 120 Volt

1шт.

323698A1

KIT

Expansion Plug Repair, Incl. 45 - 48; Not Included In Engine Assembly, Purchase Separately

1шт.

45

322984A1

PLATE

1шт.

46

J910530

SEAL

1шт.

47

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

48

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.
