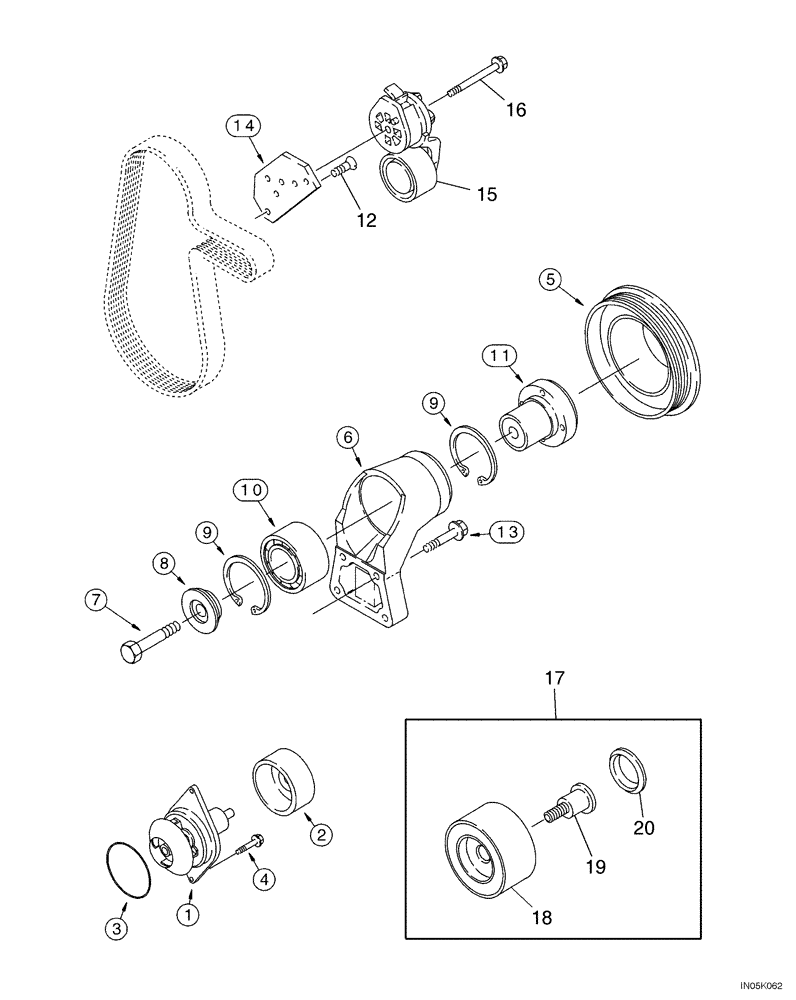

Запчасти Case 550H-IND (02-09) - WATER PUMP SYSTEM, 4-390/4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

J802970

PUMP, WATER

Kit, Consists Of : 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Pump Assy

1шт.

2

NSS

NOT SOLD SEPARAT

Pulley

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J914459

PULLEY

1шт.

6

J911922

SUPPORT ASSY.

Includes : 7 - 11

1шт.

7

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

M10 x 70

1шт.

8

J923044

RETAINER

1шт.

9

100-21250

SNAP RING,2.50", Int, #250

2шт.

10

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

11

J911924

HUB

1шт.

12

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

1шт.

13

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

4шт.

14

J919736

SUPPORT

1шт.

15

J934817

BELT TENSIONER

Belt

1шт.

16

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

1шт.

17

A77817

KIT

Tensioner Consists Of : 18-20

1шт.

18

NSS

NOT SOLD SEPARAT

Pulley

1шт.

19

NSS

NOT SOLD SEPARAT

Bolt

1шт.

20

NSS

NOT SOLD SEPARAT

Seal

1шт.
