(02-08) - MUFFLER - EXHAUST SYSTEM, MODELS WITH TURBOCHARGER

Запчасти Case 550H-IND (02-08) - MUFFLER - EXHAUST SYSTEM, MODELS WITH TURBOCHARGER (02) - ENGINE

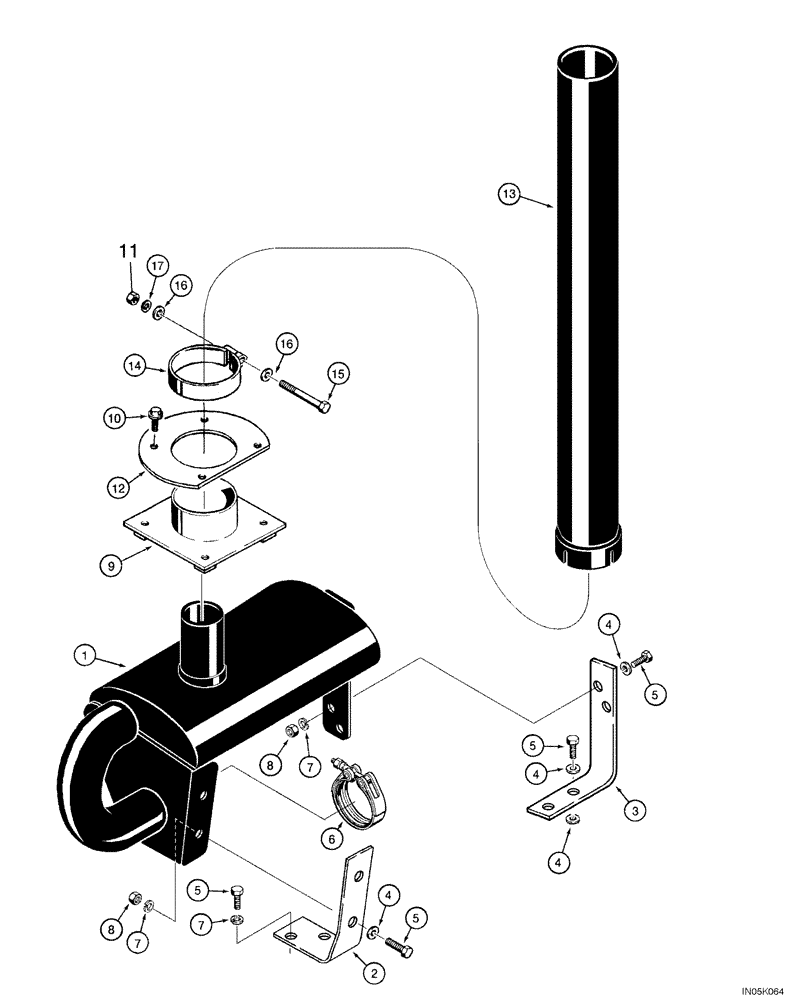

Схема запчастей Case 550H-IND - (02-08) - MUFFLER - EXHAUST SYSTEM, MODELS WITH TURBOCHARGER (02) - ENGINE
4
3
2
16
7
7
5
7
8
14
4
8
12
1
15
5
5
4
11
5
9
5
17
13
7
7
16
4
10
6
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

301320A1

MUFFLER

1шт.

2

303371A1

BRACKET

Front

1шт.

3

303372A1

BRACKET

Rear

1шт.

4

496-41041

WASHER,13/32" x 1 1/8" x .134"

8шт.

5

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

8шт.

6

A170467

CLAMP,72mm ID

Includes Hardware

1шт.

7

892-11010

LOCK WASHER,M10

6шт.

8

825-1010

NUT,M10, Cl 8

M10

4шт.

9

356927A1

MOUNTING PARTS

Bracket

1шт.

10

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

4шт.

11

129-770

NUT,3/8"-16, G5

1шт.

12

315665A1

RING

Flange

1шт.

13

R50444

PIPE

Exhaust

1шт.

14

R42854

CLAMP

1шт.

15

113-2272

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

16

195-81019

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

13/32 x 13/16 x 1/16

2шт.

17

192-11038

WASHER, LOCK

3/8", Finish ZND; If Used

1шт.

17

192-81005

LOCK WASHER,3/8"

WASHER, LOCK, , Finish BZN, Replaces 192-46; If used 3/8"

1шт.

18

102436A1

DECAL

Attention, Operating Turbocharged Engine Not Shown See Figure(s) : 09-23

1шт.
