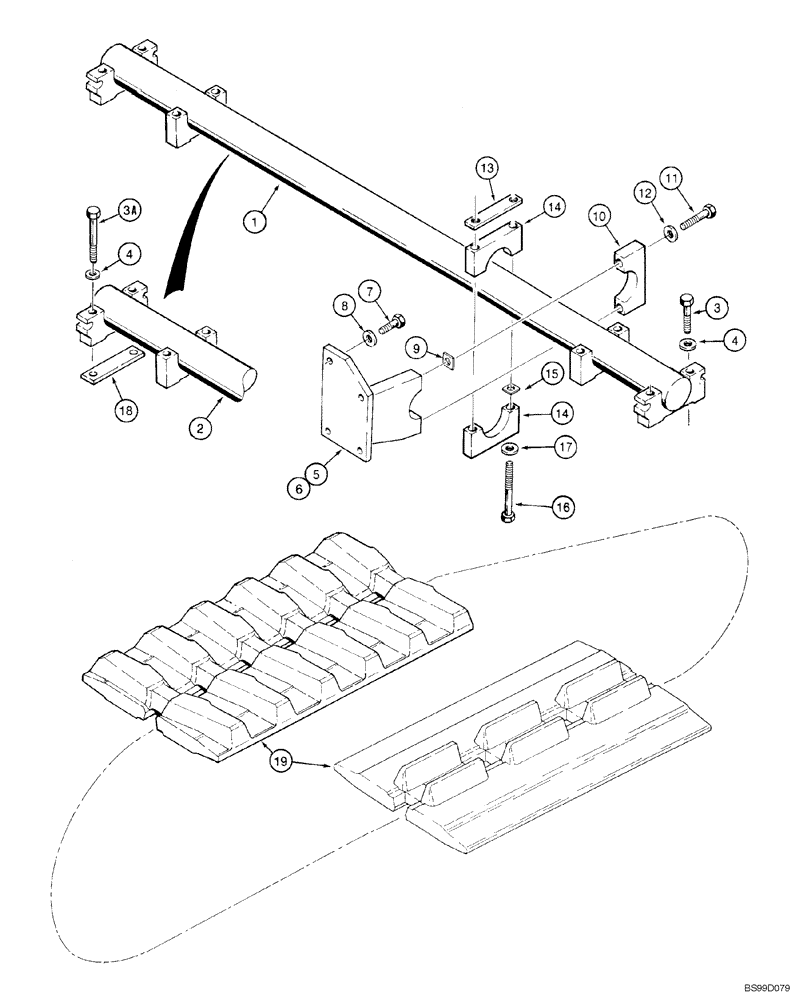

Запчасти Case 550H-IND (05-13) - SHAFT, PIVOT - TRACK, RUBBER, REAR PIVOT SHAFT, RUBBER TRACK (11) - TRACKS/STEERING

1

223829A1

BAR

Shaft, 1860 mm (73-1/4 in) 1627 mm (64 inch) Gauge Wide Track (WT) or Low Ground Pressure (LGP) Models

1шт.

2

223830A1

BAR

Shaft, 1581 mm (62-1/4 in) 1346 mm (53 inch) Gauge Long Track (LT) Models

1шт.

3

326-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 8

Use Loctite No. 242 used on models without spacers, Ref. 18

8шт.

3a

326-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

Use Loctite No. 242 used on models with spacers, Ref. 18

8шт.

B17577

LOCTITE

No. 242, 6 ml

1шт.

4

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

Special

8шт.

5

R46896

SUPPORT

Right Hand

1шт.

6

R46897

SUPPORT

Left Hand Not Illustrated

1шт.

7

107-91240

LOCK BOLT,Locking, 3/4"-10 x 2 1/2", G8

8шт.

8

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

19.8 x 44.5 x 5.6

8шт.

9

R28516

SPACER

Spacer Upper

2шт.

10

D34663

CLAMP

Front

2шт.

11

106-91464

BOLT

Bolt, Lock 7/8 x 4

4шт.

12

D34667

WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk

Special

4шт.

13

D34722

BLOCK

Mounting Top

2шт.

14

D34663

CLAMP

4шт.

15

R28516

SPACER

Spacer

2шт.

16

413-14120

BOLT,Hex, 7/8" - 9 x 7-1/2", Gr 5

7/8 x 7-1/2 Use Loctite No. 242

4шт.

B17577

LOCTITE

No. 242, 6 ml

1шт.

17

D34667

WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk

Special

4шт.

18

136106A1

SPACER

Used on Models With Extended Life Track Chain Used on Models With Rubber Tracks

4шт.

19

118075A1

RUBBER

Models With Rubber Track Cannot Be Equipped With Ripper Attachment or Final Drive Guards

2шт.
