Запчасти Case 550H-IND (05-11) - TRACK CHAIN, EXTENDED LIFE, EACH MASTER LINK HAS ONE BOLT HOLE, CHAIN UNIT KIT (11) - TRACKS/STEERING

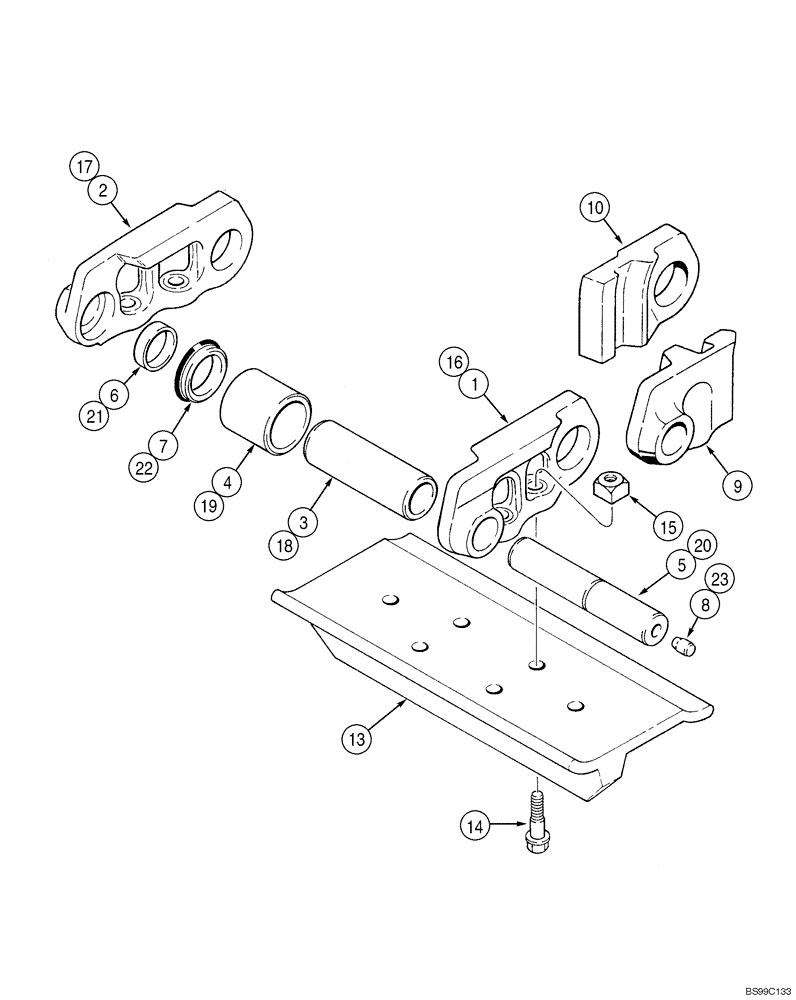

Схема запчастей Case 550H-IND - (05-11) - TRACK CHAIN, EXTENDED LIFE, EACH MASTER LINK HAS ONE BOLT HOLE, CHAIN UNIT KIT (11) - TRACKS/STEERING
14
8
7
9
5
21
22
4
23
2
1
3
6
17
18
13
20
19
15
16
10

Артикул

Название

Примечание

Количество

220364A1

CHAIN (CE)

Track Extended Life Consists Of : 1 - 12 For Service Order : 220398A1 See Figure(s) : 05-12

2шт.

1

220208A1

LINK

Right Hand

36шт.

2

220207A1

LINK

Left Hand

36шт.

3

220353A1

BUSHING

47 mm (1-7/8 in) OD

37шт.

4

323874A1

BUSHING

37шт.

5

R57368

PIN

37шт.

6

R52299

SEALING RING

Spacer

74шт.

7

R52300

SEAL

74шт.

8

R54334

PLUG,16mm

37шт.

220297A1

LINK

Master Right Hand Consists Of : 9, 10 For Service Order : 221122A1 See Figure(s) : 05-12

1шт.

9

NSS

NOT SOLD SEPARAT

Link Fits Over Track Pin on Outside of Regular Track Link

1шт.

10

NSS

NOT SOLD SEPARAT

Link Fits Over Bushing on Inside of Regular Track Link

1шт.

220296A1

LINK ASSY.

Master Left Hand Consists Of : 11, 12 For Service Order : 221121A1 See Figure(s) : 05-12

1шт.

11

NSS

NOT SOLD SEPARAT

Link Fits Over Track Pin on Outside of Regular Track Link Not Illustrated

1шт.

12

NSS

NOT SOLD SEPARAT

Link Fits Over Bushing on Inside of Regular Track Link Not Illustrated

1шт.

13

339362A1

TRACK SHOE

406 mm (16 in)

74шт.

13

339364A1

TRACK SHOE

508 mm (20 in)

74шт.

13

346997A1

TRACK SHOE

660 mm (26 in)

74шт.

14

R57374

BOLT

Bolt, Special 9/16 NF x 1-25/32

296шт.

15

R57375

SQUARE NUT

Square, 9/16 NF Not Used on Master Link Bolts

288шт.

15a

345-140

SEALANT

No. 847, 1 Pint For Link Pin Bores Not Illustrated

1шт.

248111A1

KIT

Kit, Includes Instructions Consists Of : 16 - 23, chain unit

1шт.

16

220208A1

LINK

Right Hand, chain unit kit

1шт.

17

220207A1

LINK

Left Hand, chain unit kit

1шт.

18

220353A1

BUSHING

47 mm (1-7/8 in) OD, chain unit kit

1шт.

19

323874A1

BUSHING

Chain Unit Kit

1шт.

20

R57368

PIN

Chain Unit Kit

2шт.

21

R52299

SEALING RING

Spacer, Chain Unit Kit

4шт.

22

R52300

SEAL

Chain Unit Kit

4шт.

23

R54334

PLUG,16mm

Chain Unit Kit

2шт.

Выбрано товаров: 30
