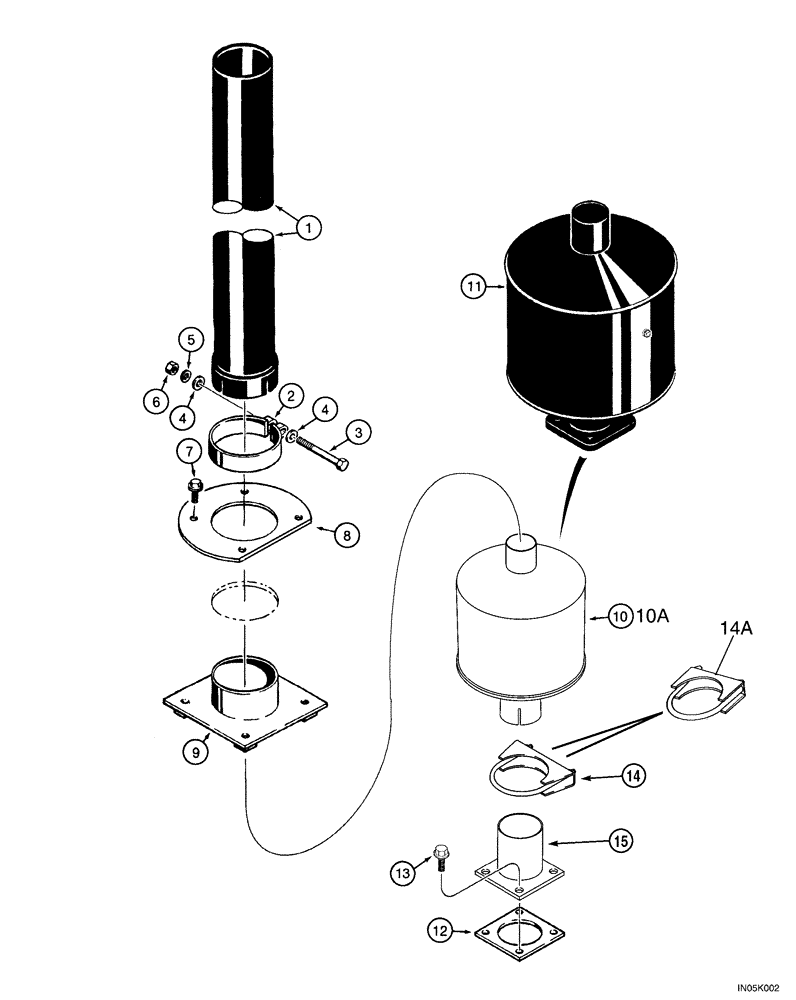

Запчасти Case 550H-IND (02-07) - MUFFLER - EXHAUST SYSTEM, MODELS WITHOUT TURBOCHARGER (02) - ENGINE

1

R50444

PIPE

Exhaust

1шт.

2

R42854

CLAMP

1шт.

3

113-2272

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

4

195-81019

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

13/32 x 13/16 x 1/16

2шт.

5

492-11038

LOCK WASHER,3/8"

If Used

1шт.

5

192-81005

LOCK WASHER,3/8"

WASHER, LOCK, , Finish BZN, Replaces 192-46; If used 3/8"

1шт.

6

129-770

NUT,3/8"-16, G5

1шт.

7

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

4шт.

8

315665A1

RING

Flange

1шт.

9

356927A1

MOUNTING PARTS

Bracket

1шт.

10

368538A1

MUFFLER

Standard; No Longer Available, Order 407713A1, Ref.10A

1шт.

10a

407713A1

MUFFLER

Standard

1шт.

11

302396A1

MUFFLER

Spark Arrester

1шт.

12

J912220

GASKET,0.4mm Thk

Pipe

1шт.

13

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

4шт.

14

A13240

CLAMP,2-5/8" ID

Muffler; Used With Ref. 10

1шт.

14a

414315A1

CLAMP

Muffler; Used With Ref. 10A

1шт.

15

L129963

ADAPTER

1шт.
