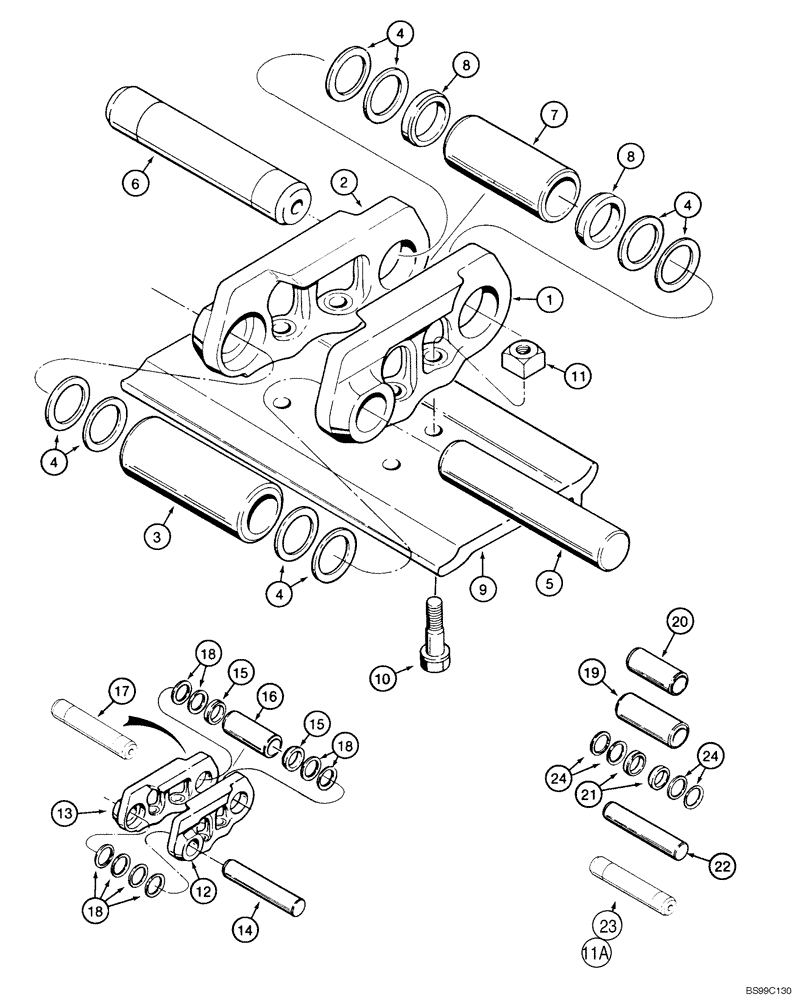

Запчасти Case 550H-IND (05-08) - TRACK CHAIN, SEALED, CHAIN UNIT KIT, PIN & BUSHING KIT (11) - TRACKS/STEERING

R57371

CHAIN (CE)

Track Consists Of : 1 - 8

2шт.

1

R57404

CHAIN LINK

RH

37шт.

2

R57403

CHAIN LINK

LH

37шт.

3

R57378

BUSHING

122 mm (4-3/4 in) OD Link

36шт.

4

R52291

SEAL

148шт.

5

R57367

PIN

167 x 29 mm

36шт.

6

R57366

PIN,28.24mm OD x 167mm L

Master Link

1шт.

7

R57379

BUSHING

104 mm (4 in) OD Master Link

1шт.

8

R57411

SPACER

2шт.

9

335447A1

TRACK SHOE

406 mm (16 in)

74шт.

10

R57374

BOLT

Special 9/16 NF x 1-25/32

296шт.

11

R57375

SQUARE NUT

Square 9/16 NF

288шт.

11a

R57412

PIN

Oversize Master Link; If Required

2шт.

R57414

CHAIN (AG)

Includes Instructions Consists Of : 12 - 18, Chain Unit Kit

1шт.

12

R57404

CHAIN LINK

RH, Unit Kit

1шт.

13

R57403

CHAIN LINK

LH, Unit Kit

1шт.

14

R57367

PIN

167 x 29 mm, Chain Unit Kit

2шт.

15

R57411

SPACER

chain unit kit

2шт.

16

R57379

BUSHING

104 mm (4 in) OD Master Link, chain unit kit

1шт.

17

R57366

PIN,28.24mm OD x 167mm L

Master Link, Chain Unit Kit

1шт.

18

R52291

SEAL

Chain Unit Kit

8шт.

R57413

PIN

Kit Pin and Bushing, Includes Instructions Consists Of : 19 - 24, services complete track chain for both sides of tractor

1шт.

19

R57378

BUSHING

122 mm (4-3/4 in) OD, pin and bushing kit services complete track chain for both sides of tractor

72шт.

20

R57379

BUSHING

104 mm (4 in) OD Master Link, pin and bushing kit services complete track chain for both sides of tractor

2шт.

21

R57411

SPACER

Pin and Bushing Kit Services Complete Track Chain for Both Sides of Tractor

4шт.

22

R57367

PIN

167 x 29 mm, pin and bushing kit services complete track chain for both sides of tractor

72шт.

23

R57412

PIN

Oversize Master Link, pin and bushing kit services complete track chain for both sides of tractor

2шт.

24

R52291

SEAL

pin and bushing kit services complete track chain for both sides of tractor

296шт.
