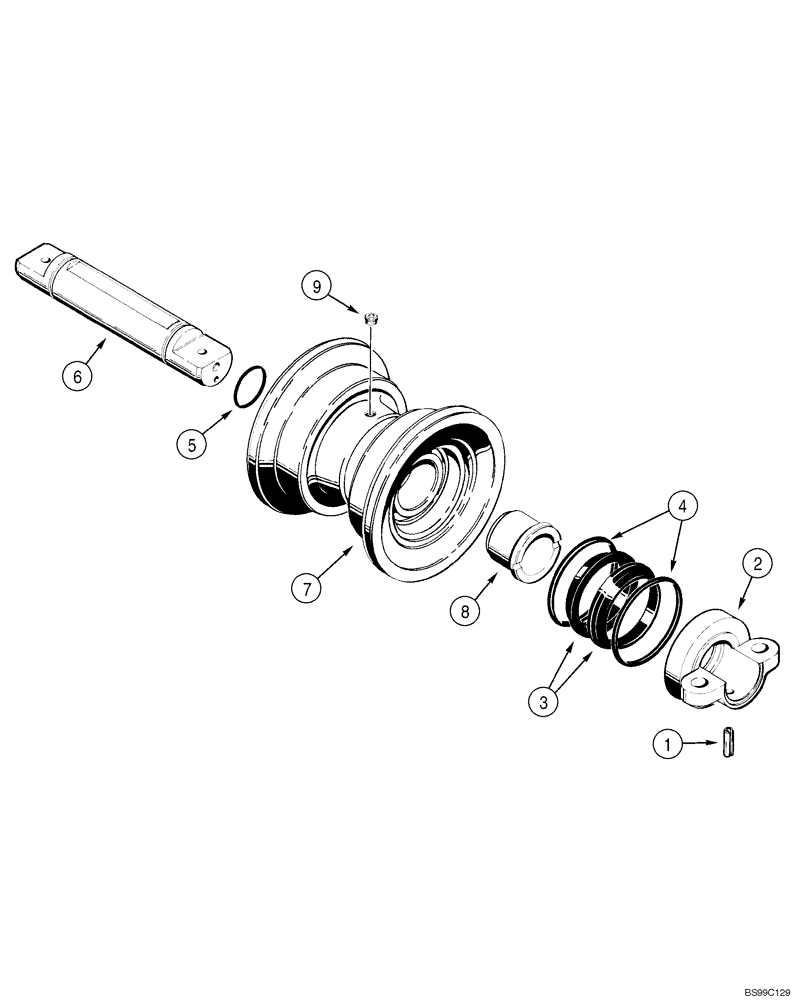

Запчасти Case 550H-IND (05-06) - TRACK ROLLER (11) - TRACKS/STEERING

R57357

TRACK ROLLER

Track, Incl. 1 - 9

12шт.

1

R33570

PIN

Roll

2шт.

2

R33568

BRACKET

Bracket

2шт.

S113075

SEAL

Consists Of : 3, 4

2шт.

3

NSS

NOT SOLD SEPARAT

Seal

2шт.

4

N6846

O-RING,75.7mm ID x 9.5mm Width

Face Seal

2шт.

5

238-5224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

2шт.

6

R33569

SHAFT

1шт.

R57360

ROLLER ASSY.

Track, Incl. 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Hub

1шт.

8

R33556

BUSHING,50.28mm ID x 70.5mm OD x 46mm L

2шт.

9

R33557

PLUG

Hex Socket

1шт.
