(05-04) - TRACK ADJUSTER, MODELS WITH STEEL AND RUBBER TRACKS

Запчасти Case 550H-IND (05-04) - TRACK ADJUSTER, MODELS WITH STEEL AND RUBBER TRACKS (11) - TRACKS/STEERING

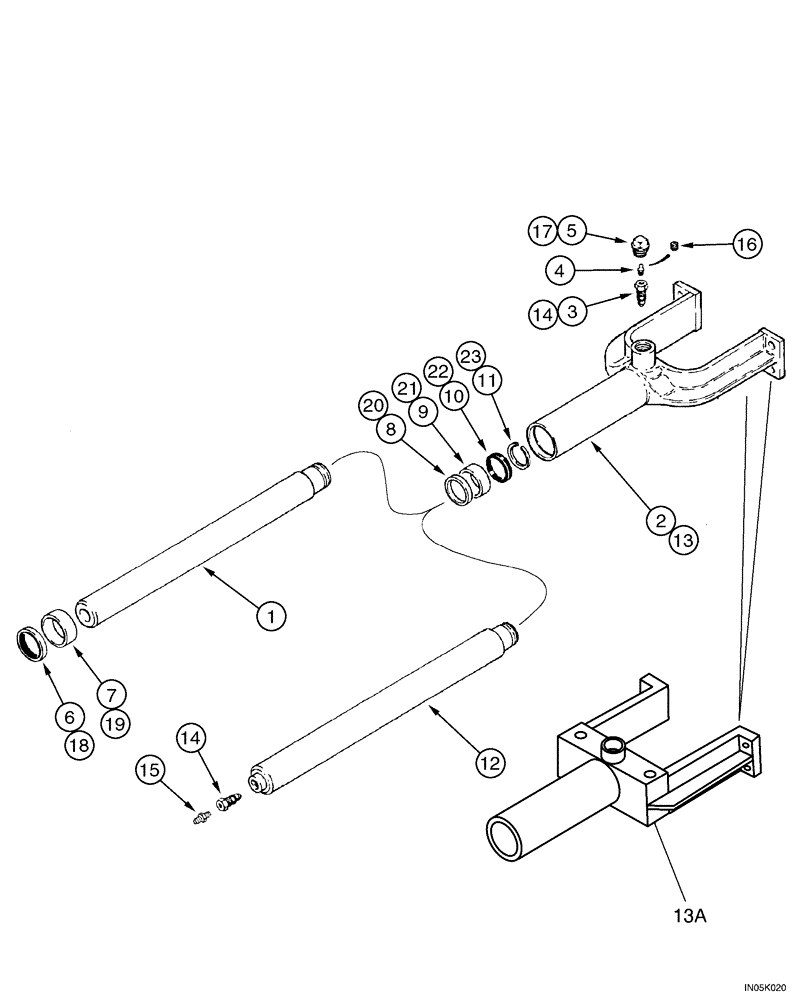

Схема запчастей Case 550H-IND - (05-04) - TRACK ADJUSTER, MODELS WITH STEEL AND RUBBER TRACKS (11) - TRACKS/STEERING
7
20
4
14
11
15
9
2
3
22
13
13a
8
21
17
18
1
23
16
6
14
19
12
10
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

R58480

FORK

Adjuster Assy Consists Of : 1- 11

2шт.

1

R58450

PISTON

1шт.

2

R42184

YOKE

UNIVERSAL JOINT YOKE

1шт.

3

D35287

CHECK VALVE,5/8" - 18

Check

1шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

5

221-29

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

Hollow Core

1шт.

103729A1

KIT

Consists Of : 6- 11

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper

1шт.

7

D35503

RING,50.7mm ID x 60.35mm OD x 22.23mm Thk

Piston

1шт.

8

R51794

PISTON RING,Square, 5.1mm Thk x 44.46mm ID

Backup

1шт.

9

D37289

BUSHING,44.35mm ID x 53.92mm OD x 19.05mm L

1шт.

10

D95382

SEAL,44.27mm ID x 54.05mm OD x 10.69mm Thk

U-Cup

1шт.

11

A27085

RING

Retaining

1шт.

125636A1

CYLINDER ASSY.

Adjuster Assy Consists Of : 12 - 23, used on models with rubber tracks

2шт.

12

125110A1

PISTON

Used on Models with Rubber Tracks

1шт.

13

R42184

YOKE

UNIVERSAL JOINT YOKE Used on Models with Rubber Tracks; No Longer Available, Order 389390a1, Ref 13A

1шт.

13a

389390A1

ADJUSTER

Idler

1шт.

14

D35287

CHECK VALVE,5/8" - 18

Used on Models with Rubber Tracks

2шт.

15

218-442

HYD CONNECTOR,1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

1/2 fl x 1/8 PT, Used on Models with Rubber Tracks

1шт.

16

217-428

PLUG,Hex Soc, 1/8" - 27 NPTF

Used on Models with Rubber Tracks

1шт.

17

221-29

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

Hollow Core, Used on Models with Rubber Tracks

1шт.

103729A1

KIT

Consists Of : 18- 23, Used on Models with Rubber Tracks

1шт.

18

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper, Used on Models with Rubber Tracks

1шт.

19

D35503

RING,50.7mm ID x 60.35mm OD x 22.23mm Thk

Piston, Used on Models with Rubber Tracks

1шт.

20

R51794

PISTON RING,Square, 5.1mm Thk x 44.46mm ID

Backup, Used on Models with Rubber Tracks

1шт.

21

D37289

BUSHING,44.35mm ID x 53.92mm OD x 19.05mm L

Used on Models with Rubber Tracks

1шт.

22

D95382

SEAL,44.27mm ID x 54.05mm OD x 10.69mm Thk

U-Cup, Used on Models with Rubber Tracks

1шт.

23

A27085

RING

Retaining, Used on Models with Rubber Tracks

1шт.
