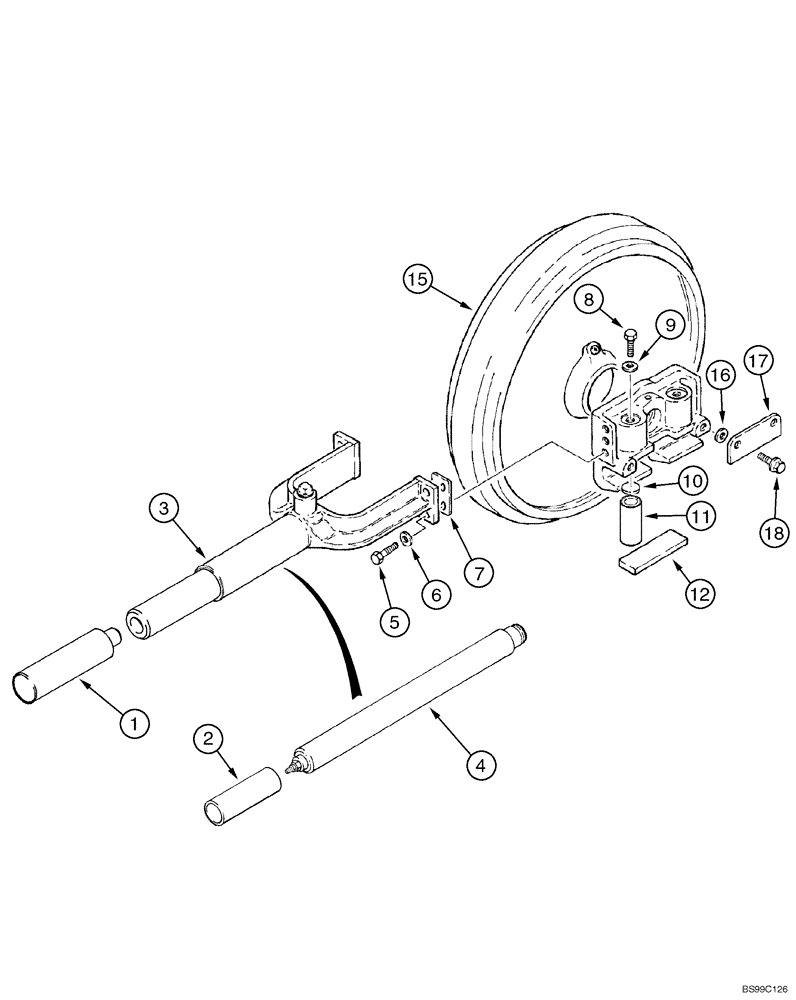

Запчасти Case 550H-IND (05-03) - TRACK ADJUSTER AND IDLER, MOUNTING (11) - TRACKS/STEERING

1

R58451

SPACER

Used on Models With Steel Tracks

2шт.

2

125061A1

TUBE,39.7 mm ID, 54 mm OD

Spacer Used on Models With Rubber Tracks

2шт.

3

R58480

FORK

Adjuster Assy Used on Models With Steel Tracks See Figure(s) : 05-04

2шт.

4

125636A1

CYLINDER ASSY.

Adjuster Assy Used on Models With Rubber Tracks See Figure(s) : 05-04

2шт.

5

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

8шт.

6

496-21053

WASHER,17/32" x 1 1/16" x .134"

8шт.

7

R37875

SHIM,0.813mm Thk

(.032")

1шт.

297032A1

KIT

Mounting Idler Consists Of : 8 - 14; Used Prior to P.I.N. JJG0298340

1шт.

87416398

REPAIR KIT

Idler Consists Of : 8-12, 13A, 14A; Used On P.I.N. JJG0298340 and After

1шт.

8

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

8шт.

9

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

8шт.

10

R33245

SPRING SEAT

8шт.

11

188866A1

SHOCK ABSORBER

Spring

8шт.

12

R58720

LARGE PLATE

PLATE, LARGE Wear

4шт.

13

R58373

BAR

Plate, Wear Not Illustrated See Figure(s) : 05-01

4шт.

13a

87415717

BAR

Idler, Wear Not Illustrated See Figure(s) : 05-01

2шт.

14

R58722

SHIM,0.81mm Thk

Not Illustrated, See Figure(s) 05-01

4шт.

14a

87415718

SHIM

Not Illustrated See Figure(s) : 05-01

4шт.

15

389164A2

FRONT IDLER

See Figure(s) : 05-05, Replaces 329712A1 & 389164A1 Idler, Used On Some Models

2шт.

16

D44330

SHIM,.031" Thk

1шт.

17

R49772

LARGE PLATE

PLATE, LARGE Guide

4шт.

18

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

8шт.
