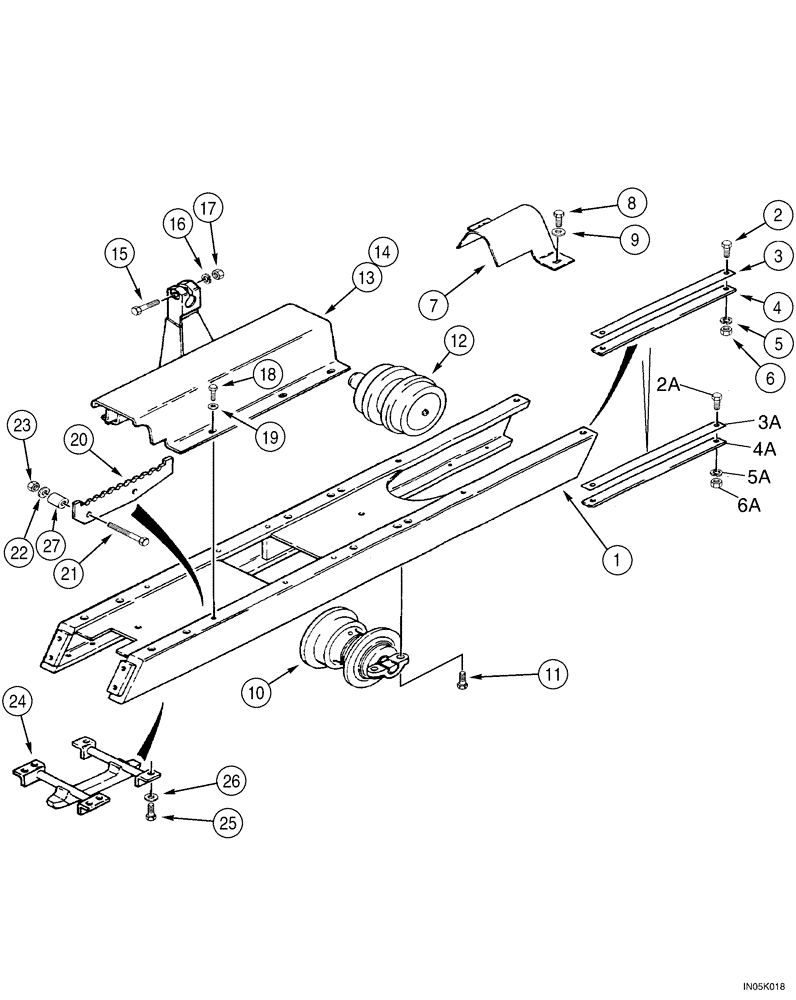

Запчасти Case 550H-IND (05-01) - FRAME, TRACK - ROLLER AND RECOIL HOUSING (11) - TRACKS/STEERING

1

175297A1

FRAME

Track, 127 mm Wide and L1990 mm Channel; If Used

2шт.

1

87415720

FRAME

Track, 135 mm Wide and L1995 mm Channel; If Used

2шт.

2

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Used with Ref. 4

8шт.

2a

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Used with Ref. 4A

8шт.

3

R58722

SHIM,0.81mm Thk

Used with Ref. 4

1шт.

3a

87415718

SHIM

Used With Ref. 4A

1шт.

4

R58373

BAR

Plate, Wear 2 x Dia 16.6 Holes; Used With 175297A1, Ref. 1; If Used

4шт.

4a

87415717

BAR

2 x Dia 17.5 Holes; Used With 87415720, Ref. 1; If Used

4шт.

5

492-11062

BEARING WASHER,5/8"

Used With Ref. 4

8шт.

5a

495-21044

WASHER,3/8"

(.438 x 1.00 x .083); Used with Ref 4A

8шт.

6

425-1010

NUT,5/8"-11, G5

8шт.

6a

425-106

NUT,3/8"-16, Cl 5

Used with Ref. 2A

8шт.

7

R57631

GUARD

Shield, Protective Track Adjuster

2шт.

8

326-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

4шт.

9

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

10

R57357

TRACK ROLLER

Track See Figure(s) : 05-06

12шт.

11

106-91024

LOCK BOLT,Locking, 5/8"-11 x 1 1/2", G5, Full Thd

48шт.

12

198941A1

ROLLER ASSY.

Carrier Component Parts Not Serviced Separately

2шт.

13

187931A2

HOUSING

Recoil Right Hand Used on Models With Rubber Tracks

1шт.

13

187917A2

HOUSING

Recoil Right Hand Used on Models With Steel Tracks, For Service Order : 109712A2

1шт.

14

187932A2

HOUSING

Recoil Left Hand Used on Models With Rubber Tracks

1шт.

14

187916A2

HOUSING

Recoil Left Hand Used on Models With Steel Tracks For Service Order : 109711A2

1шт.

15

326-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

2шт.

16

R24323

WASHER

2шт.

17

231-4118

LOCK NUT,1/2"-13, GB

1/2-13; Metal Finish CAD, Replaces 231-1448 Non Metallic Finish ZND Lock Nut

2шт.

18

326-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

10шт.

19

496-21053

WASHER,17/32" x 1 1/16" x .134"

10шт.

20

100776A1

STEP

Plate 1346 mm (53 inch) Gauge Long Track (LT) Models

2шт.

21

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

5/8 x 4

4шт.

22

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

4шт.

23

425-1010

NUT,5/8"-11, G5

4шт.

24

247213A1

GUIDE

Used on Models With Rubber Tracks

4шт.

25

113-2448

LOCK BOLT,Locking, 1/2"-13 x 1 1/2", G8

24шт.

26

496-21053

WASHER,17/32" x 1 1/16" x .134"

24шт.

27

87449820

SPACER

Zinc Plated, Replaces D124524

4шт.
