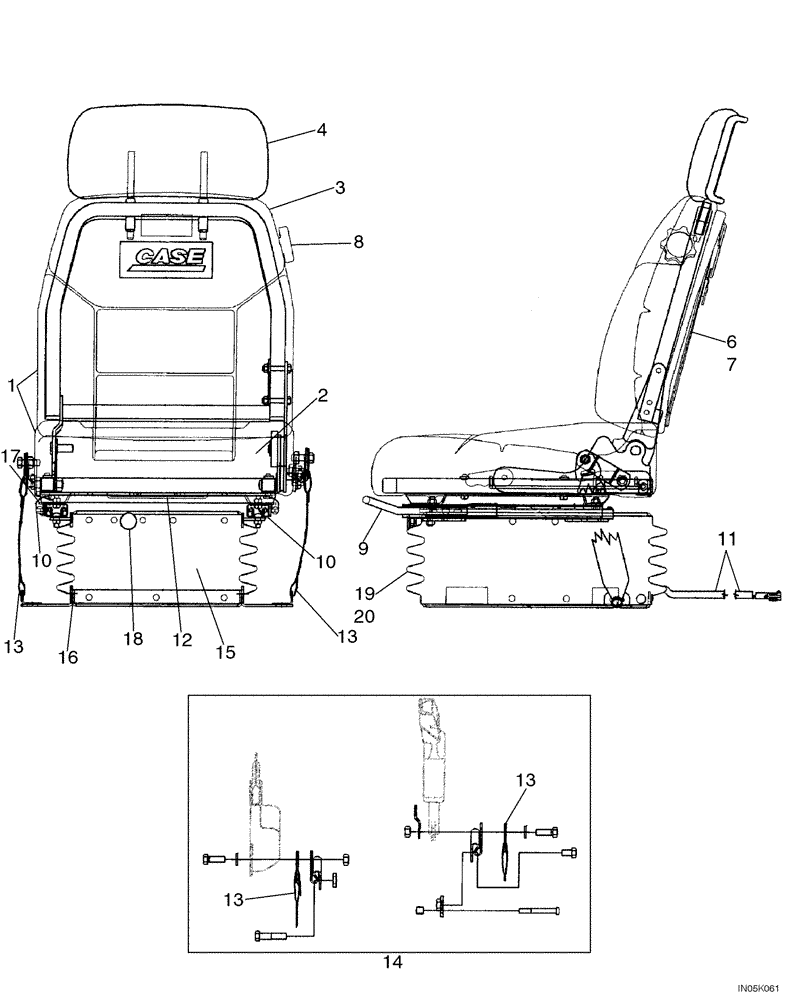

Запчасти Case 550H-IND (09-18) - SEAT ASSY, AIR SUSPENSION (09) - CHASSIS/ATTACHMENTS

374536A1

SEAT

Air Suspension; Gray Vinyl, Incl. Ref. 1 - 20

1шт.

1

389023A1

CUSHION ASSY.

Includes Seat and Backrest Cushion

1шт.

2

389024A1

CUSHION ASSY.

Seat

1шт.

3

389025A1

CUSHION ASSY.

Backrest

1шт.

4

389026A1

CUSHION ASSY.

Backrest, Upper

1шт.

5

176091A1

PACKAGE,SERVICE

Hog Ring; Cushion Retainer; Package Of 50 Not Illustrated

1шт.

1981820C2

PACKAGE, REPAIR

Cover, Back, Includes Manual Holder, Incl. 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Cover, Back, Includes Manual Holder

1шт.

7

1999693C1

KIT

Clip; Package Of 12

1шт.

8

1987212C1

PACKAGE

Back Tilt Knob, Includes Knob, Handle, Screw

1шт.

389272A1

KIT

Includes Slides, Springs, Pivot Pin and Retaining Ring

1шт.

9

389030A1

LEVER

Slide Release

1шт.

10

389269A1

SLIDE

6 in. Travel

2шт.

180587A1

HANDLE

Slide Control

1шт.

11

389281A1

HARNESS

1шт.

1990548C4

KIT

Airline and Fittings, Includes Instructions

1шт.

12

182991A1

LARGE PLATE

PLATE, LARGE Adapter

1шт.

13

389277A1

SAFETY BELT ,48mm W x 283mm L

2шт.

14

389085A1

KIT

Seat Belt Mounting, Includes (2) Brackets, (3) Spacers, (1) Plate, (6) Bolts, (2) Nuts

1шт.

15

389029A1

SUSPENSION

Air; Boxed

1шт.

1344249C1

KIT

Kit, Roller Tube Bearing, Includes (4) Tube Bearings, (6) Rollers, (2) Suspension Shock Bearings, (1) 131-425 Push Nuts, (1) A45519 Plastic Washer

1шт.

197793A1

SPRING

Air, Includes (1) Spring, (1) J-Clamp, (3) L18337 Tie Straps

1шт.

A49529

SHAFT

Bearing

2шт.

389280A1

ARM

Suspension

1шт.

16

389278A1

HOUSING

Lower; Boxed

1шт.

17

389279A1

HOUSING

Upper; Boxed

1шт.

389282A1

KIT

Shock Absorber, Includes (1) Shock, (2) Bearings, (1) Push Nut

1шт.

389283A1

KIT

Air Compressor

1шт.

1981852C3

SWITCH

Valve, Air Control; Incl. Ref. 18

1шт.

18

1987186C2

KNOB

Air Control Valve, Includes Set Screw

1шт.

133422A1

BUMPER

1 inch Diameter; Round

2шт.

A45054

BUMPER,Neoprene

1 x 1 in.; Square

1шт.

180593A1

KIT

Bumper, Includes (2) Bumpers, (2) Spacers, (2) 340-12520 Screws, (2) 231-1444 Nuts

1шт.

1990647C2

KIT

Kit, Boot, Incl. Ref. 19, 20

1шт.

19

NSS

NOT SOLD SEPARAT

Boot

1шт.

20

132872A1

KIT

Boot Retainer, Includes (20) Retainers, (3) Push Nuts, (3) Clips

1шт.
