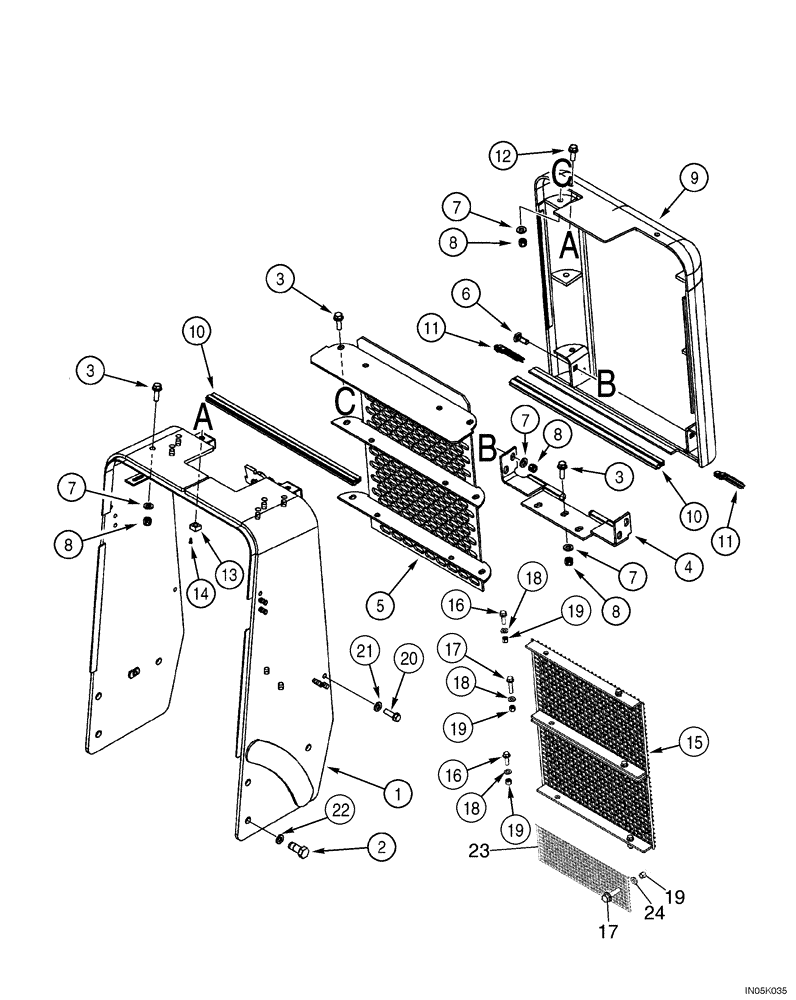

Запчасти Case 550H-IND (09-13) - GUARD, RADIATOR - GRILLE AND SCREEN (09) - CHASSIS/ATTACHMENTS

1

316626A1

FRAME ASSY

Guard Radiator

1шт.

2

107-91228

LOCK BOLT,Locking, 3/4"-10 x 1 3/4", G8, Full Thd

6шт.

3

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

Flange 1/2 x 1-1/2; 8

15шт.

4

363645A1

SLIDE

Hinge Grille

1шт.

5

348493A1

GRILLE

1шт.

6

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

4шт.

7

496-21053

WASHER,17/32" x 1 1/16" x .134"

19шт.

8

231-1448

NUT,1/2"-13, GB

19шт.

9

348310A1

FRAME ASSY

1шт.

10

305241A1

SEAL

Rubber 596 mm (23-1/2 in)

2шт.

11

332501A1

SEAL

Rubber 118 mm (4-3/4 in)

2шт.

12

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

2шт.

13

224-2808

SQUARE NUT,Sq, 1/2"-13, G2, Hvy

2шт.

14

336371A1

PIN,4.88mm OD x 14.23mm L

2шт.

15

364060A1

SCREEN

Radiator Brush If Equipped

1шт.

16

160-103

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

4шт.

17

160-104

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8

Flange 1/2 x 1-1/4; 8

5шт.

18

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8

6шт.

19

231-1446

NUT,3/8" - 16, Gr 5

9шт.

20

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

21

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

22

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

Special

6шт.

23

395570A1

SCREEN

Lower Brush

1шт.

24

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

0.406 x 1.38

6шт.
