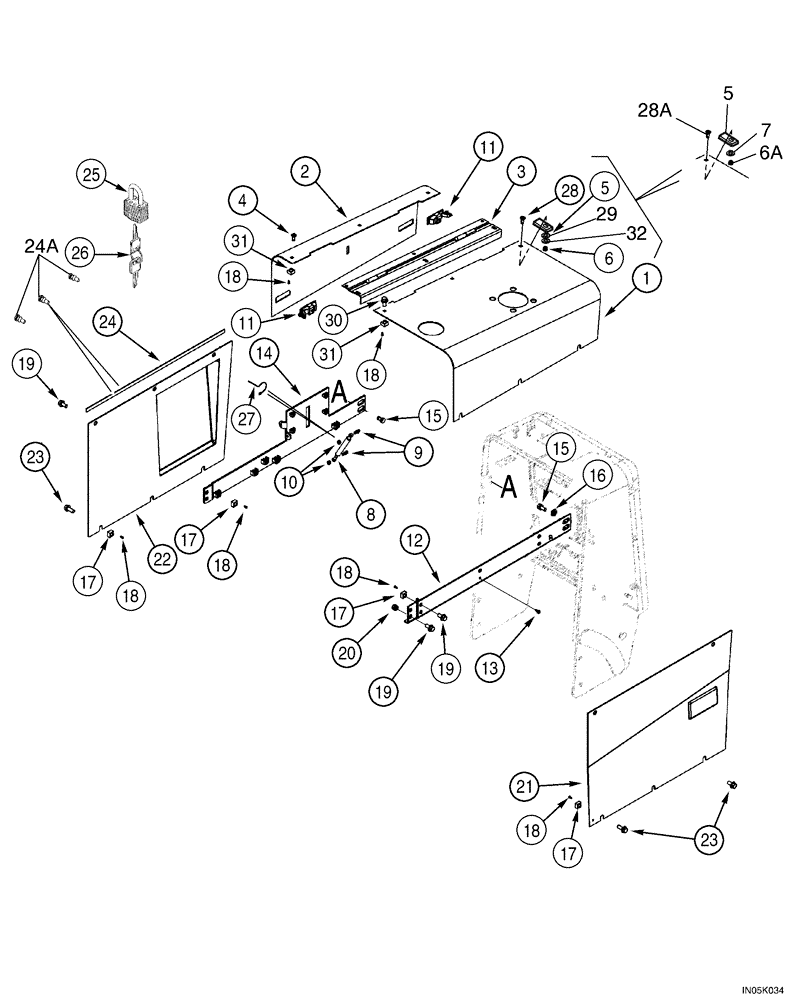

Запчасти Case 550H-IND (09-12) - HOOD, SHIELDS AND SUPPORTS (09) - CHASSIS/ATTACHMENTS

1

358628A1

HOOD

Engine Right Hand

1шт.

2

358629A1

HOOD

Engine Left Hand

1шт.

3

359291A1

HOOD

Hinge

1шт.

4

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

Flange 3/8 x 3/4; 8

4шт.

5

356567A1

PLATE

1шт.

6

231-1446

NUT,3/8" - 16, Gr 5

If Used

1шт.

6a

425-106

NUT,3/8"-16, Cl 5

If Used

1шт.

7

496-41041

WASHER,13/32" x 1 1/8" x .134"

Replaces Ref. 29, 32

1шт.

8

189787A2

SHOCK ABSORBER

Spring

1шт.

9

F44882

BALL

Stud; If Used

2шт.

9

109498A1

STUD

Ball; If Used

2шт.

10

231-1445

NUT,5/16"-18, GB

2шт.

11

356924A3

LATCH

Includes Hardware, Replaces 356924A2 and Also Replaces 356924A1 Used On Some Models

2шт.

12

347745A1

SUPPORT

Panel Right Hand

1шт.

13

A161780

BUMPER

1шт.

14

347747A2

SUPPORT

Panel Left Hand, Replaces 347747A1

1шт.

15

413-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

Bolt 1/2 x 7/8

4шт.

16

R54996

SPACER

2шт.

17

224-2808

SQUARE NUT,Sq, 1/2"-13, G2, Hvy

13шт.

18

336371A1

PIN,4.88mm OD x 14.23mm L

18шт.

19

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

12шт.

20

231-1448

NUT,1/2"-13, GB

4шт.

21

347604A1

SHIELD

Right Hand

1шт.

22

338182A1

SHIELD

Left Hand

1шт.

23

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

6шт.

24

364081A1

PAD

825 mm Adhesive Back; If Used

1шт.

24a

395800A1

BUMPER

Rubber; If Used

3шт.

25

D93753

PADLOCK

Includes. Ref. 26

1шт.

26

R29555

KEY

For Master Padlock Only

2шт.

26

D93751

SET OF 2 KEYS

For Yale Padlock Only

2шт.

27

F44883

CLIP,DIN 71805 - S10

Retainer Spring

2шт.

28

160-103

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

If Used

1шт.

28a

160-104

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8

Flange 3/8 x 1.75; 8; If Used

1шт.

29

496-21053

WASHER,17/32" x 1 1/16" x .134"

1шт.

30

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

1шт.

31

224-2806

SQUARE NUT,Sq, 3/8"-16, G2, Hvy

Square 3/8

5шт.

32

492-11038

LOCK WASHER,3/8"

1шт.
