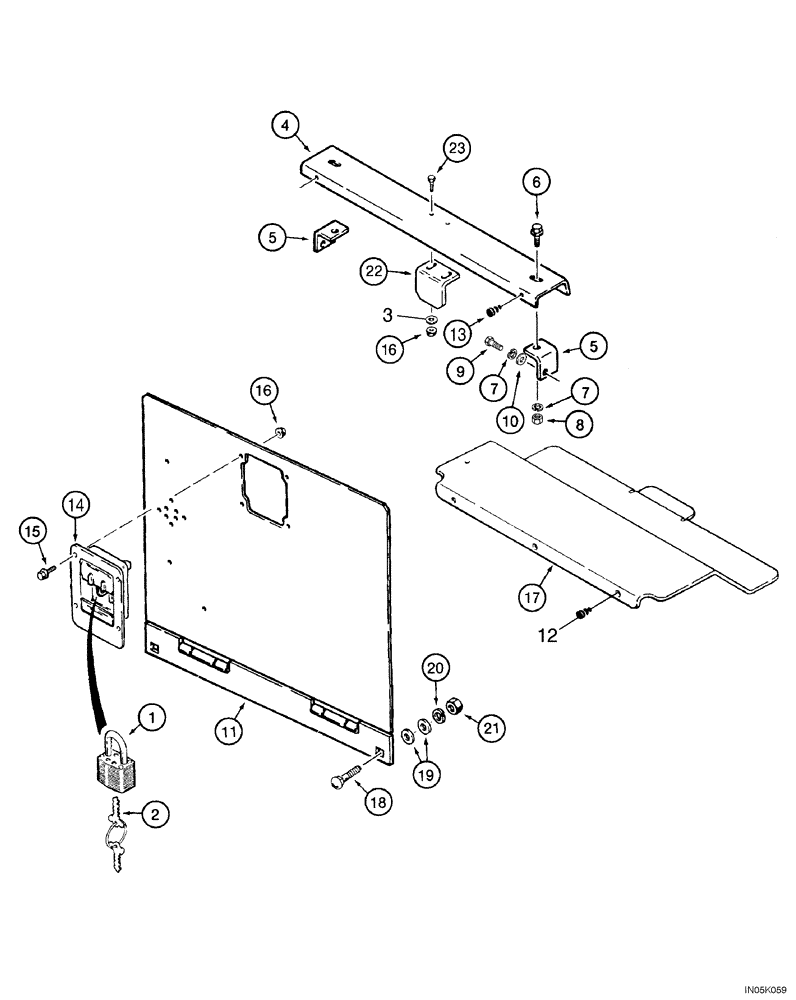

Запчасти Case 550H-IND (09-11) - COVERS, REAR (09) - CHASSIS/ATTACHMENTS

1

D93753

PADLOCK

Includes. Ref. 2

1шт.

2

R29555

KEY

For Master Padlock Only

2шт.

2

D93751

SET OF 2 KEYS

For Yale Padlock Only

2шт.

3

495-21031

WASHER,1/4"

5/16 x 3/4 x 1/16

2шт.

4

R57059

COVER

Tool Box

1шт.

5

R48725

SUPPORT

2шт.

6

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

2шт.

7

492-11038

LOCK WASHER,3/8"

4шт.

8

425-106

NUT,3/8"-16, Cl 5

2шт.

9

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

10

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

11

300236A1

PLATE ASSY.

Cover, Rear

1шт.

12

F22426

STOP

Bumper

3шт.

13

A161780

BUMPER

2шт.

14

R56221

LATCH

1шт.

15

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

16

231-5344

FLANGE NUT,Flg, 1/4"-20

6шт.

17

R58789

COVER

Battery

1шт.

18

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

2шт.

19

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

4шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

21

425-108

NUT,1/2" - 13, Gr 5

2шт.

22

R57058

SUPPORT

Plate, Catch

1шт.

23

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.
