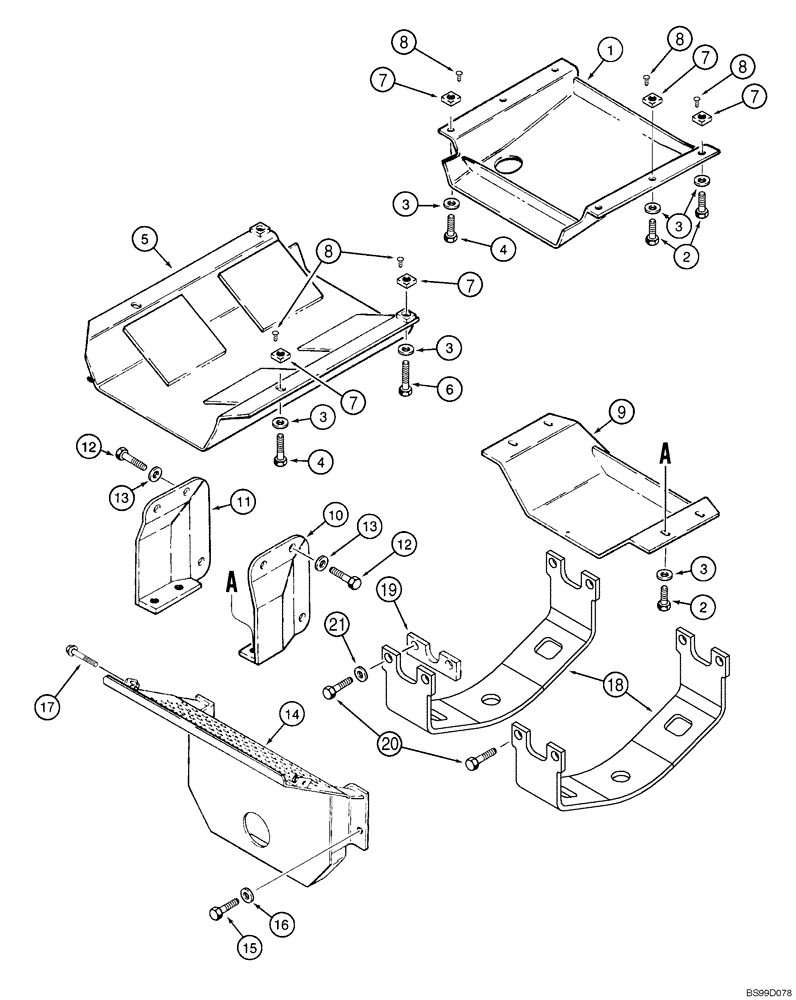

Запчасти Case 550H-IND (09-10) - SHIELDS, UNDERCARRIAGE - SHIELDS, TRANSMISSION (09) - CHASSIS/ATTACHMENTS

1

R46842

GUARD

Protective, Front Engine

1шт.

2

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

8шт.

3

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

Washer 5/8

14шт.

4

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

5

125071A1

SHIELD

Protective, Center Torque Converter and Transmission

1шт.

6

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

7

129-860

SQUARE NUT,Sq, 5/8"-11

10шт.

8

336371A1

PIN,4.88mm OD x 14.23mm L

10шт.

9

R52242

GUARD

Protective, Rear

1шт.

10

R58652

COVER

Protective, Right Hand Side Transmission

1шт.

11

R58653

COVER

Protective, Left Hand Side Transmission

1шт.

12

326-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

Replaces 326-1236 Bolt 3/4 x 2-1/4; 8

6шт.

13

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

19.8 x 44.5 x 5.6

6шт.

14

R47231

GUARD

Protective, Upper Rear Transmission Used on Models With No Rear Equipment

1шт.

15

413-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

3/4 x 1-1/4

2шт.

16

496-41081

WASHER,13/16" x 1 3/4" x .219", HDN

2шт.

17

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

2шт.

18

R57675

GUARD

Protective, Side Final Drive Not Recommended on Models With Rubber Track

2шт.

19

R57676

SPACER

2шт.

20

326-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

Use Loctite No. 242

8шт.

B17577

LOCTITE

No. 242, 6 ml

1шт.

21

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

19.8 x 44.5 x 5.6

4шт.
