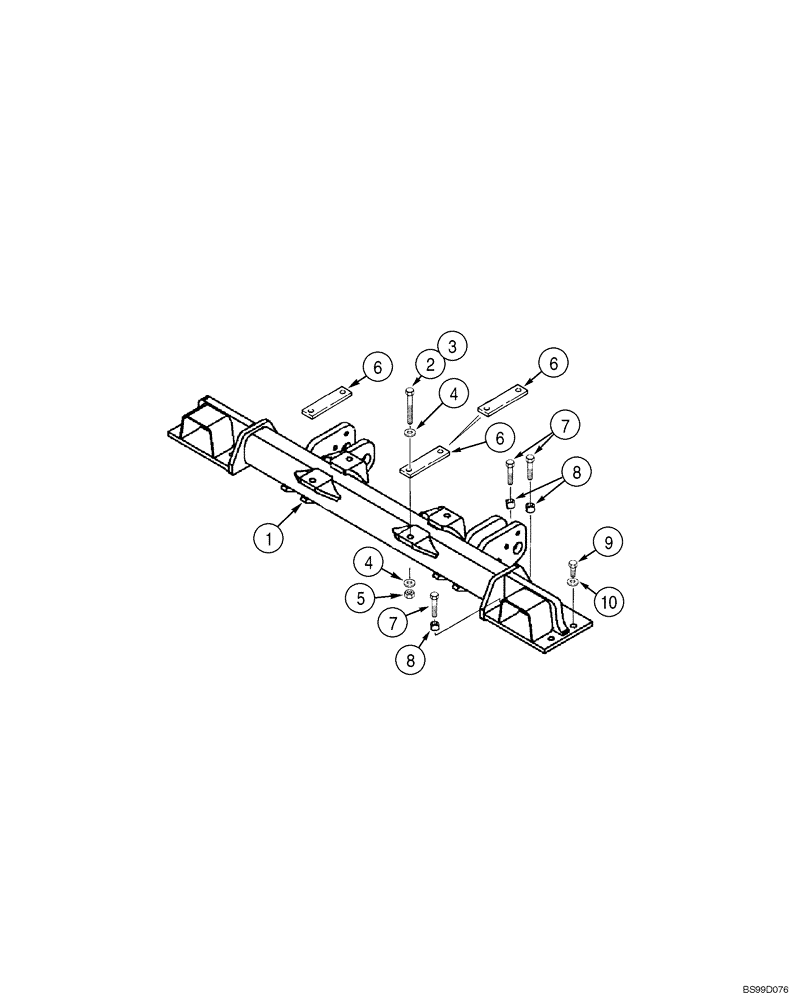

Запчасти Case 550H-IND (09-09) - CROSSMEMBER, MOUNTING - 1627 MM (64 IN) GAUGE WIDE TRACK (WT) OR LOW GROUND PRESSURE (LGP) MODELS (09) - CHASSIS/ATTACHMENTS

1

317869A1

CROSSMEMBER

1шт.

2

326-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

Used on models with Case lubricated track chain

4шт.

3

326-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 8

Used on models with extended life track chain

4шт.

4

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

Special

8шт.

5

232-41112

NUT,3/4"-10, GC

4шт.

6

136061A1

SPACER

Used on Models With Case Lubricated Track Chain

2шт.

6

136061A1

SPACER

Used on Models With Extended Life Track Chain

4шт.

7

107-91248

LOCK BOLT,Locking, 3/4"-10 x 3", G8

6шт.

8

R30398

SPACER

Spacer

6шт.

9

107-91232

LOCK BOLT,Locking, 3/4"-10 x 2", G8

4шт.

10

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

Special

4шт.
