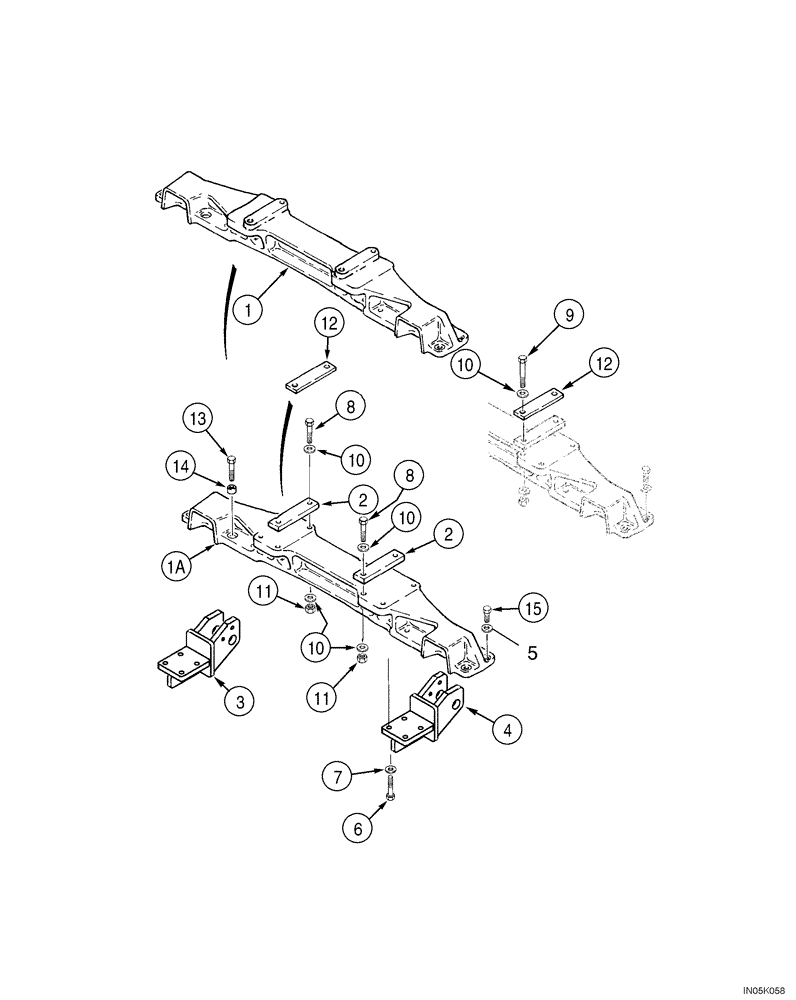

Запчасти Case 550H-IND (09-08) - CROSSMEMBER, MOUNTING (09) - CHASSIS/ATTACHMENTS

1

224060A2

MEMBER

Production Only With Built-In Spacers For Service Order : 1A, 2

1шт.

1a

R47683

LARGE PLATE

PLATE, LARGE Crossmember Service Replacement

1шт.

2

136061A1

SPACER

2шт.

3

318451A1

BRACKET

Right Hand Lift Frame Mounting

1шт.

4

318513A1

BRACKET

Left Hand Lift Frame Mounting

1шт.

5

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

Special, 1346 mm (53") gauge long track (LT) models rubber track models

4шт.

6

326-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

Use Loctite No. 242

8шт.

B17577

LOCTITE

No. 242, 6 ml

1шт.

7

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

Special

8шт.

8

326-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 8

Used on models without spacers, Ref. 12

4шт.

9

326-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 8

Used on models with spacers, Ref. 12

4шт.

10

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

Special, 1346 mm (53") Gauge Long Track (LT) Models Rubber Track Models

8шт.

11

232-41112

NUT,3/4"-10, GC

1346 mm (53") Gauge Long Track (LT) Models Rubber Track Models

4шт.

12

136061A1

SPACER

Used on Models With Rubber Tracks or Extended Life Track Chain, 1346 mm (53") Gauge Long Track (LT) Models Rubber Track Models

2шт.

13

326-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

Use Loctite No. 242, 1346 mm (53") gauge long track (LT) models rubber track models

4шт.

B17577

LOCTITE

No. 242, 6 ml, 1346 mm (53") Gauge Long Track (LT) Models Rubber Track Models

1шт.

14

R30398

SPACER

Spacer, 1346 mm (53") Gauge Long Track (LT) Models Rubber Track Models

4шт.

15

107-91232

LOCK BOLT,Locking, 3/4"-10 x 2", G8

1346 mm (53") Gauge Long Track (LT) Models Rubber Track Models

4шт.
