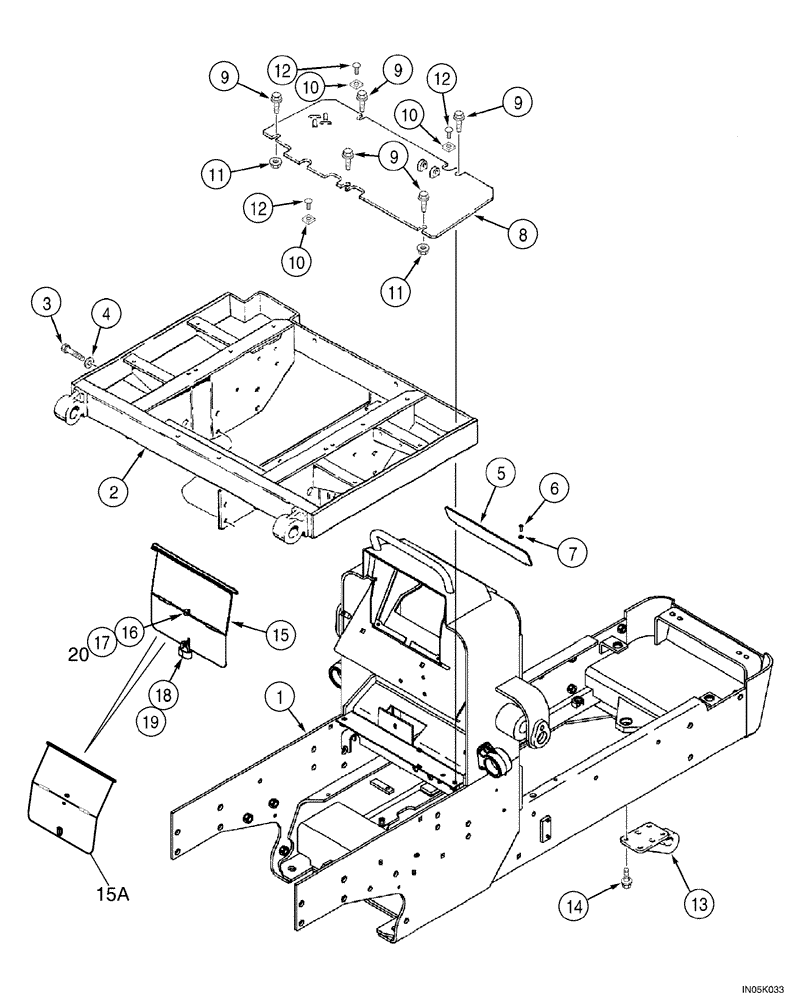

Запчасти Case 550H-IND (09-07) - FRAME, MAIN - FRAME, SEAT AND RESERVOIR (09) - CHASSIS/ATTACHMENTS

1

316624A1

FRAME

1шт.

2

R58150

FRAME

Seat and Reservoir

1шт.

3

107-91228

LOCK BOLT,Locking, 3/4"-10 x 1 3/4", G8, Full Thd

8шт.

4

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

19.8 x 44.5 x 5.6

8шт.

5

315661A1

FLOOR

Plate Door

1шт.

6

140-112

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

2шт.

7

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

2шт.

8

R58655

PLATE

Floor

1шт.

9

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

5шт.

10

224-2808

SQUARE NUT,Sq, 1/2"-13, G2, Hvy

3шт.

11

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

12

336371A1

PIN,4.88mm OD x 14.23mm L

3шт.

13

R50469

HOOK

Towing If Equipped

1шт.

14

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

Flange 1/2 x 1-1/2; 8

6шт.

15

331718A1

DOOR ASSY.

No Longer Available, Order 372198A1 Door/W, Ref. 15A

1шт.

15a

372198A1

DOOR ASSY.

Lock Up

1шт.

16

140-105

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

17

358920A1

KNOB

1шт.

18

D93753

PADLOCK

Includes. Ref. 19 If Equipped

1шт.

19

R29555

KEY

For Master Padlock Only

2шт.

19

D93751

SET OF 2 KEYS

For Yale Padlock Only

2шт.

20

385967A1

STRIP

Magnetic

1шт.
