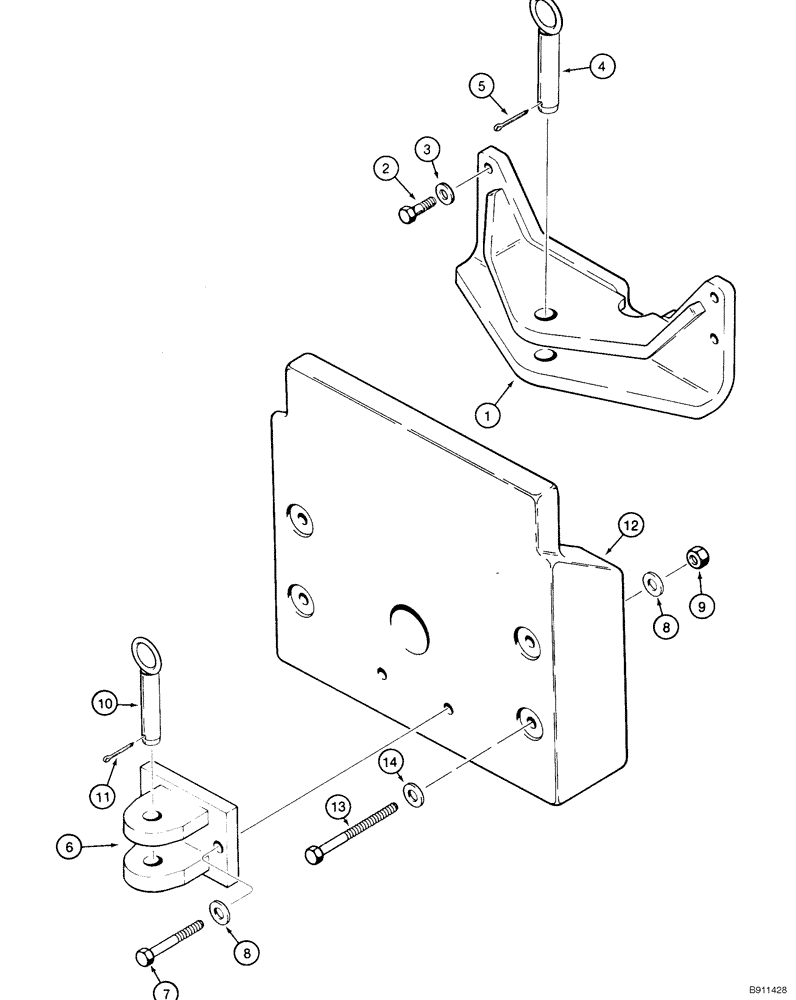

Запчасти Case 550H-IND (09-06) - DRAWBAR, COUNTERWEIGHT (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
R47224
DRAWBAR
1шт.
2
326-1232
BOLT,Hex, 3/4" - 10 x 2", Gr 8
4шт.
3
D34666
WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk
Special
4шт.
4
R24105
DRAWBAR
Pin, Hitch
1шт.
5
32-1632
COTTER PIN,1/4" x 2"
1шт.
6
R39904
DRAWBAR
1346 mm (53") Gauge Long Track (LT) Models With No Rear Equipment
1шт.
7
326-1272
BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8
1346 mm (53") gauge long track (LT) models with no rear equipment
2шт.
7
326-1272
BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8
1346 mm (53") gauge long track (LT) models with no rear equipment
2шт.
8
496-41081
WASHER,13/16" x 1 3/4" x .219", HDN
Replaces T53681 Washer 19.8 x 44.5 x 5.6, 1346 mm (53") Gauge Long Track (LT) Models With No Rear Equipment
4шт.
9
425-1012
NUT,3/4"-10, G5
1346 mm (53") Gauge Long Track (LT) Models With No Rear Equipment
2шт.
10
R24105
DRAWBAR
Pin, Hitch, 1346 mm (53") Gauge Long Track (LT) Models With No Rear Equipment
1шт.
11
32-1632
COTTER PIN,1/4" x 2"
1346 mm (53") gauge long track (LT) models with no rear equipment
1шт.
12
R57072
BALANCER
Counterweight 227 kg (500 lb), 1346 mm (53") Gauge Long Track (LT) Models With No Rear Equipment
1шт.
13
413-12120
BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5
3/4 x 7-1/2; 5, 1346 mm (53") Gauge Long Track (LT) Models With No Rear Equipment
4шт.
14
496-41081
WASHER,13/16" x 1 3/4" x .219", HDN
Replaces T53681 Washer 19.8 x 44.5 x 5.6, 1346 mm (53") Gauge Long Track (LT) Models With No Rear Equipment
4шт.
Выбрано товаров: 15
