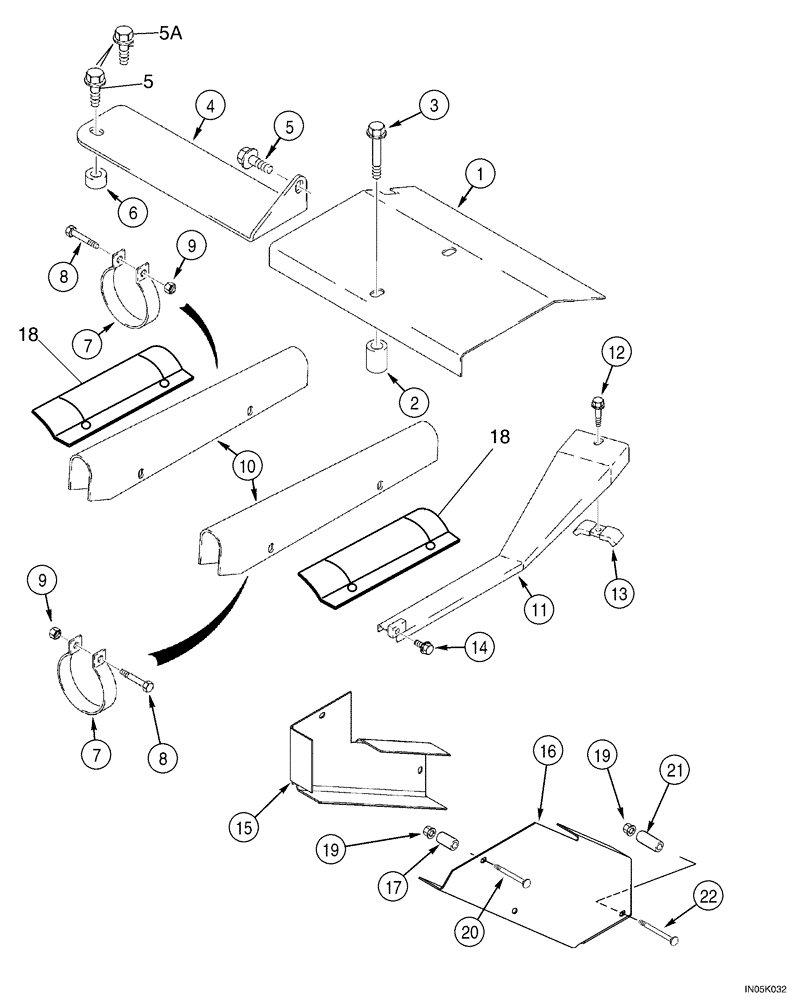

Запчасти Case 550H-IND (09-04) - SHIELDS, DOZER HYDRAULICS (09) - CHASSIS/ATTACHMENTS

1

355534A1

GUARD

Protective Slide

1шт.

2

120929A1

SPACER

2шт.

3

360-1040

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

Flange 5/8 x 2-1/2; 8

2шт.

4

331494A1

GUARD

Protective Tilt Cylinder

1шт.

5

360-1020

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

Flange 5/8 x 1-1/4; 8

2шт.

5a

360-1028

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

5/8 - 11 x 1-3/4; 8, If Used

1шт.

6

123577A1

SPACER

1шт.

7

331493A1

CLAMP

4шт.

8

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

9

231-1446

NUT,3/8" - 16, Gr 5

4шт.

10

331492A1

GUARD

Protective Angle Cylinder Hose

2шт.

11

331489A1

GUARD

Protective Tilt Cylinder Lines

1шт.

12

160-104

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8

Flange 1/2 x 1-1/4; 8

1шт.

13

D40236

CLAMP

1шт.

14

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

3/8 x 3/4; 8

1шт.

15

347855A1

GUARD

Protective Angle Cylinder Hose Left Hand

1шт.

16

347854A1

GUARD

Protective Hose Right Hand

1шт.

17

347856A1

SPACER

3шт.

18

390613A1

GUARD

Angle Side

2шт.

19

425-288

FLANGE NUT,Flg, 1/2"-13, G5

Flange 1/2

10шт.

20

433-872

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 4 1/2", Gr 5

Bolt, Carriage 1/2 x 4-1/2

3шт.

21

348641A1

SPACER

2шт.

22

433-888

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 5 1/2", Gr 5

1/2 x 5-1/2

2шт.
