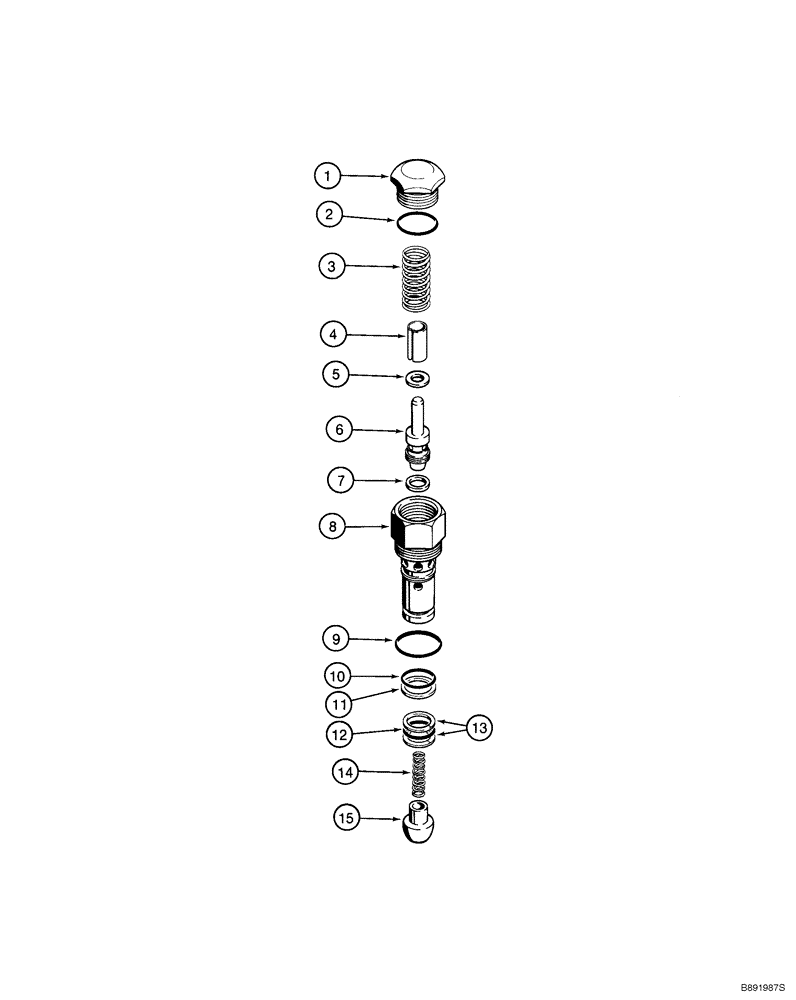

Запчасти Case 550H-IND (08-22) - VALVE ASSY, RELIEF (08) - HYDRAULICS

N8950

VALVE

Relief Consists Of : 1 - 15

2шт.

1

D39716

PLUG

Cap

2шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

N8196

SPRING

Valve

1шт.

4

N8190

SLEEVE VALVE

1шт.

5

A55893

SHIM,.0418" Thk

(1.016 mm)

1шт.

5

A55894

SHIM,.0209" Thk

(0.508 mm)

1шт.

5

D39712

SHIM

0.254 mm (0.01 in)

1шт.

18-1417

SEAL

Consists Of : 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Plunger

1шт.

7

D39714

RING

Seal

1шт.

8

NSS

NOT SOLD SEPARAT

Body

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

11

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

Backup

1шт.

12

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

13

D88725

BACK-UP RING

2шт.

14

H268730

SPRING

1шт.

15

D28576

VALVE POPPET

1шт.
