Запчасти Case 550H-IND (08-21) - VALVE ASSY, CHECK, LOAD CHECK VALVE (08) - HYDRAULICS

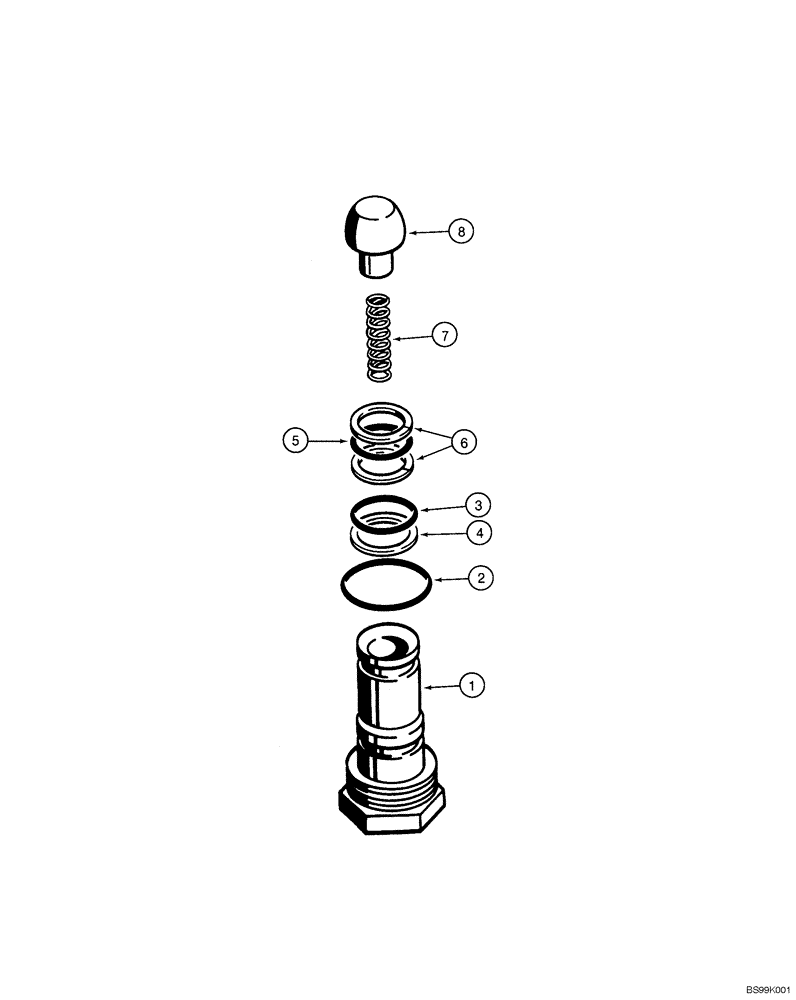

Схема запчастей Case 550H-IND - (08-21) - VALVE ASSY, CHECK, LOAD CHECK VALVE (08) - HYDRAULICS
4
7
1
5
3
2
8
6

Артикул

Название

Примечание

Количество

D87307

VALVE

Check Load Check Consists Of : 1 - 8

6шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

4

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

Backup

1шт.

5

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

6

D88725

BACK-UP RING

2шт.

7

H268730

SPRING

1шт.

8

D28576

VALVE POPPET

1шт.

Выбрано товаров: 9
