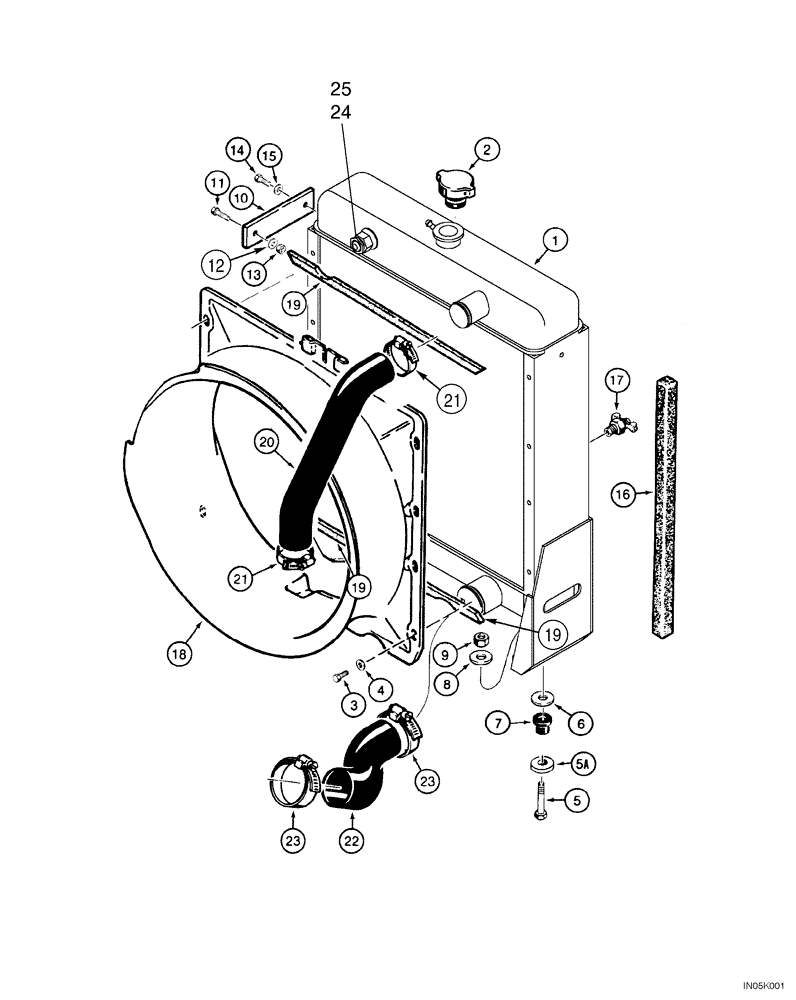

Запчасти Case 550H-IND (02-03) - RADIATOR (02) - ENGINE

1

87433698

RADIATOR

Standard, Replaces 375306A1 Radiator If Equipped

1шт.

1

87433699

RADIATOR

Heavy Duty, Replaces 375307A1 Radiator If Equipped

1шт.

2

A170241

RADIATOR CAP

15 psi

1шт.

3

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

Use Loctite No. 242

4шт.

B17577

LOCTITE

No. 242, 6 ml

1шт.

4

R55271

WASHER

Special

4шт.

5

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

5a

D25022

WASHER

Special

2шт.

6

R40262

WASHER,13.11mm ID x 47.75mm OD x 2.38mm Thk

Special

2шт.

7

R29799

SHOCK ABSORBER

2шт.

8

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

9

231-4118

LOCK NUT,1/2"-13, GB

1/2

2шт.

10

A170665

STABILIZER

Strap

2шт.

11

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

12

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

Special

2шт.

13

231-1446

NUT,3/8" - 16, Gr 5

2шт.

14

613-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

Use Loctite No. 242

2шт.

B17577

LOCTITE

No. 242, 6 ml

1шт.

15

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

2шт.

16

R53691

FILLING STRIP

580 mm ( 23-13/16 in) Cut From : A139751

2шт.

17

217-92

COCK

1/4

1шт.

18

186433A1

SHROUD

1шт.

19

178769A1

SEAL

Adhesive Back Radiator Shroud

2шт.

20

A170239

RADIATOR HOSE,45.00 mm ID x 265.00 mm, SAE 20R4 CLASS C PER SAE J20 OR SAE 20R4 CLASS D1

Upper

1шт.

21

214-3140

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

Hose Upper

2шт.

22

A170633

RADIATOR HOSE,58.00 mm ID x 220.00 mm, SAE 20R4 PER SAE J20 OR SAE 20R4 CLASS D1

Lower

1шт.

23

214-3148

HOSE CLAMP,2-1/4" - 3-1/8", HD Worm

Hose, Lower

2шт.

24

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

25

412530A1

SIGHTGLASS

1шт.
