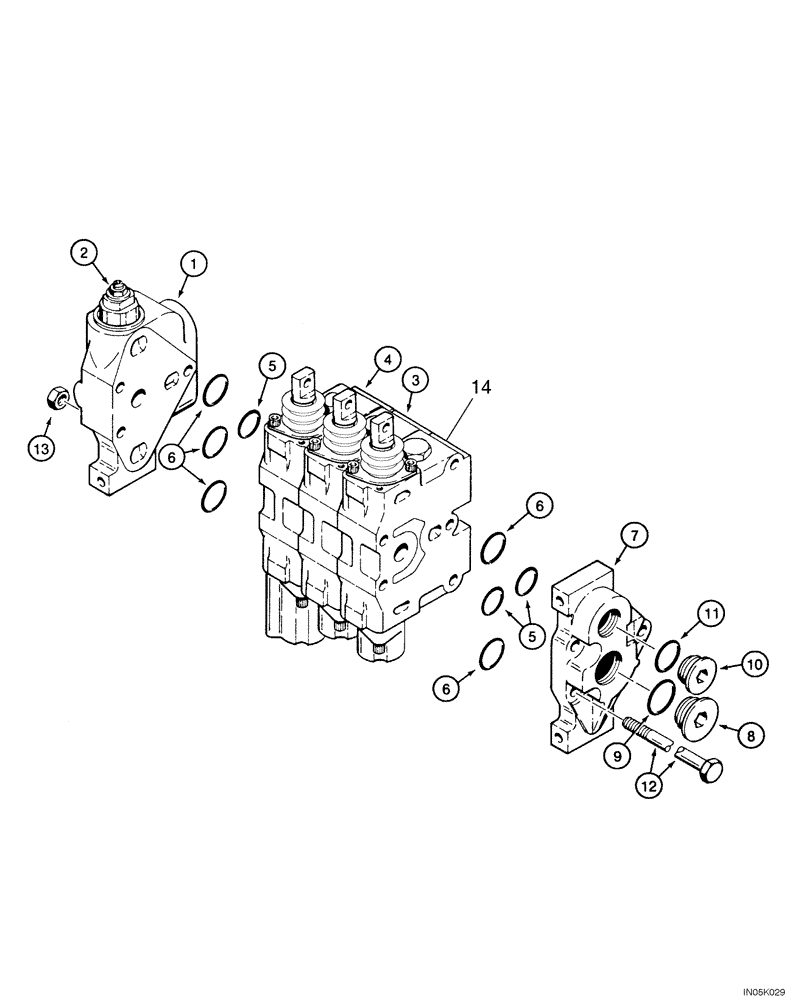

Запчасти Case 550H-IND (08-16) - VALVE, CONTROL, 3 SECTIONS (08) - HYDRAULICS

336345A4

HYDRAULIC VALVE

Valve Assy, Control, 3 Spool Consists Of : 1 - 13, Replaces A1-A3.Also Replaces 336343A1-336343A4 Which Was Used in Production

1шт.

1

N8942

VALVE BLOCK

Housing Inlet And Outlet

1шт.

2

N8191

VALVE

Relief Main See Figure(s) : 08-18 See Note

1шт.

3

357165A3

HYD VALVE SECTION

Tilt Control Angle See Figure(s) : 08-20, Replaces 357165A1 & 357165A2

2шт.

4

357161A3

HYD VALVE SECTION

Lift Control See Figure(s) : 08-19, Replaces 357161A1 & 357161A2

1шт.

REF

INSTRUCTION

Valve Assy, Control 3 Spool

1шт.

5

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

5шт.

6

238-5119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

11шт.

7

100825A1

COVER

End Assy, Includes : 8 - 11

1шт.

8

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

Includes 9

1шт.

9

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

10

9841223

PLUG,1-1/16" - 12 ORB

Incl. 11

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

413-6128

BOLT,Hex, 3/8" - 16 x 8", Gr 5

3/8 x 8

3шт.

13

425-106

NUT,3/8"-16, Cl 5

3шт.

14

394606A2

HYD VALVE SECTION

Angle Control, Replaces 357165A3, Ref. 3, Qty 1; If Used, Also Replaces 394606A1

1шт.
