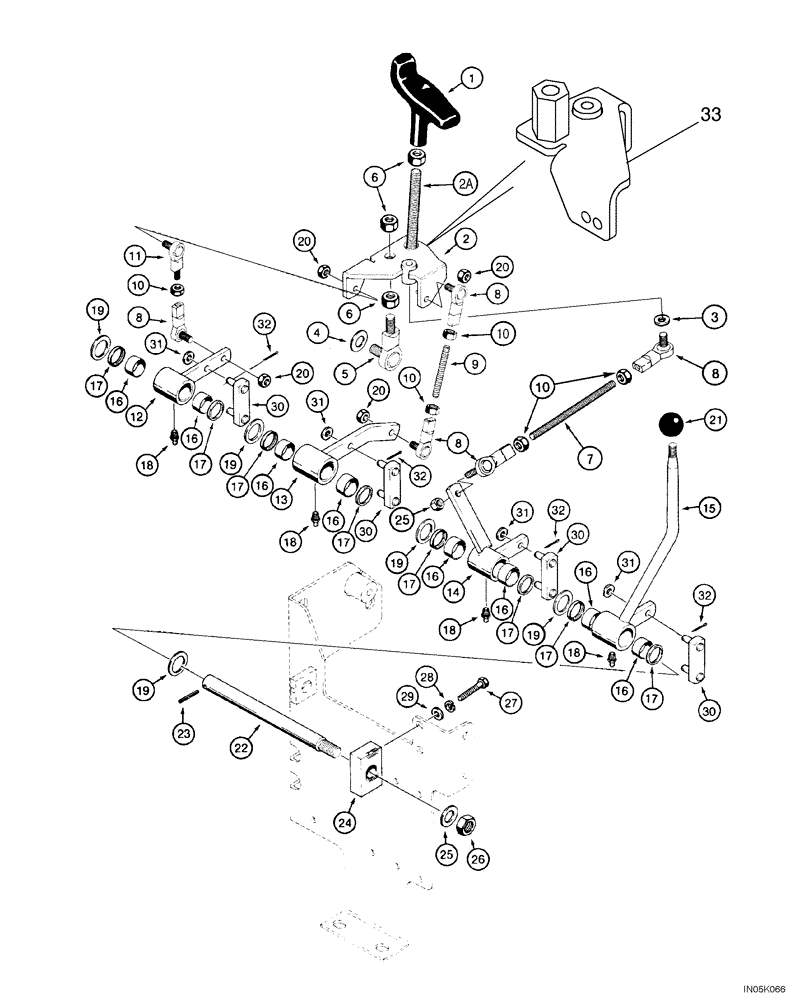

Запчасти Case 550H-IND (08-15) - CONTROLS - LEVER AND LINKAGE, MODELS WITH FOUR SPOOL CONTROL VALVE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
R58490
HANDLE
1шт.
2
377400A1
BRACKET
No Longer Available, Order 377400A2 Ref. 33
1шт.
2a
363251A1
ROD
1/2 NF x 89 mm
1шт.
3
495-11034
WASHER,5/16", SAE
(11/32 x 11/16 x 1/16")
1шт.
4
495-11053
WASHER,1/2", SAE
(17/32" x 1-1/16" x 3/32")
1шт.
5
A55558
BALL JOINT
Male
1шт.
6
425-158
JAM NUT,Jam, 1/2"-20, G5
Use Loctite No. 242
3шт.
B17577
LOCTITE
No. 242, 6 ml
1шт.
7
377403A1
ROD
Threaded 5/16 NF x 131 mm
1шт.
8
H289652
BALL JOINT,5/16" - 24 x 1-3/8" L
Joint, 5/16 NF Female
5шт.
9
377402A1
ROD
Threaded 5/16 NF x 61 mm
1шт.
B17577
LOCTITE
No. 242, 6 ml
1шт.
11
R47939
ROD
Ball Joint, 5/16 NF Male Use Loctite No. 242
1шт.
B17577
LOCTITE
No. 242, 6 ml
1шт.
12
377393A1
ROCKER ARM
Lift, Includes : 16 - 18
1шт.
13
377395A1
ROCKER ARM
Tilt, Includes : 16 - 18
1шт.
14
R58246
ROCKER
Lever Assy Angle, Includes : 16 - 18
1шт.
15
R58249
LEVER
Auxiliary Control, Includes : 16 - 18
1шт.
16
L31166
NEEDLE BEARING
Roller
2шт.
17
A32309
SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk
Oil, Replaces 65457C1
2шт.
18
219-8
LUBE NIPPLE,1/4" - 28 NPTF
1шт.
19
1960614C1
WASHER,20mm ID x 35mm OD x 1.58mm Thk
Special Used as a Spacer
10шт.
20
232-4605
LOCK NUT,5/16"-24, GC
Use Loctite No. 242
5шт.
B17577
LOCTITE
No. 242, 6 ml
1шт.
21
70213
KNOB
1шт.
22
R58256
SHAFT
1шт.
23
438-11224
LOCK PIN,3/16" x 1 1/2", Slotted
3/16" x 1 1/2", Slotted
1шт.
24
R58257
BLOCK
1шт.
25
495-11066
WASHER,5/8", SAE
21/32 x 1-5/16 x 3/32
1шт.
26
231-24410
LOCK NUT,5/8"-18, GB
1шт.
27
413-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
2шт.
28
492-11038
LOCK WASHER,3/8"
2шт.
29
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
(13/32 x 13/16 x 1/16")
2шт.
30
139345A1
POWER ARM
Link
4шт.
31
495-11034
WASHER,5/16", SAE
(11/32 x 11/16 x 1/16")
1шт.
32
432-612
COTTER PIN,3/32" x 3/4"
8шт.
33
377400A2
BRACKET
1шт.
