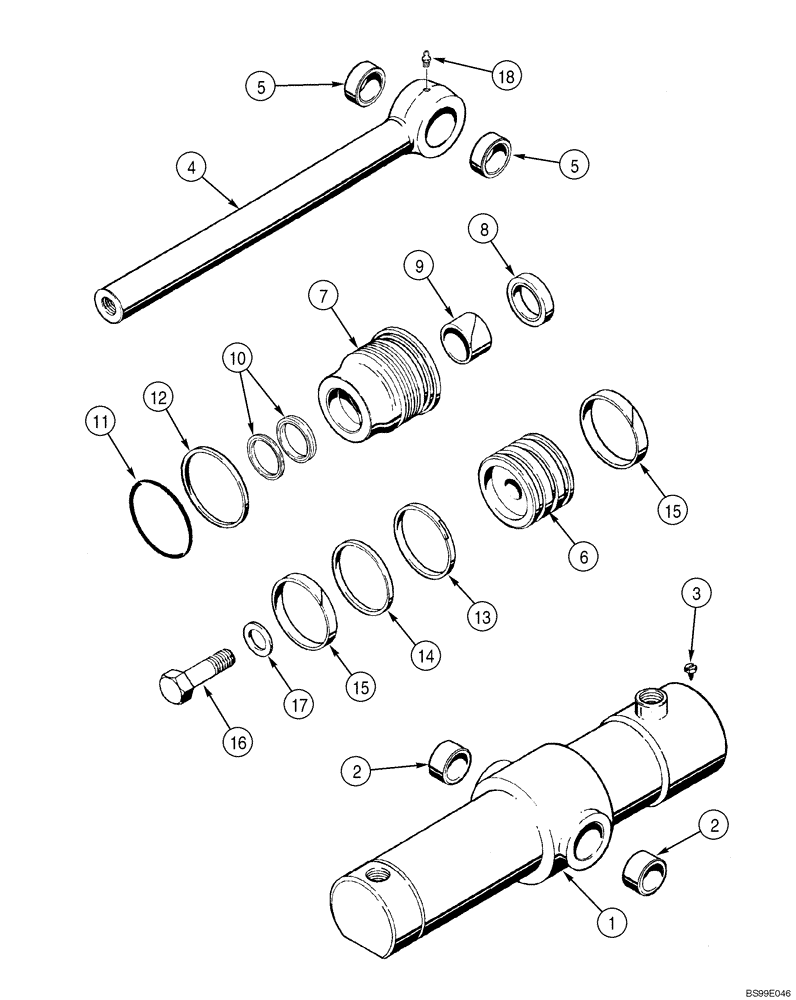

Запчасти Case 550H-IND (08-12) - CYLINDER ASSY, RIPPER (08) - HYDRAULICS

G101230

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 266.7mm Stroke

76 ID x 267 mm Strk Ripper Consists Of : 1 - 18

1шт.

1

D35123

TUBE

Includes : 2

1шт.

2

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

3

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

4

G33467

ROD

Includes : 5

1шт.

5

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

6

G100442

PISTON

1шт.

7

1542962C1

GLAND

Packing

1шт.

1543252C1

SEAL KIT

Consists Of : 8 - 15

1шт.

8

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

Wiper

1шт.

9

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

1шт.

10

NSS

NOT SOLD SEPARAT

Kit Seal Order : 1543252C1

1шт.

11

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

12

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

1шт.

13

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

1шт.

14

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

Ring

1шт.

15

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

2шт.

16

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

1шт.

17

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.
