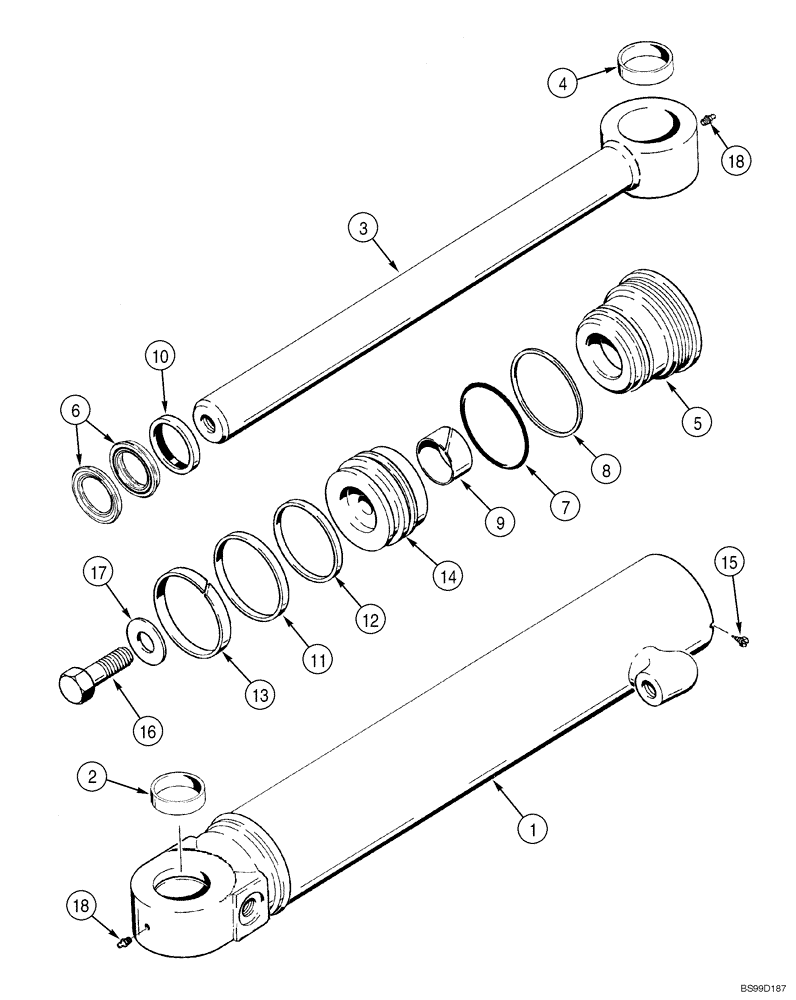

Запчасти Case 550H-IND (08-09) - CYLINDER ASSY, LIFT (08) - HYDRAULICS

307112A1

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 574.7mm Stroke

76 ID x 574 mm Strk Lift Consists Of : 1 - 18

2шт.

1

307113A1

TUBE,772.2 mm Length

Includes : 2

1шт.

2

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

1-3/4 x 2-1/4 x 3/4

2шт.

3

307117A1

ROD ASSY.

Piston, 45 mm (1-3/4 inch) dia, Includes : 4

1шт.

4

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

1-3/4 x 2-1/4 x 3/4

2шт.

5

1340795C2

CYLINDER END CAP

Gland, Packing

1шт.

1543267C1

SEAL KIT

Consists of 6 - 13

1шт.

6

NSS

NOT SOLD SEPARAT

Kit Seal Order : 1543267C1

1шт.

7

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

8

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

Backup

1шт.

9

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

10

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

Wiper

1шт.

11

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

1шт.

12

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

Ring

1шт.

13

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

1шт.

14

133097A1

PISTON

1шт.

15

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

16

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

17

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.
