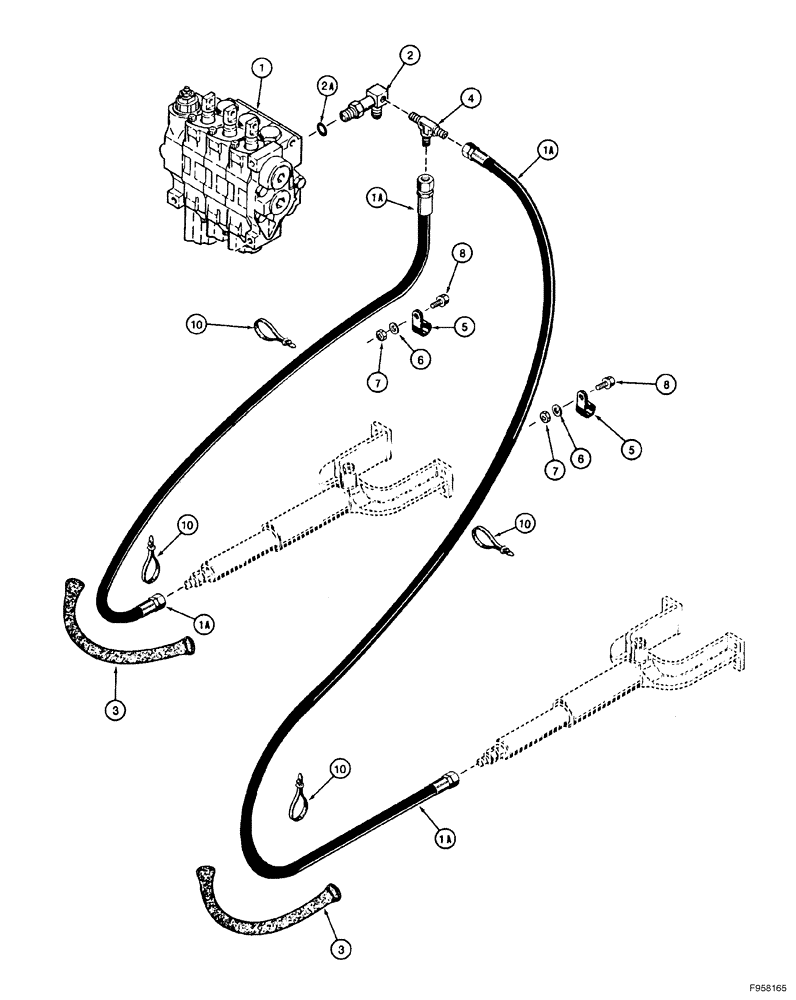

Запчасти Case 550H-IND (08-08) - HYDRAULIC CIRCUIT, TRACK TENSIONER (08) - HYDRAULICS

1

336345A4

HYDRAULIC VALVE

Valve Assy, Control, 3 Spool Replaces A1-A3.Also Replaces 336343A1-336343A4 Which Was Used In Production

1шт.

1a

125093A1

HYDRAULIC HOSE

3099 mm (102 inch)

2шт.

2

123816A1

ELBOW

90 With Check Port, Includes : 2A

1шт.

2a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

125104A1

SHIELD

Sleeve, Hose

2шт.

4

218-612

TEE,1/2"-20, 37 Degree x 1/8"-27, NPTF Run

1шт.

5

D41564

2шт.

6

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

7

425-108

NUT,1/2" - 13, Gr 5

2шт.

8

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

9

125266A1

LINK

Clamp, Not Illustrated

2шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 Inch, Nylon

8шт.
