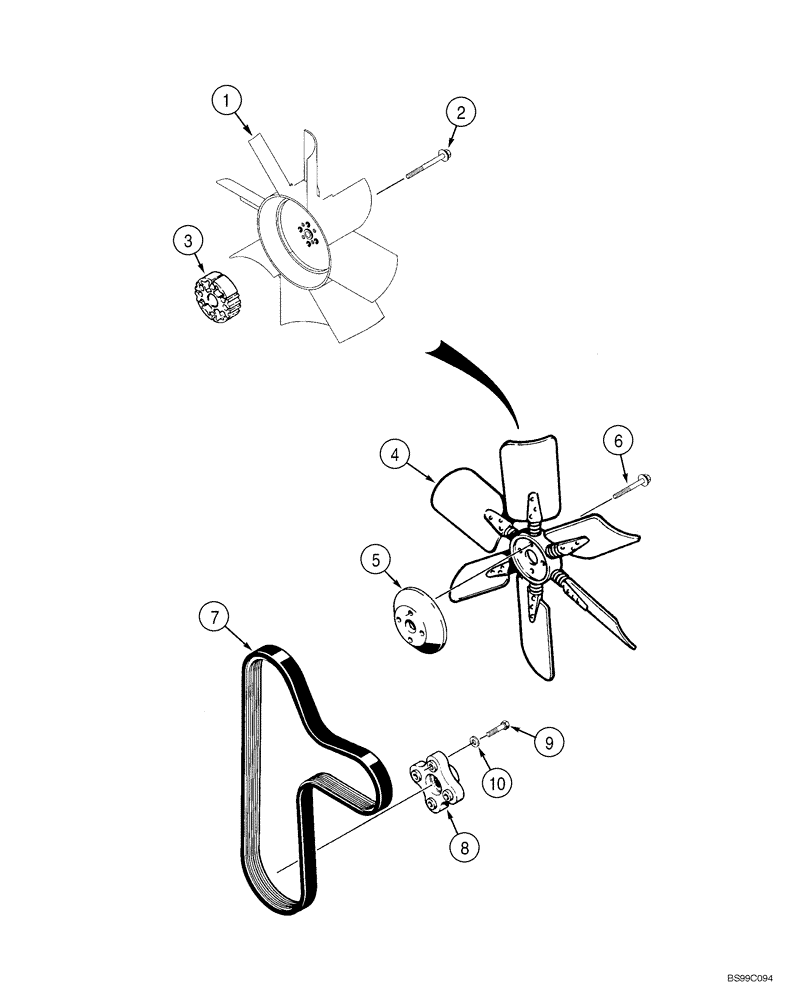

Запчасти Case 550H-IND (02-02) - FAN, FAN BELT (02) - ENGINE

1

302686A1

FAN

500 mm dia Pusher Engine Cooling If Equipped

1шт.

2

193426A1

BOLT

Special, M10 x 70; Used With Ref. 1

4шт.

3

A184523

SPACER

47.5 mm; Used With Ref. 1

1шт.

4

284533A1

FAN

500 mm dia, Reversible If Equipped

1шт.

5

A184539

SPACER

Used With Ref. 4

1шт.

6

193425A1

FLANGE BOLT,M10 x 1.5 x 50mm

Special, M10 x 50; Used With Ref. 4

4шт.

7

J911563

V-BELT,27.92mm W x 1536.7mm L, 8 Ribs

1шт.

8

D140524

FLEXIBLE COUPLING,13T

Crankshaft

1шт.

9

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

7/16 x 1-1/2

4шт.

10

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

4шт.
