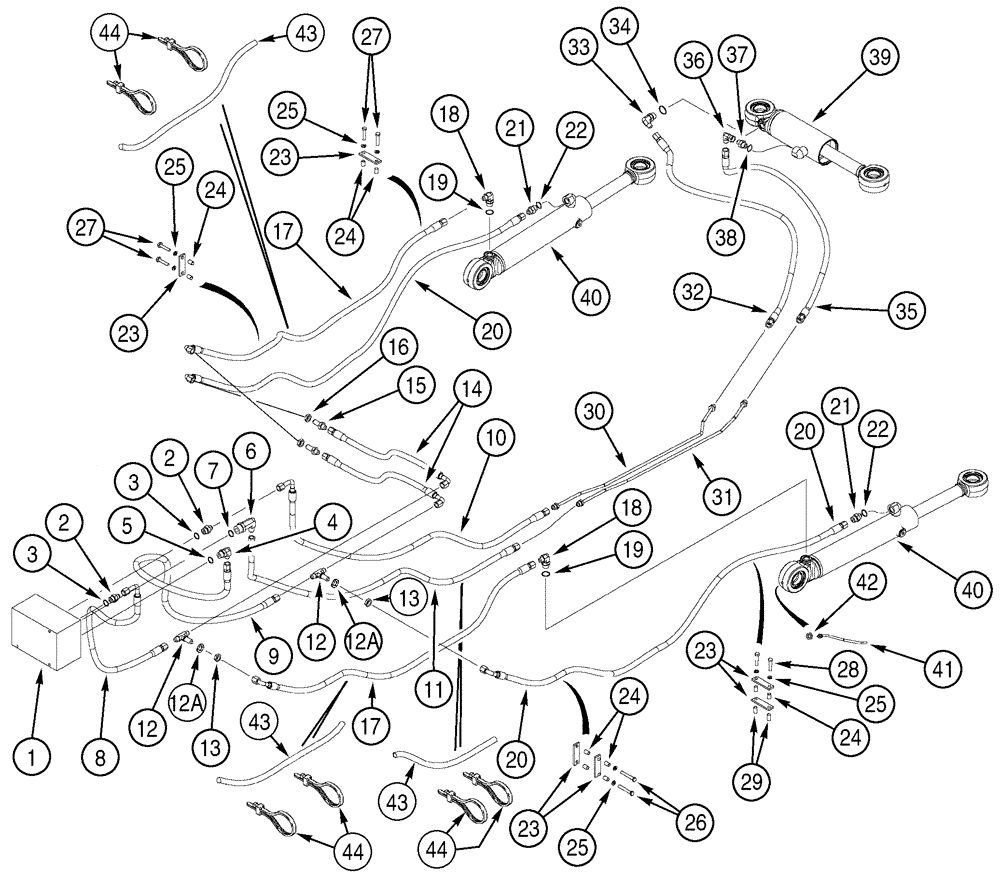

Запчасти Case 550H (8-06) - HYDRAULICS, TILT AND ANGLE CIRCUITS (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve, Control See Figure(s) : 8-16, 8-17

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, Incl. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Includes 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

D36934

FITTING

90, 3/4 fl x 7/8 adj Or Includes : 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

315677A1

HOSE

1120 mm (44 inch) Upper Port Of Control Valve Angle Cylinder

1шт.

9

315681A1

HOSE

1025 mm (40-1/4 inch) Lower Port Of Control Valve Angle Cylinder

1шт.

10

315666A1

HOSE

2054 mm (80-7/8 inch) Upper Port Of Control Valve Tilt Cylinder

1шт.

11

315669A1

HOSE

2032 mm (80 inch) Lower Port Of Control Valve Tilt Cylinder

1шт.

12

218-805

TEE,3/4"-16, 37 Degree, Blkhd

2шт.

12a

D35268

SHIM,1/32" Thk

2шт.

13

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

2шт.

14

322139A1

HOSE

590 mm (23-1/4 inch)

2шт.

15

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

2шт.

16

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

2шт.

17

315672A1

HOSE

1555 mm (61-1/4 inch) Angle Cylinder Closed End

2шт.

18

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Includes 19

2шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

20

315674A1

HOSE

1990 mm (78-3/8 inch) Angle Cylinder Rod End

2шт.

21

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl. 22

2шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

23

123171A1

LARGE PLATE

PLATE, LARGE

6шт.

24

D36040

BUSHING

Spacer Short

10шт.

25

492-11038

LOCK WASHER,3/8"

8шт.

26

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

3/8 x 2-1/4; Replaces 413-636

2шт.

27

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

28

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

29

123172A1

SPACER

Long

2шт.

30

315683A1

HYD TUBE,9.5 mm OD, 900.5, 86.3 mm Length

Upper Port Of Control Valve Tilt Cylinder

1шт.

31

315685A1

HYD TUBE,9.5 mm OD, 921.4, 71.4 mm Length

Lower Port Of Control Valve Tilt Cylinder

1шт.

32

31-1083

HOSE ASSY.

1257 mm (49-1/2 inch) Tilt Cylinder Closed End

1шт.

33

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Includes 34

1шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

35

31-1253

HOSE ASSY.,12.7mm ID x 1193.8mm L, SAE 100R2

1194 mm (47 inch) Tilt Cylinder Rod End

1шт.

36

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

37

D48030

CONNECTOR, ELEC

CONNECTOR 3/4 fl x 7/8 Or With Orifice Includes : 38

1шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

39

347202A1

CYLINDER ASSY.

89 ID x 137 mm strk Tilt See Figure(s) : 8-10

1шт.

39

412683A1R

REMAN-HYD CYLINDER

550H (12/99-), Reman for New PN 347202A1

1шт.

39

412683A1C

CORE-HYD CYLINDER

Return Number

1шт.

40

307662A1

CYLINDER ASSY.

76 ID x 358 mm strk Angle See Figure(s) : 8-11

2шт.

41

L74161

HOSE,3.56mm ID x 533.4mm L, SAE 100R7

533 mm (21 inch) Includes Grease Fitting

1шт.

42

F53473

LOCK NUT,1/8-27 NPSM

Special, 1/8 PT Use Loctite No. 271

1шт.

B17500

LOCTITE

No. 271, 6 ml

1шт.

43

142310A1

SLEEVE

Hose

3шт.

44

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

6шт.
