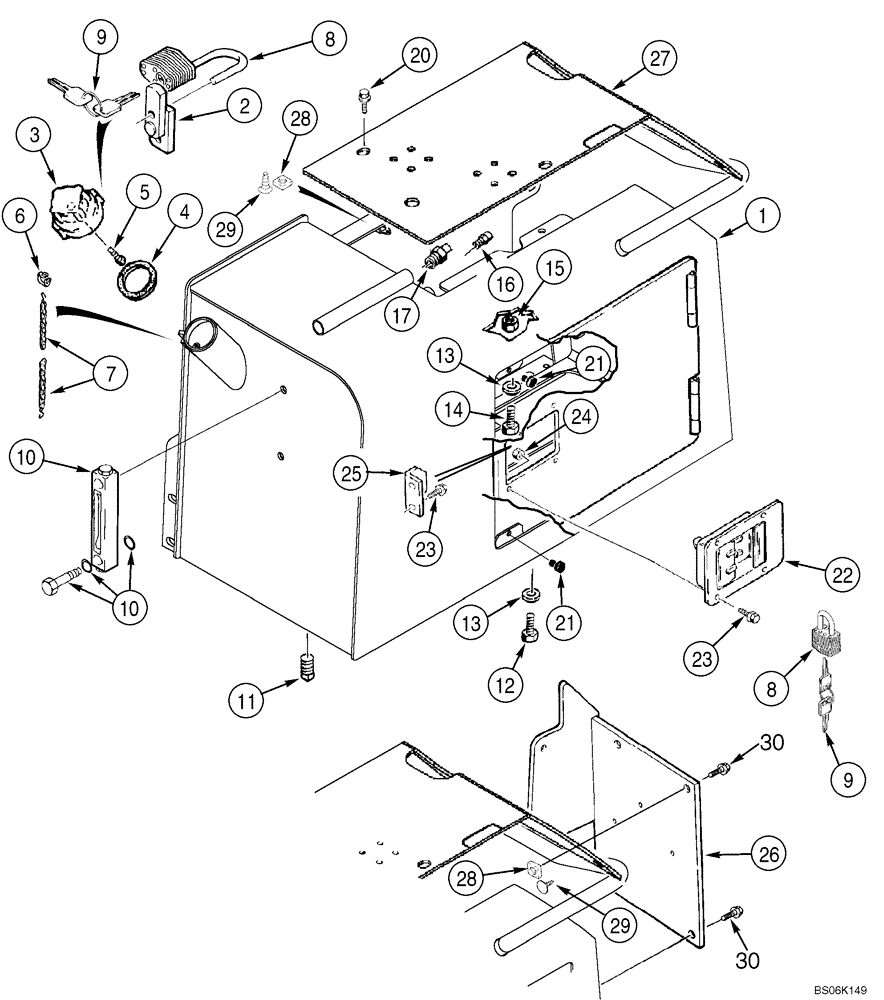

Запчасти Case 550H (8-01) - RESERVOIR, HYDRAULIC - COVERS (08) - HYDRAULICS

1

326973A2

TANK

Reservoir Includes : Ref 2

1шт.

2

R46704

BRACKET

Tab Fill Tube Weld-On

1шт.

3

L128669

CAP

Fill Tube

1шт.

4

R46984

GASKET

Cover

1шт.

5

301-14712

SCREW,Drive, #12 x 3/4"

2шт.

6

R48634

FASTENER

Hook

1шт.

7

R47786

CHAIN (CE)

241 mm (9-1/2 in)

1шт.

8

D93753

PADLOCK

Includes : 9

2шт.

9

R29555

KEY

For Master Padlock Only

2шт.

9

D93751

SET OF 2 KEYS

Yale Padlock Only

2шт.

10

226456A1

LEVEL GAUGE

Sight Component Parts Not Serviced Separately

1шт.

11

86637727

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

1-1/4 Use Loctite No. 592

1шт.

B17425

LOCTITE

No. 592, 50 ml

1шт.

12

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

Replaces 413-820

2шт.

13

496-21053

WASHER,17/32" x 1 1/16" x .134"

5шт.

14

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

Replaces 413-828

3шт.

15

425-108

NUT,1/2" - 13, Gr 5

3шт.

16

R15536

VALVE

Relief Use Loctite No. 592

1шт.

B17425

LOCTITE

No. 592, 50 ml

1шт.

17

R15538

VALVE

Air Use Loctite No. 592

1шт.

B17425

LOCTITE

No. 592, 50 ml

1шт.

20

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

Bolt, Flange 3/8 x 3/4; 8

5шт.

21

A161780

BUMPER

2шт.

22

R56221

LATCH

1шт.

23

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

24

231-5344

FLANGE NUT,Flg, 1/4"-20

4шт.

25

R56397

LARGE PLATE

PLATE, LARGE Catch

1шт.

26

R58343

COVER

Front

1шт.

27

326979A2

COVER ASSY

Top

1шт.

28

224-2806

SQUARE NUT,Sq, 3/8"-16, G2, Hvy

Square 3/8

6шт.

29

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

4шт.

30

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

3шт.
