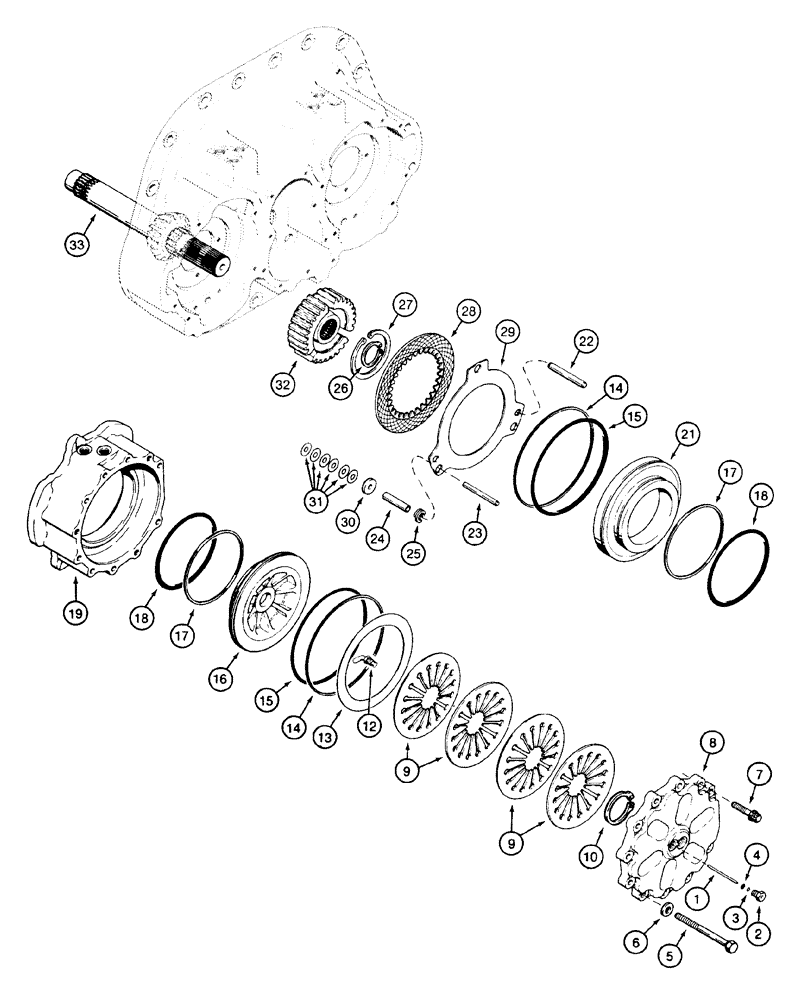

Запчасти Case 550H (7-03) - BRAKES, TRANSMISSION (07) - BRAKES

REF

INSTRUCTION

Transmission Includes : 1 - 33 For Complete Assembly See Figure(s) : 6-04, 6-12, 7-03

1шт.

1

1997011C4

PIN

Gauge, Sight Brake Wear

2шт.

2

1997050C3

PLUG

Special

2шт.

3

238-5006

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

2шт.

4

100-2531

SNAP RING,0.312", Int, #31

2шт.

5

107-9684

LOCK BOLT,Locking, 3/8"-16 x 5 1/4", G8

16шт.

6

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

13/32 x 13/16 x 3/32

16шт.

7

380-2628

12 PT SCREW,Flg, 3/8" - 16 x 1 3/4"

Bolt, Special 3/8 x 1-3/4

6шт.

8

1348963C3

COVER

Brake

2шт.

9

1348986C1

SPRING

8шт.

10

100-16193

SNAP RING,#193, Ext

2шт.

12

1997079C1

TUBE,7.94 mm OD

Lubrication

2шт.

13

1348999C1

SPRING WASHER,146.8mm ID x 187mm OD x 1.05mm Thk

Spring

2шт.

14

1348992C1

SEAL

4шт.

15

238-7167

O-RING,0.103" Thk x 6.987" ID, -167, Cl 7, 75 Duro

4шт.

16

1348971C2

PISTON

Brake

2шт.

17

1348903C1

SEAL

4шт.

18

238-5159

O-RING,0.103" Thk x 4.987" ID, -159, Cl 5, 75 Duro

4шт.

19

1348960C2

HOUSING

Left Hand

1шт.

20

1997049C1

HOUSING

Right Hand

1шт.

21

1348972C2

PISTON

2шт.

22

37-1852

DOWEL,3/4" x 3 1/4"

1/2 x 3-1/4

4шт.

23

37-1652

DOWEL,3/8" x 3 1/4"

3/8 x 3-1/4

6шт.

24

1348983C1

TUBE,9.83 mm ID, 12.7 mm OD, 50 mm Length

Self Adjuster

6шт.

25

100-1450

SNAP RING,#50, Ext

12шт.

26

800-1140

SNAP RING,M40, Ext

2шт.

27

800-2188

SNAP RING,M88, Int

Retaining No. 88

2шт.

28

G102354

PLATE

Disc, Friction

8шт.

29

1348965C3

LARGE PLATE

PLATE, LARGE Separator

10шт.

30

25553R1

WASHER,13/32" x 1 1/8" x .134", HDN

13/32 x 1-1/8 x 9/64

6шт.

31

1348985C1

SPRING

36шт.

32

1348981C1

HUB

Brake

2шт.

33

REF

INSTRUCTION

Shaft, Pinion See Figure(s) : 6-04

2шт.
