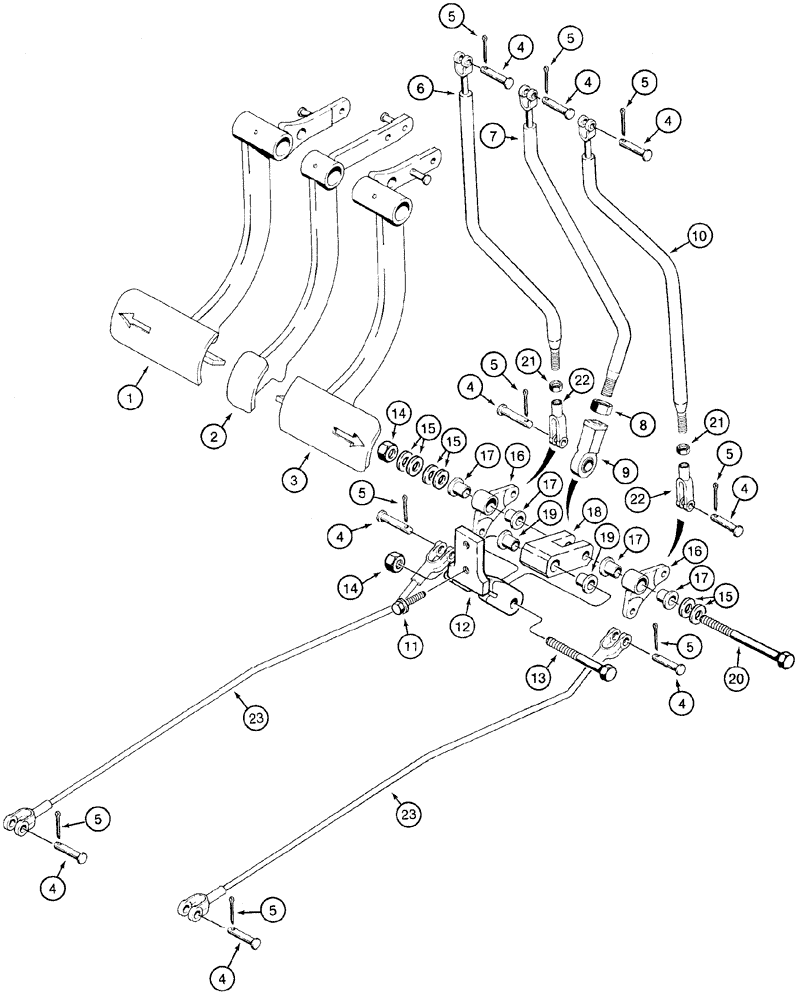

Запчасти Case 550H (6-20) - TRANSMISSION, LINKAGE, CLUTCH CUTOUT (06) - POWER TRAIN

1

R58466

PEDAL

Brake Left Hand See Figure(s) : 7-01

1шт.

2

R58628

PEDAL

Brake Center See Figure(s) : 7-01

1шт.

3

R58465

PEDAL

Brake Right Hand See Figure(s) : 7-01

1шт.

4

D149287

PIN,7.9mm OD x 26.72mm L

Clevis

9шт.

5

432-612

COTTER PIN,3/32" x 3/4"

9шт.

6

R58671

ROD

Left Hand

1шт.

R58704

ROD

Center Consists Of : 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

Rod

1шт.

8

425-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

9

L115782

BALL JOINT

Female

1шт.

10

R58669

ROD

Right Hand

1шт.

11

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

2шт.

12

R58701

BRACKET

1шт.

13

426-864

BOLT,Hex, 1/2" - 13 x 4", Gr 8

1/2 x 4; 8

1шт.

14

231-1448

NUT,1/2"-13, GB

2шт.

15

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

6шт.

R58374

CRANK LEVER

Consists Of : 16, 17

2шт.

16

NSS

NOT SOLD SEPARAT

Bellcrank

1шт.

17

R58311

BRONZE BUSHING

Bushing

2шт.

R58375

BLOCK

Consists Of : 18, 19

2шт.

18

NSS

NOT SOLD SEPARAT

Block

1шт.

19

R58311

BRONZE BUSHING

Bushing

2шт.

20

426-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 8

Bolt 1/2 x 5-1/2; 8

1шт.

21

425-115

NUT,5/16"-24, G5

2шт.

22

213-125

ADJUSTABLE CLEVIS,5/16" - 32

2шт.

23

R58644

ROD

Rod

2шт.
