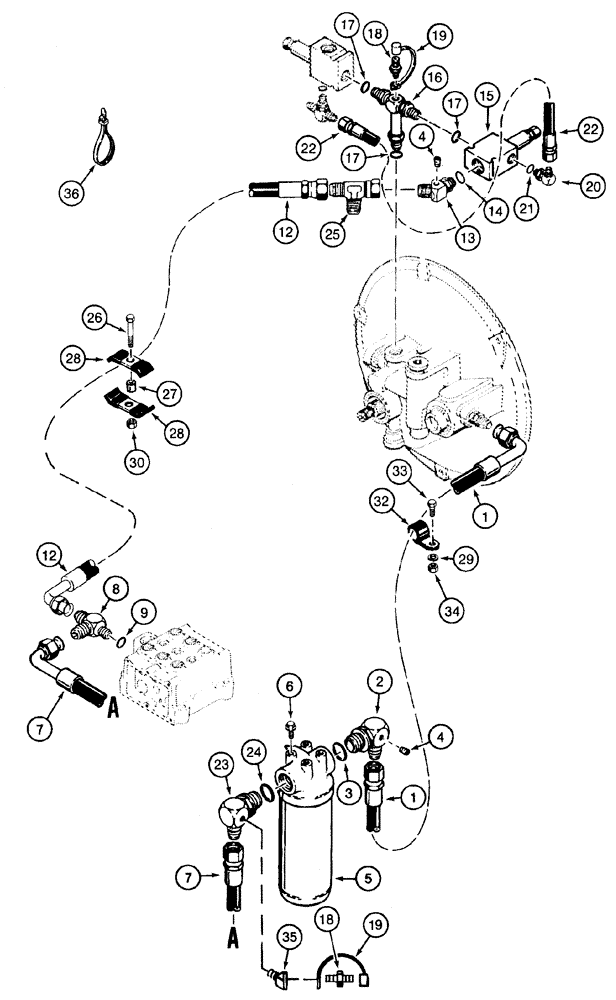

Запчасти Case 550H (6-13) - HYDRAULIC CIRCUIT - CRAWLER, TORQUE CONVERTER TO TRANSMISSION (06) - POWER TRAIN

1

R57653

HOSE ASSY.

1640 mm (64-5/8 inch) Torque, Serial Range: Converter-Filter

1шт.

2

R49557

FITTING

90 Includes : 3

1шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

4

86539484

PIPE PLUG,Sq Hd, 1/8"-27, NTPF

1/8 PT

2шт.

5

R48993

FILTER

Transmission Oil See Figure(s) : 6-16

1шт.

6

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

Flange 3/8 x 3/4; 8

4шт.

7

132860A1

HOSE

990 mm (39 inch) Filter to Transmission Control Valve

1шт.

8

218-5594

TEE,37 Degree, 1 1/16"-12, 7/8"-14 O-Ring Run, 1 1/16"-12

Includes : 9

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

12

178403A1

HOSE ASSY.

875 mm (34-7/16 inch) Control Valve to Relief Valve

1шт.

13

R57596

FITTING

45 Includes : 14

1шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

R57582

VALVE

Relief Component Parts Not Serviced Separately See Below

1шт.

S301087

SEAL KIT

Service Repair For : R57582 Services External O-Rings and Seals

1шт.

16

R57585

FITTING

Includes : 17 See Page(s) : 6-15 Attaches To : REF 11

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3шт.

18

H434164

COUPLING

2шт.

19

H434163

DUST CAP

2шт.

20

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes 21

1шт.

22

L19294

HOSE,0.38" ID x 18.75", SAE 100R1

476 mm (18-3/4 inch) Relief Valve to Pressure Sensing Valve

1шт.

23

E20132

FITTING

90 Includes : 24

1шт.

24

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

25

218-5219

TEE,37 Degree, 7/8"-14 x 3/4"-16, Fem Sw Run x 3/4"-16 Br

1шт.

26

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

27

D76208

SPACER

1шт.

28

R15257

CLAMP

2шт.

29

492-11038

LOCK WASHER,3/8"

1шт.

30

231-1446

NUT,3/8" - 16, Gr 5

1шт.

32

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

1шт.

33

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

34

425-106

NUT,3/8"-16, Cl 5

1шт.

35

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

1шт.

36

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
