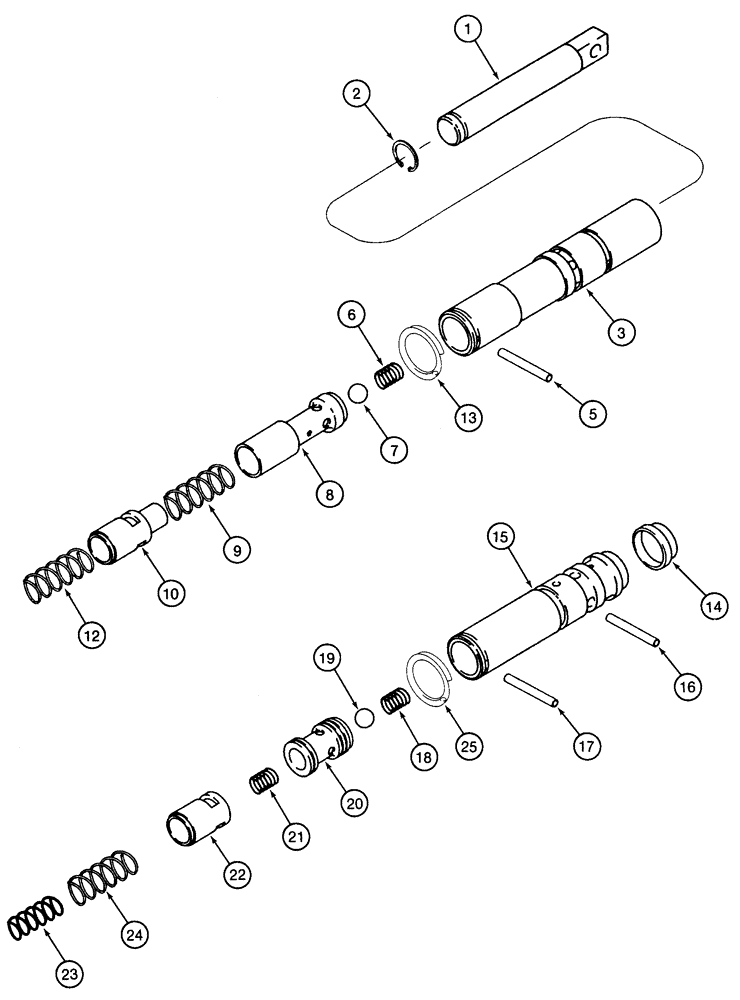

Запчасти Case 550H (6-12) - TRANSMISSION, VALVE, CONTROL - CLUTCH CUTOUT SPOOL, FORWARD/REVERSE MODULATION SPOOL (06) - POWER TRAIN

REF

INSTRUCTION

Transmission Includes : 1 - 25 For Additional Components See Figure(s) : 6-04 - 6-11, 7-03

1шт.

189265A2

SPOOL

Clutch Cutout Consists Of : 1 - 13

2шт.

1

138436A1

ROD

clutch cutout spool

1шт.

2

G107637

RING, SNAP

RING SNAP Retaining, clutch cutout spool

1шт.

189269A2

SPOOL

Consists Of : 3 - 13, clutch cutout

1шт.

3

NSS

NOT SOLD SEPARAT

Spool, clutch cutout

1шт.

5

37-1214

DOWEL,1/8" x 7/8"

Dowel 1/8 x 7/8, clutch cutout spool

1шт.

6

129700A1

SPRING

clutch cutout spool

1шт.

7

211-1012

BALL,3/8" Dia

3/8; 24,CRS, clutch cutout spool

1шт.

8

189267A1

SPOOL

clutch cutout

1шт.

9

189259A1

SPRING

Inner, clutch cutout spool

1шт.

10

189268A1

PISTON

clutch cutout spool

1шт.

12

121866A1

SPRING

Outer, clutch cutout spool

1шт.

13

102-1393

SNAP RING,#93, Ext, Spiral

Retaining No. 93, clutch cutout spool

1шт.

126430A3

SPOOL

Consists Of : 14 - 25, forward/reverse modulation

1шт.

14

121494A1

STOP

forward/reverse modulation spool

1шт.

15

126255A3

SLEEVE

forward/reverse modulation spool

1шт.

16

132923A1

PIN

Dowel 3 x 24 mm, forward/reverse modulation spool

1шт.

17

37-1214

DOWEL,1/8" x 7/8"

Dowel 1/8 x 7/8, forward/reverse modulation spool

1шт.

18

129700A1

SPRING

Check Valve, forward/reverse modulation spool

1шт.

19

211-1012

BALL,3/8" Dia

3/8; 24,CRS, forward/reverse modulation spool

1шт.

20

126252A1

SPOOL

forward/reverse modulation spool

1шт.

21

127427A1

SPRING

forward/reverse modulation spool

1шт.

22

121492A1

PISTON

forward/reverse modulation spool

1шт.

23

121870A1

SPRING

forward/reverse modulation spool

1шт.

24

121871A1

SPRING

forward/reverse modulation spool

1шт.

25

102-1393

SNAP RING,#93, Ext, Spiral

Retaining No. 93, forward/reverse modulation spool

1шт.
