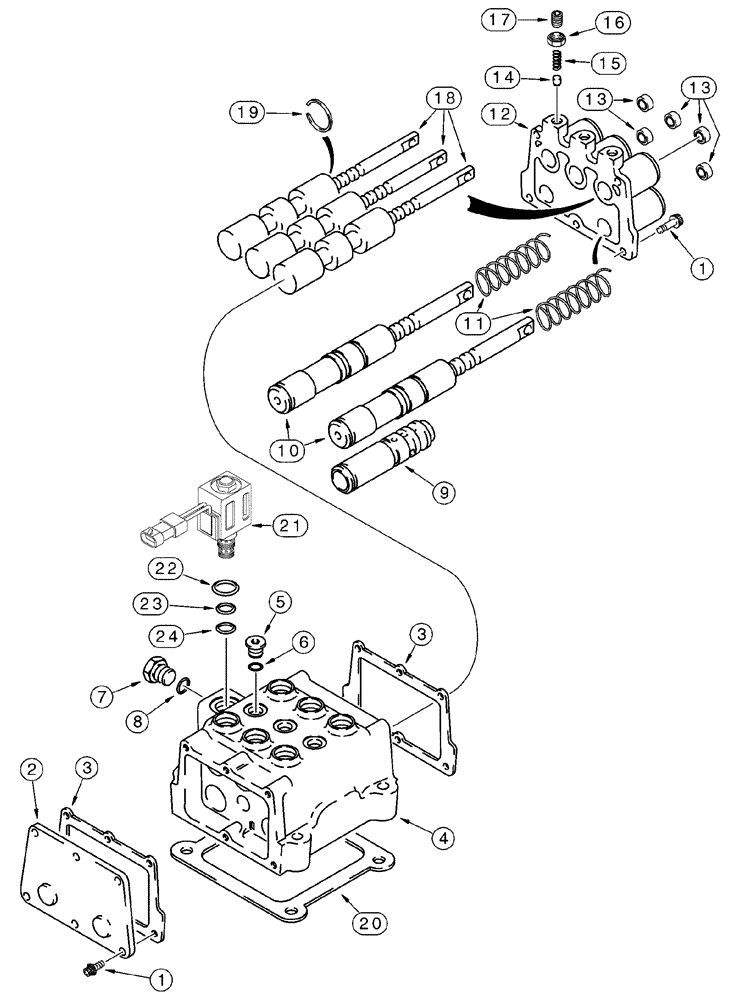

Запчасти Case 550H (6-11) - TRANSMISSION, VALVE, CONTROL (06) - POWER TRAIN

REF

INSTRUCTION

Transmission Includes : 1 - 24 For Complete Assembly See Figure(s) : 6-04 - 6-12, 7-03

1шт.

125588A4

VALVE

Control Consists Of : 1 - 24, Seal Kit Service: 238107A1

1шт.

1

193-511

HEX SOC SCREW,Sems, 1/4"-28 x 5/8"

Bolt, Flange, 1/4 NF x 5/8 With Lock Washer

11шт.

2

R21384

COVER

Rear

1шт.

3

35665

GASKET

Cover

2шт.

4

NSS

NOT SOLD SEPARAT

Body

1шт.

5

278548

PLUG,Hex, 7/16"-20 ORB

Incl 6

3шт.

6

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

7

86529630

PLUG,Hex Soc, 3/8"-24 ORB

Includes 8

3шт.

8

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

9

126430A3

SPOOL

Forward/Reverse Modulation See Figure(s) : 6-12

1шт.

10

189265A2

SPOOL

Clutch Cutout See Figure(s) : 6-56

2шт.

11

121865A1

SPRING

2шт.

1542672C1

COVER

Front Consists Of : 12, 13

1шт.

12

NSS

NOT SOLD SEPARAT

Cover

1шт.

13

G105700

OIL SEAL

Oil

5шт.

14

71120

VALVE

Pin, Dowel

3шт.

15

1542824C1

SPRING

3шт.

16

131-407

LOCK NUT,Pal, 3/8" - 16, 0.145" High

3шт.

17

G104208

SET SCREW

3/8 x 1/2 Sealant Coated

3шт.

18

G107659

ROD

Spool Assy Shift Control Includes : 19

3шт.

19

G107637

RING, SNAP

RING SNAP Retaining

1шт.

20

1986527C1

GASKET

Mounting Control Valve Base

1шт.

349296A1

CARTRIDGE

Valve, 12 V Brake Consists Of : 21 - 24

1шт.

21

NSS

NOT SOLD SEPARAT

Valve, Solenoid 12 V

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

23

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

24

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

25

238107A1

SEAL KIT

Incl, 2, 6, 8, 13, 15, 22 - 24

1шт.
