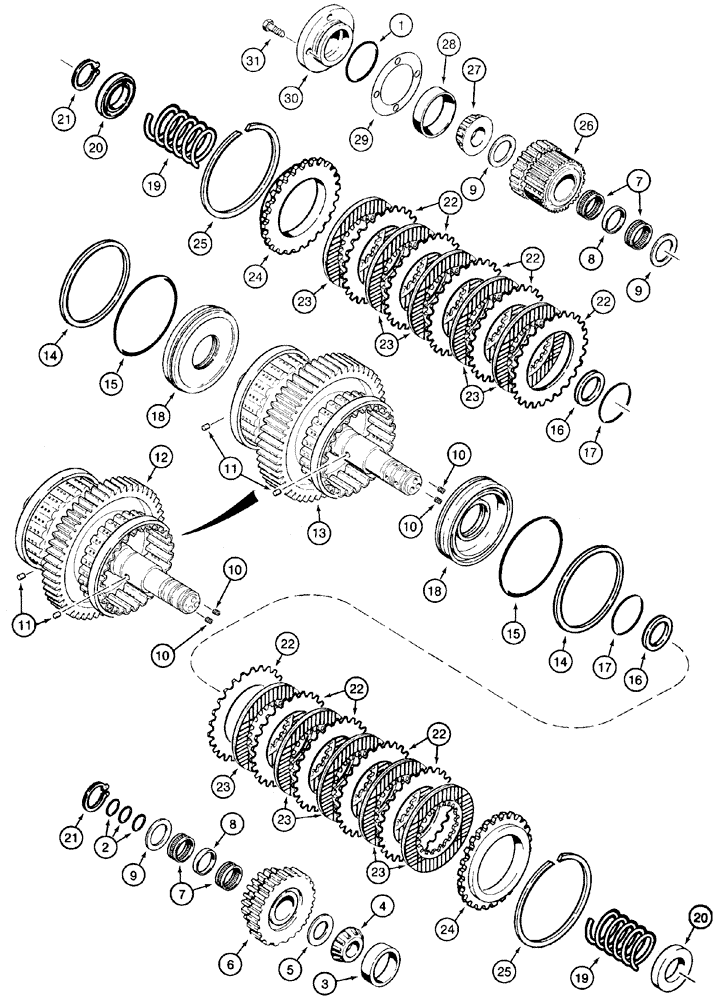

Запчасти Case 550H (6-07) - TRANSMISSION, CLUTCHES, HIGH/LOW AND SHAFTS (06) - POWER TRAIN

REF

INSTRUCTION

Transmission Includes : 1 - 31 For Complete Assembly See Figure(s) : 6-04,6-12, 7-03

1шт.

1

238-5151

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

2шт.

2

A175509

SEALING RING,32.81mm ID x 36.13mm OD x 2.38mm Thk

SEALRING Seal

6шт.

3

G100312

BEARING, CUP,85mm OD x 19.05mm W

Cup

2шт.

4

3131513R91

ROLLER BEARING

Cone

2шт.

5

A175396

WASHER, THRUST,36.6mm ID x 60mm OD x 2.3mm Thk

2шт.

6

1997063C1

GEAR

29/40 T

2шт.

7

A178460

NEEDLE BEARING,44.99mm ID x 50.02mm OD x 16.8mm W

Needle

8шт.

8

A188194

RING,46.25mm ID x 49.8mm OD x 6.38mm Thk

4шт.

9

A188192

WASHER, THRUST,45.05mm ID x 64.94mm OD x 2.05mm Thk

6шт.

1997047C2

CLUTCH HOUSING

High - Low With Shaft and Gear Left Hand Consists Of : 10 - 12, 14 - 25

1шт.

1997046C2

CLUTCH HOUSING

High - Low With Shaft and Gear Right Hand Consists Of : 10, 11, 13 - 25

1шт.

10

83-3446

SET SCREW,Hex Soc, 7/16"-14 x 3/8"

Set 7/16 x 3/8

2шт.

11

38-3605

PIN,3/32" x 5/16", Coiled

2шт.

1997047C2

CLUTCH HOUSING

Left Hand

1шт.

1997046C2

CLUTCH HOUSING

Right Hand

1шт.

12

1348993C2

SHAFT

51 T Left Hand

1шт.

13

1348991C2

SHAFT

51 T Right Hand

1шт.

14

A158051

SEAL,116.49mm ID x 123.91mm OD x 3.07mm Thk

2шт.

15

238-5156

O-RING,0.103" Thk x 4.237" ID, -156, Cl 5, 75 Duro

2шт.

16

A159297

SEAL,47.2mm ID x 54.1mm OD x 3.1mm Thk

SEALRING

2шт.

17

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2шт.

18

A159292

PISTON

2шт.

19

A188080

SPRING

2шт.

20

A188044

RETAINER

2шт.

21

100-16175

SNAP RING,#175, Ext

2шт.

22

A175806

PLATE

Clutch Separator

10шт.

23

A188946

DRIVE PLATE,81.9mm ID x 127mm OD x 2.6mm Thk

Clutch Friction

10шт.

24

137720A1

PLATE

Clutch

2шт.

25

139987A1

SNAP RING,126.34mm ID x 142.4mm OD x 2.82mm Thk

Retaining

2шт.

26

1997064C1

GEAR

20/40 T Low Clutch

2шт.

27

G100313

BEARING CONE,34.92mm ID x 20.64mm W

Bearing

2шт.

28

A50264

BEARING CUP,72mm OD x 14.2mm W

Cup

2шт.

29

G103645

SHIM,.003" Thk

(0.076 mm)

1шт.

29

G103647

SHIM,.010" Thk

(0.254 mm)

1шт.

29

1348980C1

BLOCK

0,504 mm (0,02 in)

1шт.

30

G103644

COVER ASSY

2шт.

31

107-9620

LOCK BOLT,Locking, 3/8"-16 x 1 1/4", G8

8шт.

138971A1

SEAL KIT

Package, Includes : 1, 2, 14 - 17, 29 For Additional Components See Figure(s) : 6-04 , 6-09

1шт.
